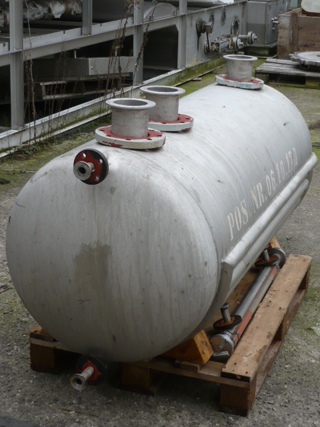

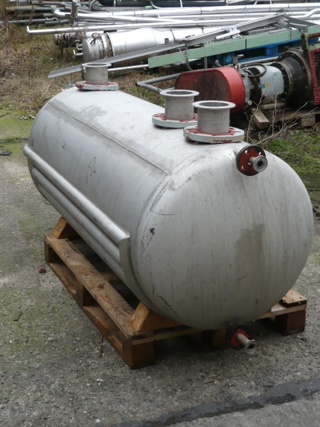

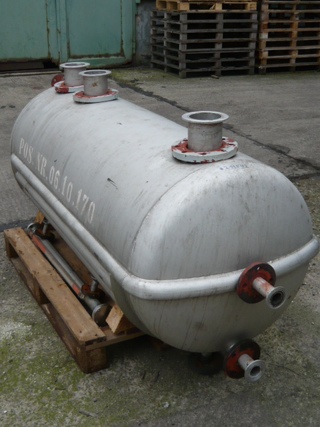

Stainless Steel 316 Tank - IPP# 212902

Type: Tank

Manufacturer: WAFAG

Condition: Used

Material: Stainless Steel 316L

Capacity (Design): 160 L (42.3 gallons)

Orientation: Horizontal

• Jacketed receiver 1/2 pipe coil jacket on bottom 1/2 of tank.

Diameter: 450 mm (17.7 in). Straight-side Length: 1,005 mm (39.6 in). Internal Pressure: 2 bar (29 psi). Internal Temperature: 200 °C (392 °F). Jacket Type: Half Pipe/Limpet. Jacket Material: Stainless Steel Other. Jacket Pressure: 6 bar (87 psi). Jacket Temperature: 200 °C (392 °F). Vacuum: Yes.

Type: Tank

Manufacturer: Fr. Maurer Ag

Condition: Used

Material: Stainless Steel 316L

Capacity (Design): 630 L (166.4 gallons)

Orientation: Horizontal

• Jacketed receiver

Diameter: 700 mm (27.6 in). Straight-side Length: 1,584 mm (62.4 in). Internal Pressure: 2 bar (29 psi). Internal Temperature: 200 °C (392 °F). Jacket Type: Half Pipe/Limpet. Jacket Material: Stainless Steel 316L. Jacket Pressure: 4.8 bar (69.6 psi). Jacket Temperature: 200 °C (392 °F).

Type: Tank

Manufacturer: Inox Maurer AG

Condition: Used

Material: Stainless Steel 316L

Capacity (Design): 2,500 L (660.4 gallons)

Orientation: Horizontal

• Jacketed receiver

Diameter: 1,100 mm (43.3 in). Straight-side Length: 2,536 mm (99.8 in). Internal Pressure: 2 bar (29 psi). Internal Temperature: 200 °C (392 °F). Jacket Type: Half Pipe/Limpet. Jacket Material: Stainless Steel 316L. Jacket Pressure: 6 bar (87 psi). Jacket Temperature: 200 °C (392 °F). Vacuum: Yes. Support: Other.

Type: Tank

Manufacturer: Inox Maurer AG

Condition: Used

Material: Stainless Steel 316L

Capacity (Design): 2,500 L (660.4 gallons)

Orientation: Horizontal

• Jacketed receiver-1.4435 s/steel 1/2 pipe coil jacket on the bottom half of the tank.

Diameter: 1,100 mm (43.3 in). Straight-side Length: 2,536 mm (99.8 in). Internal Pressure: 2 bar (29 psi). Internal Temperature: 200 °C (392 °F). Jacket Type: Half Pipe/Limpet. Jacket Material: Stainless Steel Other. Jacket Pressure: 6 bar (87 psi). Jacket Temperature: 200 °C (392 °F). Vacuum: Yes. Support: Other.
