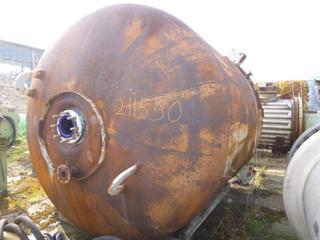

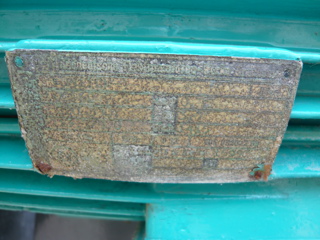

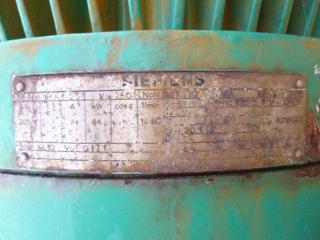

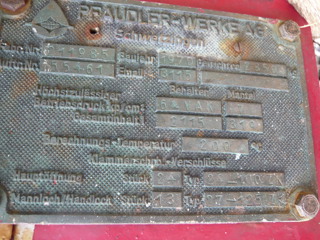

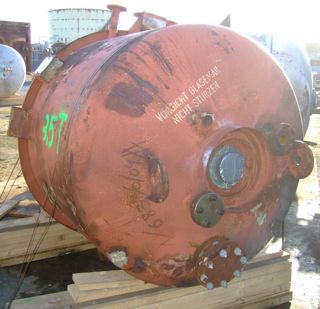

agitated jacketed reactor, Order number: 50970 Volume of pressure jacket: 331 liter Belt driven by a 5,5kW electrical motor, Motor type 3KT132SA-2, 3~/50Hz/380-660V/2.870rpm, ExdeIIBT4
Type: Reactor
Subtype: Batch-Type Agitated

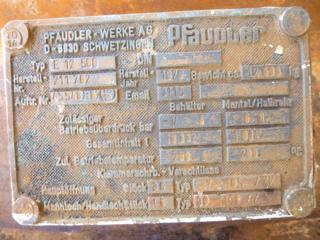

Manufacturer: Pfaudler
Model: E
Condition: Used
Material: Glasslined
Capacity (Design): 2,115 L (558.7 gallons)
Internal Pressure: 6 bar (87 psi)
internal pressure rated by -1/6bar @ 200 degrees C (total volume 2115 liter) jacket pressure rated by 7bar @ 200 degrees C (total volume 319liter)
Internal Full Vacuum: Yes. Internal Temperature: 200 °C (392 °F). Jacket Pressure: 7 bar (101.5 psi). Jacket Temperature: 200 °C (392 °F). Agitation: Yes. Diameter: 1,200 mm (47.2 in). Straight Side Length: 1,400 mm (55.1 in).

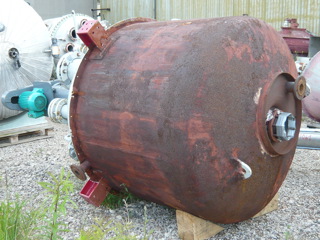

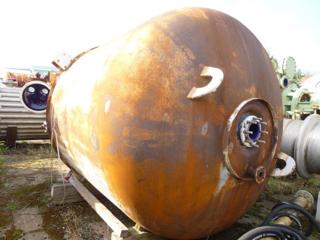

Type: Reactor
Subtype: Batch-Type Agitated
Manufacturer: Pfaudler
Model: E
Condition: Used
Material: Glasslined
Capacity (Design): 13,332 L (3,522 gallons)
Internal Pressure: 6 bar (87 psi)

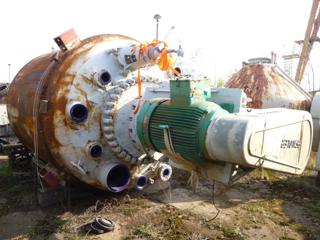

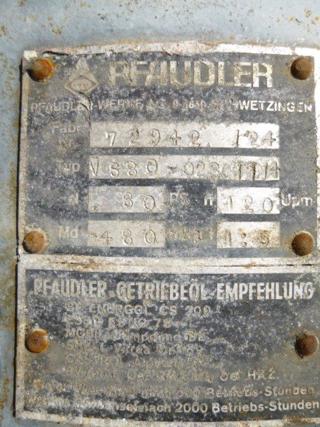

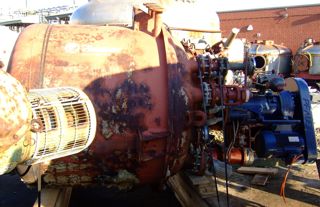

Jacket volume: 1034 liters VS80 Pfaudler drive, 120 rpm output, belt driven by a 44KW, 50 hz motor. mechanical seal on shaft with lubricator pump.
Internal Full Vacuum: Yes. Internal Temperature: 200 °C (392 °F). Jacket Pressure: 6.9 bar (100.1 psi). Jacket Temperature: 200 °C (392 °F). Agitation: Yes. Support Type: Lugs.

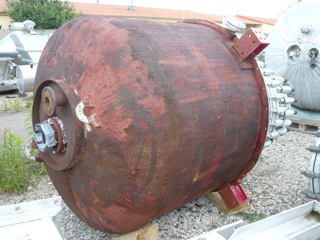

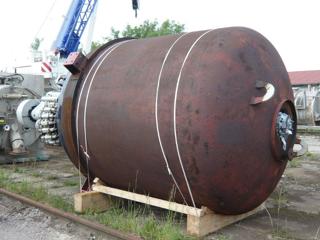

Type: Reactor
Subtype: Batch-Type Agitated
Manufacturer: Pfaudler
Model: E
Condition: Used
Material: Glasslined
Capacity (Design): 13,332 L (3,522 gallons)
Internal Pressure: 6 bar (87 psi)

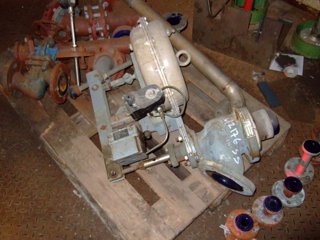

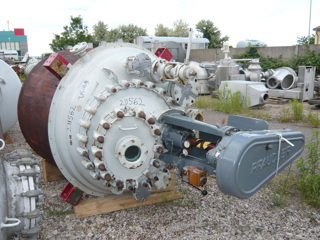

Total jacket volume: 1034 liters With VS80 Pfaudler drive, 100 u/min, belt driven by a 44 KW, 50 cycle motor. Unit includes a pump for the mechanical seal. Weight 12,600 kg
Internal Full Vacuum: Yes. Internal Temperature: 200 °C (392 °F). Jacket Pressure: 6.9 bar (100.1 psi). Jacket Temperature: 200 °C (392 °F). Agitation: Yes. Diameter: 2,500 mm (98.4 in). Straight Side Length: 3,500 mm (137.8 in). Support Type: Lugs.

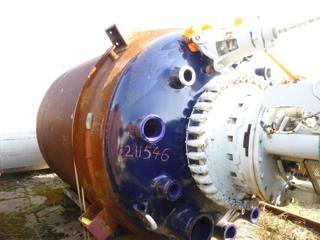

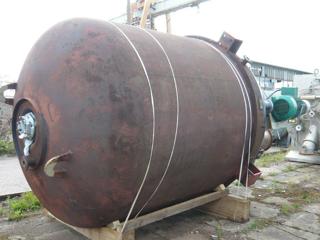

Type: Reactor
Subtype: Batch-Type Agitated
Manufacturer: Pfaudler
Model: E
Condition: Used
Material: Glasslined
Capacity (Design): 2,115 L (558.7 gallons)
Internal Pressure: 6 bar (87 psi)

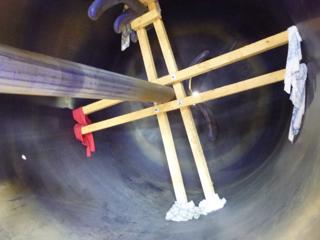

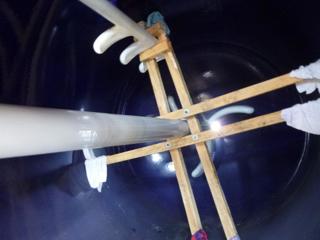

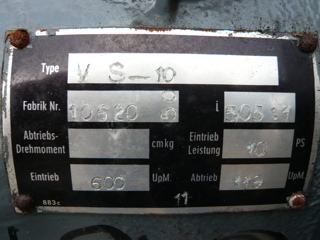

Jacket volume: 319 liters, Glass type: WWG-9115, 1.4m diameter x 1684mm top opening to bottom outlet, VS10 agitator drive, belt driven by 4/6 kw, 3/50/500 volt, 722/1450 rpm EExell Atex 1098/34 motor, shaft speed 60-120 rpm, mechanical seal with lubricator, (1) beavertail baffle, TUV and CE certified
Internal Full Vacuum: Yes. Internal Temperature: 200 °C (392 °F). Jacket Pressure: 6 bar (87 psi). Jacket Temperature: 200 °C (392 °F). Orientation: Vertical. Agitation: Yes. Diameter: 1,400 mm (55.1 in). Straight Side Length: 1,684 mm (66.3 in). Support Type: Lugs.
