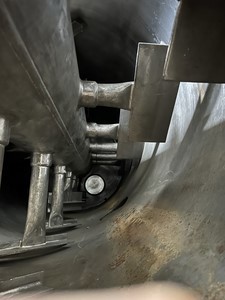

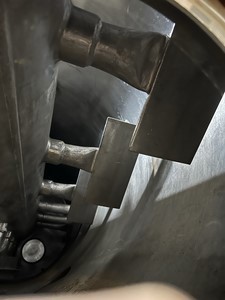

Rotary Vacuum Paddle Dryer with heated shaft. Vessel rated for Full vacuum internal 316SS internals SS 1/2 pipe coil jacket one head bolted dished, one head welded dished. Unit has approx. 12" diameter heated shaft with paddle agitator blades. Shaft is direct coupled to a gear reducer 3/60/230/460 volt Openings include: (1) 18" Top, (1) 12" x 16" end port with hinged cover, Bottom center discharge.
Type: Dryer-Rotary Vacuum
Manufacturer: Buss AG Basel Schwein
Model: DR-62
Condition: Used
Material: Stainless Steel 316
Capacity Design: 2.8 m3 (100 ft3)
Capacity Working: 2.5 m3 (90 ft3)

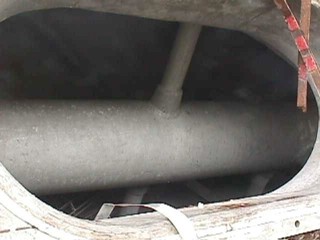

Rotary Vacuum Paddle Dryer with heated shaft. Vessel rated for Full vacuum internal 316SS internals, SS 1/2 pipe coil jacket. one head bolted dished, one head welded dished. Unit has approx. 12" diameter heated shaft with paddle agitator blades. Shaft is direct coupled to a gear reducer motor3/60/230/460 volt Openings inlcude: (1) 18" Top, (1) 12" x 16" end port with hinged cover, Bottom center discharge.
Diameter: 1,219 mm (48 in). Length: 3,658 mm (144 in). Height: 1,422 mm (56 in). Orientation: Horizontal. Jacket Material: Stainless Steel Other. Jacket Pressure: 4.1 bar (60 psi). Jacket Type: Half Pipe/Limpet.
Type: Dryer-Rotary Vacuum
Manufacturer: Berthier
Model: S 542
Condition: Used
Material: Stainless Steel 316
Capacity Design: 8.3 m3 (293.1 ft3)
Capacity Working: 7.5 m3 (264.9 ft3)

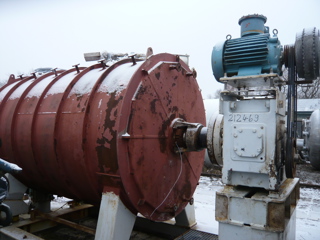

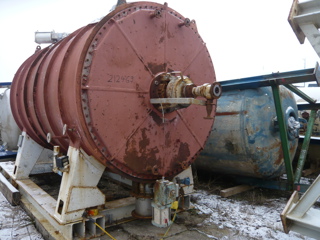

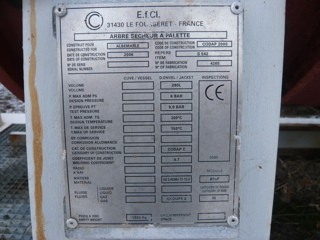

jacketed vacuum Paddle Dryer with carbon steel jacket internal pressure -1/0.5bar @ 130 degrees C (8.300liter) jacket pressure 6 bar @ 200 degree C (280 liter) shaft cored for steam 18.5kW/3~/50Hz/230-400V/465rpm Motor
Diameter: 1,895 mm (74.6 in). Length: 3,500 mm (137.8 in). Height: 2,530 mm (99.6 in). Temperature: 130 °C (266 °F). Pressure: 0.5 bar (7.3 psi). Shaft Cored and National Board Stamped: Yes. Jacket Material: Carbon Steel. Jacket Pressure: 6 bar (87 psi). Jacket Temperature: 200 °C (392 °F).
Type: Dryer-Rotary Vacuum
Manufacturer: Stokes
Model: 900-59-125
Condition: Used
Material: Stainless Steel 316
Capacity Design: 7 m3 (247.2 ft3)
Diameter: 1,219 mm (48 in)

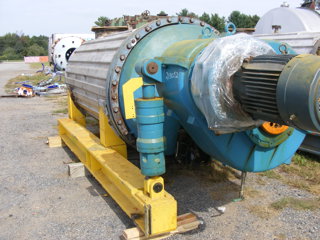

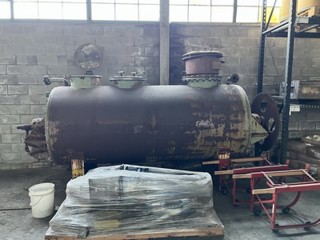

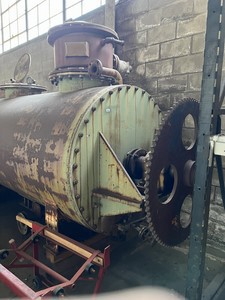

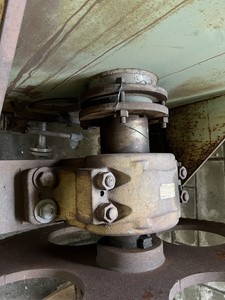

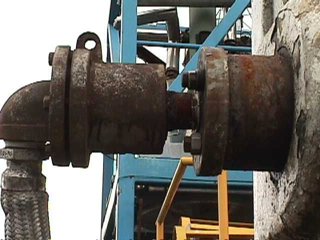

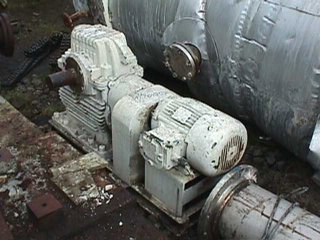

jacketed rotary vacuum dryer 3/50/380 volt Cleveland 63-55:1 ratio 3.8 HP, 1750 rpm gearbox shaft cored for steam heating, no national board, rated 50 psi @ 300 degrees F (1-straight side and 1-each end) Rotary union joint, outboard bearings. Unit with dust collector. Openings: top (2) 3' x 18 1/2" hinged access covers with counter balanced mechanism, 2-12"; end 1-8"; bottom 1-10" with manual open/close mechanism; jacket 4-6", 4-2", 4-1", 4-3/4"; shaft 1-2", 1-1 1/2".
Length: 6,096 mm (240 in). Temperature: 148.9 °C (300 °F). Shaft Cored and National Board Stamped: Yes. Orientation: Horizontal. Operational Mode: Batch. Agitation: Yes. Dust Collection: Yes. Jacket Material: Carbon Steel. Jacket Pressure: 3.4 bar (50 psi). Jacket Temperature: 148.9 °C (300 °F).
Type: Dryer-Rotary Vacuum

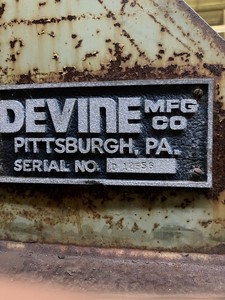

Manufacturer: Devine
Condition: Used
Material: Stainless Steel 316
Capacity Design: 2.8 m3 (100 ft3)
Capacity Working: 1.98 m3 (70 ft3)

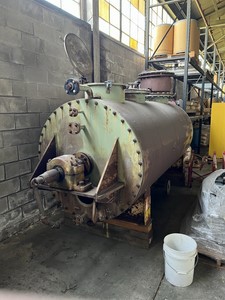

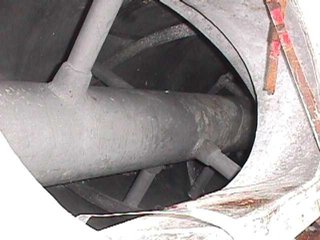

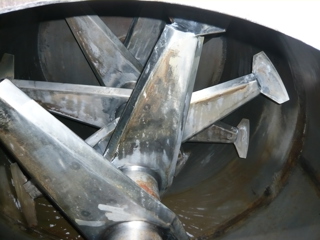

Rotary vacuum dryer Vessel rated for Full vacuum 12.5" diameter cored shaft with 24 fixed plows. Outboard bearings with packing glands.
Diameter: 1,219 mm (48 in). Length: 3,048 mm (120 in). Shaft Cored and National Board Stamped: Yes. Orientation: Horizontal. Agitation Seal Type: Packing. Jacket Pressure: 2.4 bar (35 psi). Jacket Temperature: 104.4 °C (220 °F).
