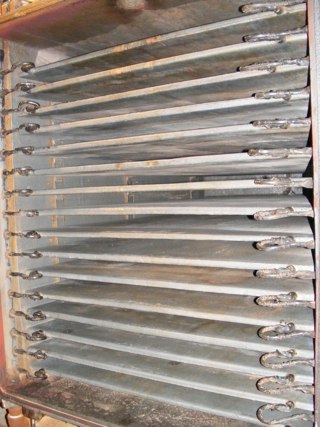

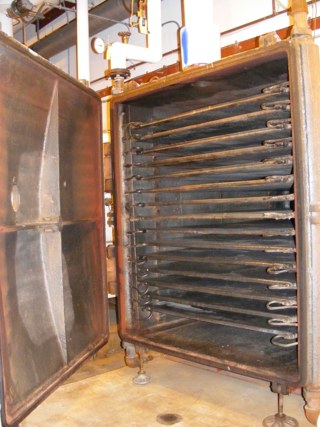

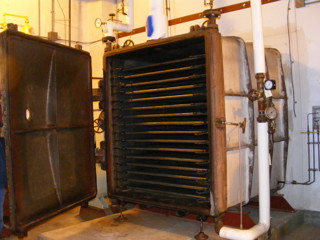

Devine vinyl coated shelf dryer Shelf temperature estimated ~212° F Unit has (16) coated cored shelves, 58" wide x 79" long on 3" spacing. Cast Iron housing with internal coating, Ceilcoat Flakeline 2226F, hinged doors on the front and back of chamber, Each door has 6" sight glasses on the doors. Swing bolt closers on the doors.
Type: Dryer-Shelf
Manufacturer: Devine
Condition: Used
Material: Lined
Heat Transfer Surface Area: 47.3 m² (509 ft²)
Vacuum Rated: Yes
Devine vinyl coated shelf dryer
Shelf temperature estimated ~212° F
58" wide x 79" long on 3" spacing.

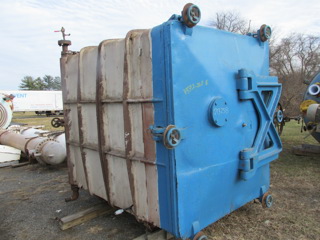

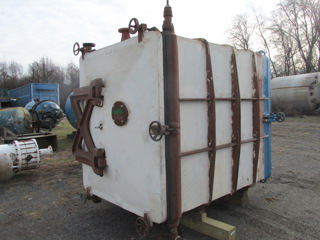

each shelf designed for liquid heat though a common manifold. Cast Iron housing with internal coating, Ceilcoat Flakeline 2226F, hinged doors on the front and back of chamber, chamber bolts together in center.
Each door has 6" sight glasses on the doors. Swing bolt closers on the doors.
Number of Shelves: 16. Shelf Length: 2,007 mm (79 in). Shelf Width: 1,473 mm (58 in). Shelf Pressure: 2.1 bar (30 psi). Temperature: 100 °C (212 °F).
Type: Dryer-Shelf
Manufacturer: Devine
Condition: Used
Material: Lined
Heat Transfer Surface Area: 47.3 m² (509 ft²)
Vacuum Rated: Yes
vinyl coated shelf dryer. Shelf temperature estimated ~212° F 58" wide x 79" long on 3" spacing. Cast Iron housing with internal coating, Ceilcoat Flakeline 2226F, hinged doors on the front and back of chamber, Chamber bolts together in center. Each door has 6" sight glasses on the doors. Swing bolt closers on the doors.
Number of Shelves: 16. Shelf Length: 2,007 mm (79 in). Shelf Width: 1,473 mm (58 in). Shelf Pressure: 2.1 bar (30 psi). Temperature: 100 °C (212 °F).
Type: Dryer-Shelf
Manufacturer: Devine
Condition: Used
Material: Stainless Steel 304
Heat Transfer Surface Area: 19.2 m² (207 ft²)
Vacuum Rated: Yes

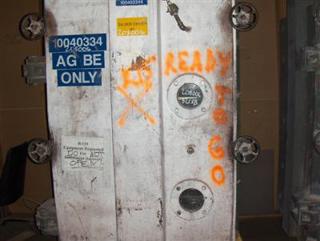

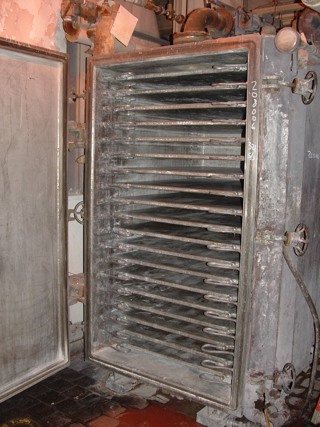

Shelf Dryer Chamber rated FV, with 3" spacing between shelves. (18) usable shelves. Hinged front door with (2) sight glasses, hand wheel closers.
Number of Shelves: 18. Shelf Length: 1,067 mm (42 in). Shelf Width: 990.6 mm (39 in). Shelf Pressure: 2.1 bar (30 psi). Shelf Temperature: 148.9 °C (300 °F). Chamber Height: 1,829 mm (72 in). Chamber Width: 1,016 mm (40 in). Chamber Length: 1,245 mm (49 in). Temperature: 148.9 °C (300 °F).
Type: Dryer-Shelf
Manufacturer: Devine
Condition: Used
Material: Stainless Steel 304
Heat Transfer Surface Area: 19.2 m² (207 ft²)
Vacuum Rated: Yes

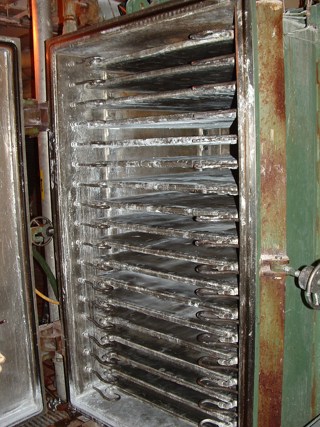

Rated FV @ 300 degrees on the housing,, with 3" spacing between shelves. Left hinged front door with (2) sight glasses, hand wheel closers. Complete with Stainless steel product trays, 28" W x 43" L x 2" H. Weight 9800 lbs.
Number of Shelves: 18. Shelf Length: 1,092 mm (43 in). Shelf Width: 990.6 mm (39 in). Shelf Pressure: 2.1 bar (30 psi). Shelf Temperature: 148.9 °C (300 °F). Chamber Height: 1,829 mm (72 in). Chamber Width: 1,016 mm (40 in). Chamber Length: 1,245 mm (49 in). Orientation: Vertical. Temperature: 148.9 °C (300 °F). Number of Pans: 36. Pan Capacity: 1.43 m3 (50.4 ft3).
