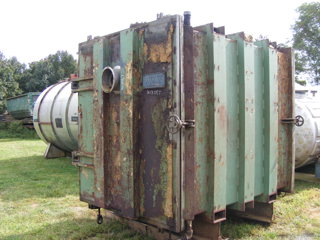

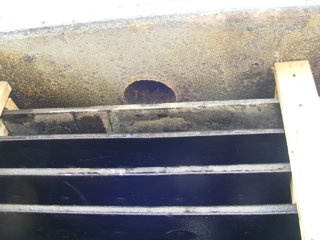

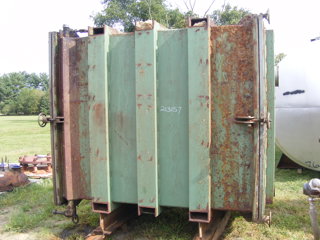

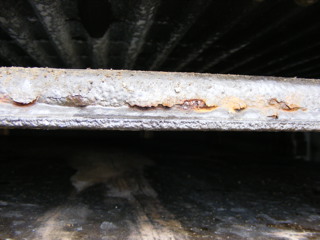

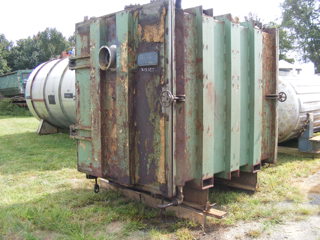

Devine vinyl coated shelf dryer
Shelf temperature estimated ~212° F
58" wide x 79" long on 3" spacing.

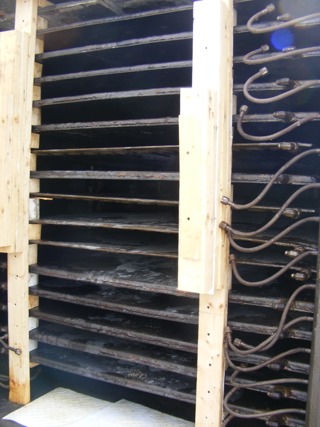

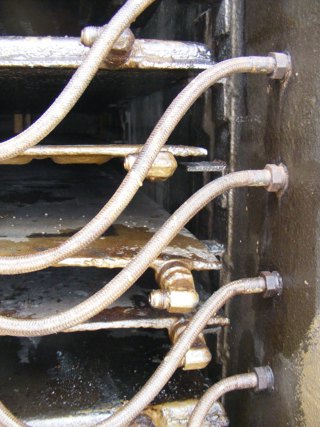

each shelf designed for liquid heat though a common manifold. Cast Iron housing with internal coating, Ceilcoat Flakeline 2226F, hinged doors on the front and back of chamber, chamber bolts together in center.

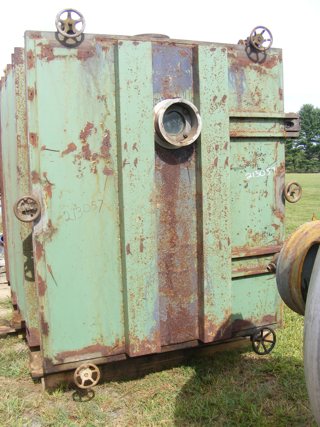

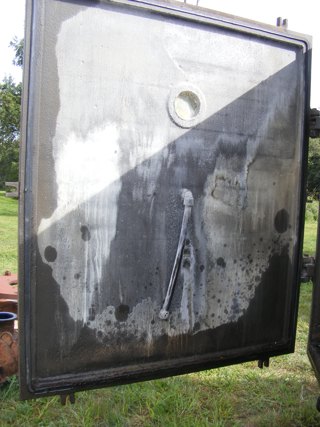

Each door has 6" sight glasses on the doors. Swing bolt closers on the doors.
Type: Dryer-Shelf
Manufacturer: Devine
Condition: Used
Material: Lined
Heat Transfer Surface Area: 47.3 m² (509 ft²)
Vacuum Rated: Yes
Devine vinyl coated shelf dryer Shelf temperature estimated ~212° F Unit has (16) coated cored shelves, 58" wide x 79" long on 3" spacing. Cast Iron housing with internal coating, Ceilcoat Flakeline 2226F, hinged doors on the front and back of chamber, Each door has 6" sight glasses on the doors. Swing bolt closers on the doors.
Number of Shelves: 16. Shelf Length: 2,000 mm (79 in). Shelf Width: 1,450 mm (58 in). Shelf Pressure: 2.1 bar (30 psi). Temperature: 100 °C (212 °F).
Type: Dryer-Shelf
Manufacturer: Devine
Condition: Used
Material: Lined
Heat Transfer Surface Area: 47.3 m² (509 ft²)
Vacuum Rated: Yes
vinyl coated shelf dryer. Shelf temperature estimated ~212° F 58" wide x 79" long on 3" spacing. Cast Iron housing with internal coating, Ceilcoat Flakeline 2226F, hinged doors on the front and back of chamber, Chamber bolts together in center. Each door has 6" sight glasses on the doors. Swing bolt closers on the doors.
Number of Shelves: 16. Shelf Length: 2,000 mm (79 in). Shelf Width: 1,450 mm (58 in). Shelf Pressure: 2.1 bar (30 psi). Chamber Height: 228.6 mm (9 in). Chamber Width: 1,850 mm (72 in). Chamber Length: 25.4 mm (1 in). Temperature: 100 °C (212 °F).
Type: Dryer-Shelf
Manufacturer: Devine
Condition: Used
Material: Stainless Steel 304
Heat Transfer Surface Area: 19.2 m² (207 ft²)
Vacuum Rated: Yes
Shelf Dryer Chamber rated FV, with 3" spacing between shelves. (18) usable shelves. Hinged front door with (2) sight glasses, hand wheel closers.
Number of Shelves: 18. Shelf Length: 1,050 mm (42 in). Shelf Width: 991 mm (39 in). Shelf Pressure: 2.1 bar (30 psi). Shelf Temperature: 148.9 °C (300 °F). Chamber Height: 1,850 mm (72 in). Chamber Width: 1,000 mm (40 in). Chamber Length: 1,250 mm (49 in). Temperature: 148.9 °C (300 °F).
Type: Dryer-Shelf
Manufacturer: Devine
Condition: Used
Material: Stainless Steel 304
Heat Transfer Surface Area: 19.2 m² (207 ft²)
Vacuum Rated: Yes
Rated FV @ 300 degrees on the housing,, with 3" spacing between shelves. Left hinged front door with (2) sight glasses, hand wheel closers. Complete with Stainless steel product trays, 28" W x 43" L x 2" H. Weight 9800 lbs.
Number of Shelves: 18. Shelf Length: 1,100 mm (43 in). Shelf Width: 991 mm (39 in). Shelf Pressure: 2.1 bar (30 psi). Shelf Temperature: 148.9 °C (300 °F). Chamber Height: 1,850 mm (72 in). Chamber Width: 1,000 mm (40 in). Chamber Length: 1,250 mm (49 in). Orientation: Vertical. Temperature: 148.9 °C (300 °F). Number of Pans: 36. Pan Capacity: 1.43 m3 (50.4 ft3).
