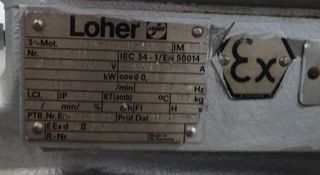

top load bottom discharge machine #9600 12mm thick basket min speed 80 rpm EX motor Hastelloy C feed pipe Hastelloy C cake gauge Hastelloy wash pipe rubber lined single motion hydraulic driven plow with a Hastelloy C removeable blade driven by a hydraulic powerpack with a 1.5 kw, 3/50/500 volt, 1415 rpm EXd3nG5 motor, local electric panel

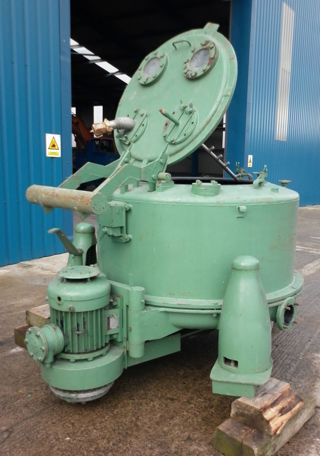

Type: Centrifuge-Basket
Subtype: Manual Discharge-Top
Manufacturer: Krauss Maffei
Condition: Refurbished/Rebuilt
Material: Rubberlined
Basket Diameter: 1,219 mm (48 in)
Basket Depth: 508 mm (20 in)
Openings: cover 2-6" (150mm) sight glasses feed pipe 2 3/4" (68mm); wash pipe 3/4" (20mm) with (4) nozzles filtrate 2-4 3/4" (120mm) Handbrake Hinged cover 34" (862mm) dia.meter (*)
Motor Power: 4.8 kW (6.5 HP). Speed-RPM Maximum: 850. Load Weight: 259.5 kg (572 lb).

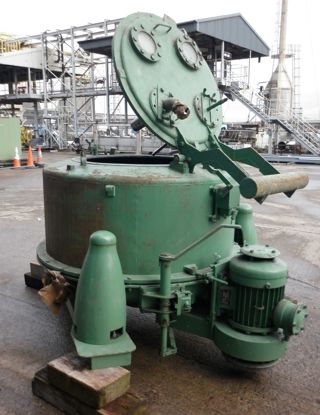

Type: Centrifuge-Basket
Subtype: Manual Discharge-Top
Manufacturer: Krauss Maffei
Condition: Refurbished/Rebuilt
Material: Rubberlined
Basket Diameter: 1,219 mm (48 in)
Basket Depth: 508 mm (20 in)
XP motor Openings: cover 2-6" (150mm) sight glasses 3/4" (20mm), with 4-nozzles; filtrate 2-4 3/4" (120mm); curb 1-4" (100mm). Handbrake. Hinged cover 34" (862mm) diameter with counterbalance weight. (*)
Motor Power: 4.8 kW (6.5 HP). Speed-RPM Maximum: 850. Load Weight: 259.5 kg (572 lb).
Type: Centrifuge-Basket
Subtype: Manual Discharge-Top
Manufacturer: Krauss Maffei

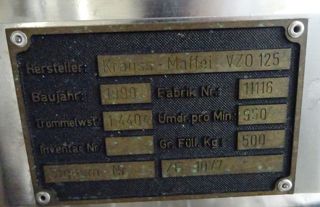

Model: VZO 125/3.2
Condition: Used
Material: Stainless Steel 316
Basket Diameter: 1,250 mm (49.2 in)
Basket Depth: 800 mm (31.5 in)
gas tight design (0.5 bar overpressure) pressure -1/2 bar @ 135 degrees C, 12mm thick basket 3/50/380-660 volt cake is discharged via a pneumatic thermosyphon peeling pipe/plow and also pressurised gas is introduced into the centrifuge which enables the solids to discharge upwards, Thermosyphon driven by its own powerpack with a 1.5kw, 3/50/380 volt, 1415 rpm EXde11CT4 motor, feed pipe, wash pipe with spray nozzles
Filtration Area: 3.2 m² (34.4 ft²). Motor Power: 30 kW (40.2 HP). Speed-RPM Maximum: 950. Load Weight: 614 kg (1,354 lb). Gas Tight: Yes.
Type: Centrifuge-Basket
Subtype: Manual Discharge-Top
Manufacturer: Krauss Maffei

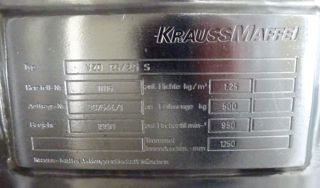

Model: VZO 125/2.5 S
Condition: Used
Material: Stainless Steel 316
Basket Diameter: 1,250 mm (49.2 in)
Basket Depth: 630 mm (24.8 in)
pressure -1/2 bar @ 135 degrees C, 12mm thick basket cake is discharged via a pneumatic thermosyphon peeling pipe/plow and also pressurised gas is introduced into the centrifuge which enables the solids to discharge upwards, Thermosyphon driven by the same powerpack, feed pipe with spray nozzles.
Filtration Area: 2.5 m² (26.9 ft²). Motor Power: 30 kW (40.2 HP). Speed-RPM Maximum: 950. Load Weight: 500 kg (1,102 lb). Gas Tight: Yes.
