pressure -1/2 bar @ 135 degrees C, 12mm thick basket cake is discharged via a pneumatic thermosyphon peeling pipe/plow and also pressurised gas is introduced into the centrifuge which enables the solids to discharge upwards, Thermosyphon driven by the same powerpack, feed pipe with spray nozzles.
Type: Centrifuge-Basket
Subtype: Manual Discharge-Top
Manufacturer: Krauss Maffei
Model: VZO 125/3.2
Condition: Used
Material: Stainless Steel 316
Basket Diameter: 1,250 mm (49.2 in)
Basket Depth: 800 mm (31.5 in)
gas tight design (0.5 bar overpressure) pressure -1/2 bar @ 135 degrees C, 12mm thick basket 3/50/380-660 volt cake is discharged via a pneumatic thermosyphon peeling pipe/plow and also pressurised gas is introduced into the centrifuge which enables the solids to discharge upwards, Thermosyphon driven by its own powerpack with a 1.5kw, 3/50/380 volt, 1415 rpm EXde11CT4 motor, feed pipe, wash pipe with spray nozzles
Filtration Area: 3.2 m² (34.4 ft²). Motor Power: 30 kW (40.2 HP). Speed-RPM Maximum: 950. Load Weight: 614 kg (1,354 lb). Gas Tight: Yes.

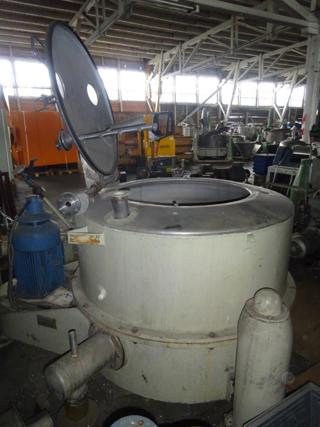

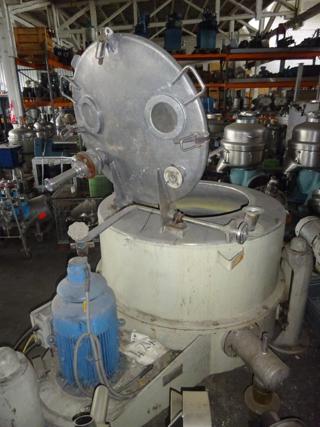

Type: Centrifuge-Basket
Subtype: Manual Discharge-Top
Manufacturer: Krauss Maffei
Model: PZO 120
Condition: Used
Material: Stainless Steel 316
Basket Diameter: 1,200 mm (47.2 in)
Basket Depth: 500 mm (19.7 in)
Full top cover opening 4.6/7 kW (5) spray nozzles 75mm feed pipe, 150mm filtrate outlet
Motor Power: 7 kW (9.4 HP).

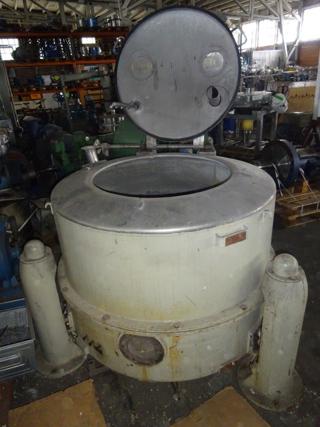

Type: Centrifuge-Basket
Subtype: Manual Discharge-Top
Manufacturer: Krauss Maffei
Model: DZU-125/3.2
Condition: Used
Material: Rubberlined
Basket Diameter: 1,250 mm (49.2 in)
Basket Depth: 800 mm (31.5 in)
top load bottom discharge machine #9600 12mm thick basket min speed 80 rpm EX motor Hastelloy C feed pipe Hastelloy C cake gauge Hastelloy wash pipe rubber lined single motion hydraulic driven plow with a Hastelloy C removeable blade driven by a hydraulic powerpack with a 1.5 kw, 3/50/500 volt, 1415 rpm EXd3nG5 motor, local electric panel
Filtration Area: 3.2 m² (34.4 ft²). Motor Power: 45 kW (60.3 HP). Speed-RPM Maximum: 850. Load Weight: 500 kg (1,102 lb). Controls: Yes.

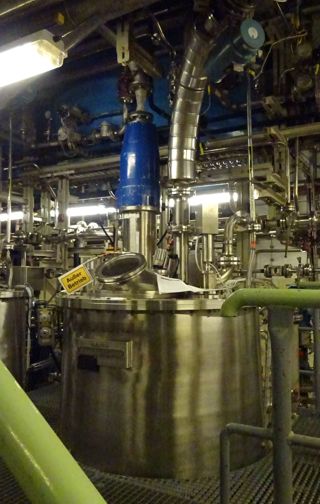

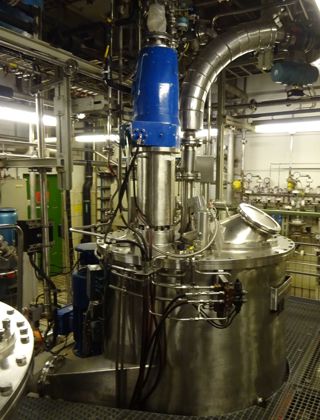

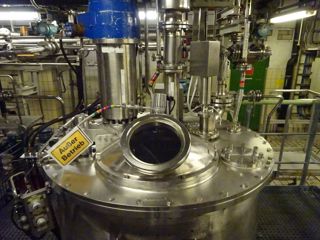

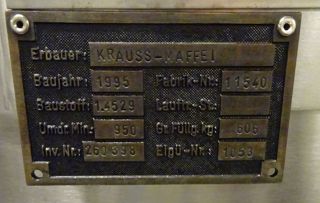

Type: Centrifuge-Basket
Subtype: Manual Discharge-Top
Manufacturer: Krauss Maffei
Model: VZO 125/3.2C
Condition: Used
Material: Alloy 926
Basket Diameter: 1,250 mm (49.2 in)
Basket Depth: 800 mm (31.5 in)
Alloy 926 (1.4529) stainless steel Ex motor with an electric converter 27kw, 3/50/400 volt 100-1000 rpm, Thermosyphon/plow driven by an 20 liter hydraulic powerpack, driven by 1.5kw, 3/50/380 volt, 1415 rpm Ex motor, cake is discharged via a pneumatic thermosyphon peeling pipe/plow and also pressurised gas is introduced into the centrifuge which enables the solids to discharge upwards, feed pipe with nozzles.
Filtration Area: 3.2 m² (34.4 ft²). Motor Power: 30 kW (40.2 HP). Speed-RPM Maximum: 950. Load Weight: 606 kg (1,336 lb). Gas Tight: Yes.
