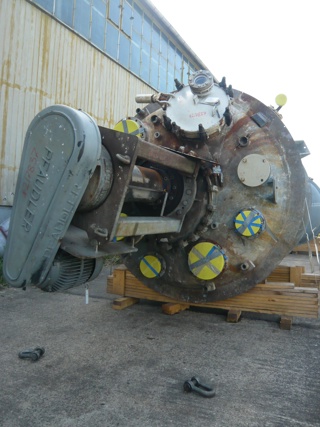

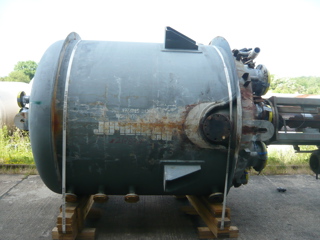

Glasslined Pfaudler RB-CE Batch-Type Agitated Reactor - IPP# 217836

  • Glasslined Pfaudler RB-CE Batch-Type Agitated Reactor - IPP# 217836 Glasslined Pfaudler RB-CE Batch-Type Agitated Reactor - IPP# 217836
  • Glasslined Pfaudler RB-CE Batch-Type Agitated Reactor - IPP# 217836 Glasslined Pfaudler RB-CE Batch-Type Agitated Reactor - IPP# 217836
  • Glasslined Pfaudler RB-CE Batch-Type Agitated Reactor - IPP# 217836 Glasslined Pfaudler RB-CE Batch-Type Agitated Reactor - IPP# 217836
  • Glasslined Pfaudler RB-CE Batch-Type Agitated Reactor - IPP# 217836 Glasslined Pfaudler RB-CE Batch-Type Agitated Reactor - IPP# 217836
  • Glasslined Pfaudler RB-CE Batch-Type Agitated Reactor - IPP# 217836 Glasslined Pfaudler RB-CE Batch-Type Agitated Reactor - IPP# 217836
  • Glasslined Pfaudler RB-CE Batch-Type Agitated Reactor - IPP# 217836 Glasslined Pfaudler RB-CE Batch-Type Agitated Reactor - IPP# 217836
  • Glasslined Pfaudler RB-CE Batch-Type Agitated Reactor - IPP# 217836 Glasslined Pfaudler RB-CE Batch-Type Agitated Reactor - IPP# 217836
  • Glasslined Pfaudler RB-CE Batch-Type Agitated Reactor - IPP# 217836 Glasslined Pfaudler RB-CE Batch-Type Agitated Reactor - IPP# 217836
  • Glasslined Pfaudler RB-CE Batch-Type Agitated Reactor - IPP# 217836 Glasslined Pfaudler RB-CE Batch-Type Agitated Reactor - IPP# 217836
  • Glasslined Pfaudler RB-CE Batch-Type Agitated Reactor - IPP# 217836 Glasslined Pfaudler RB-CE Batch-Type Agitated Reactor - IPP# 217836
  • Glasslined Pfaudler RB-CE Batch-Type Agitated Reactor - IPP# 217836 Glasslined Pfaudler RB-CE Batch-Type Agitated Reactor - IPP# 217836
  • Glasslined Pfaudler RB-CE Batch-Type Agitated Reactor - IPP# 217836 Glasslined Pfaudler RB-CE Batch-Type Agitated Reactor - IPP# 217836
  • Glasslined Pfaudler RB-CE Batch-Type Agitated Reactor - IPP# 217836 Glasslined Pfaudler RB-CE Batch-Type Agitated Reactor - IPP# 217836
  • Glasslined Pfaudler RB-CE Batch-Type Agitated Reactor - IPP# 217836
  • Glasslined Pfaudler RB-CE Batch-Type Agitated Reactor - IPP# 217836
  • Glasslined Pfaudler RB-CE Batch-Type Agitated Reactor - IPP# 217836
  • Glasslined Pfaudler RB-CE Batch-Type Agitated Reactor - IPP# 217836
  • Glasslined Pfaudler RB-CE Batch-Type Agitated Reactor - IPP# 217836
  • Glasslined Pfaudler RB-CE Batch-Type Agitated Reactor - IPP# 217836
  • Glasslined Pfaudler RB-CE Batch-Type Agitated Reactor - IPP# 217836
  • Glasslined Pfaudler RB-CE Batch-Type Agitated Reactor - IPP# 217836
  • Glasslined Pfaudler RB-CE Batch-Type Agitated Reactor - IPP# 217836
  • Glasslined Pfaudler RB-CE Batch-Type Agitated Reactor - IPP# 217836
  • Glasslined Pfaudler RB-CE Batch-Type Agitated Reactor - IPP# 217836
  • Glasslined Pfaudler RB-CE Batch-Type Agitated Reactor - IPP# 217836
  • Glasslined Pfaudler RB-CE Batch-Type Agitated Reactor - IPP# 217836
Overview
Reactor
Batch-Type Agitated
Pfaudler
RB-CE
Re-glassed
Glasslined
2,050 L (541.6 gallons)
Pressure Vessel
6 bar (87 psi)
Yes
200 °C (392 °F)
Jacket/Internal Coil
6 bar (87 psi)
200 °C (392 °F)
Agitation System
Yes

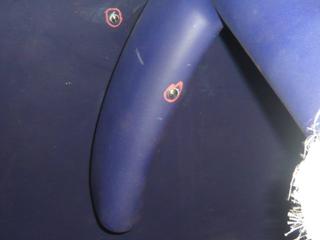

- Baffle: normal
Dimensions
1,400 mm (55.1 in)
1,611 mm (63.4 in)
Other Specifications
Yes
Lugs
Inlets & Outlets

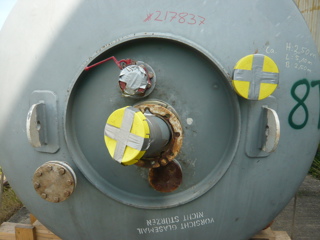

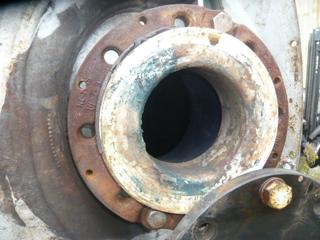

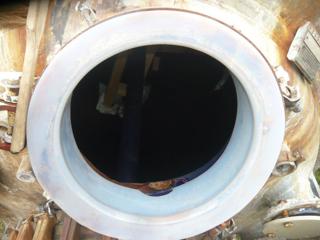

- Openings: - Top: - (1) DN 350/450 manway with sight glass in cover, mounted on a swing davit - (3) DN 100 - (2) DN 200 - Nozzle side wall: (1) DN 150

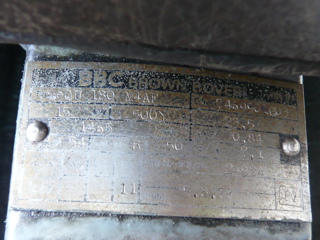

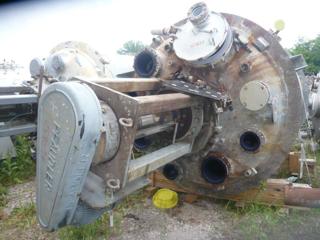

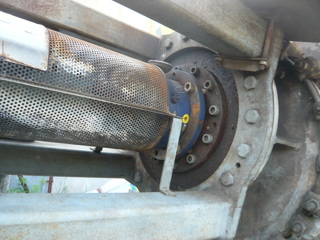

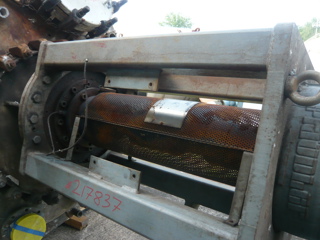

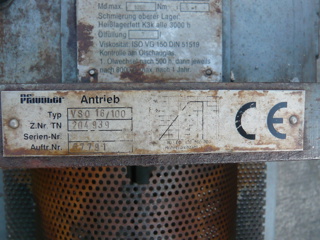

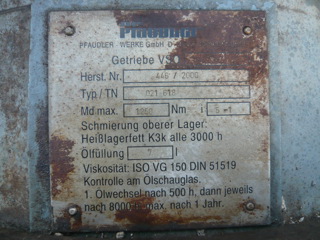

total volume internal 2.050 liter, total volume jacket 318 liter, with VSO 8/80 Pfaudler drive, belt driven by a 5,0-7,5 KW, 500 V, 50 Hz, 1445 rpm, LOHER e-motor, ex proof (T3). Glass type WWG/blue,
