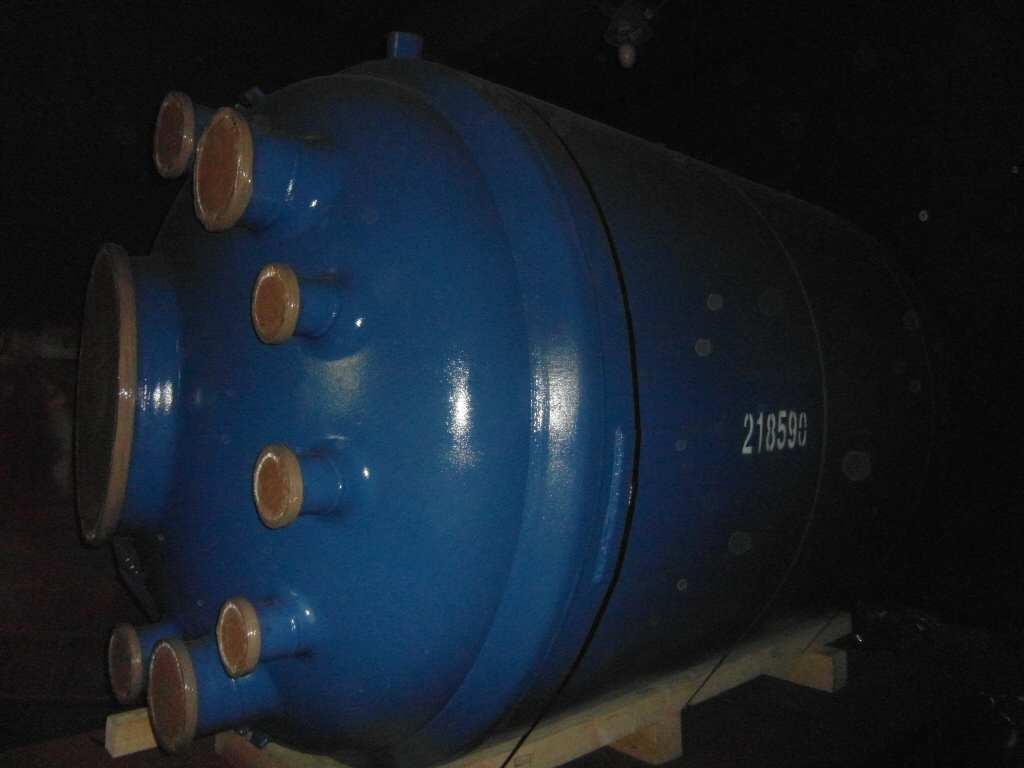

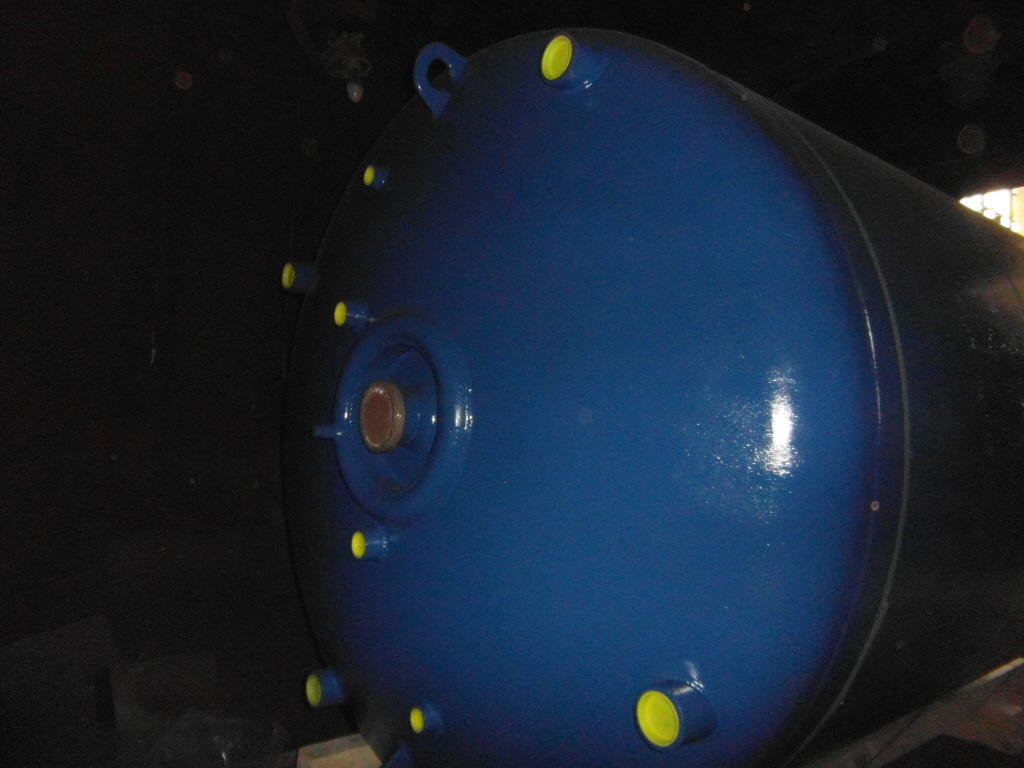

Glasslined Pfaudler RA Batch Type Body Only Reactor - IPP# 218590

  • Glasslined Pfaudler RA Batch Type Body Only Reactor - IPP# 218590 Glasslined Pfaudler RA Batch Type Body Only Reactor - IPP# 218590
  • Glasslined Pfaudler RA Batch Type Body Only Reactor - IPP# 218590 Glasslined Pfaudler RA Batch Type Body Only Reactor - IPP# 218590
  • Glasslined Pfaudler RA Batch Type Body Only Reactor - IPP# 218590 Glasslined Pfaudler RA Batch Type Body Only Reactor - IPP# 218590
  • Glasslined Pfaudler RA Batch Type Body Only Reactor - IPP# 218590
  • Glasslined Pfaudler RA Batch Type Body Only Reactor - IPP# 218590
  • Glasslined Pfaudler RA Batch Type Body Only Reactor - IPP# 218590
Reactor
Batch Type Body Only
Pfaudler
RA
Re-glassed
Glasslined
7,571 L (2,000 gallons)
6.9 bar (100 psi)
Yes
232.2 °C (450 °F)
Glass Lined
6.2 bar (90 psi)
232.2 °C (450 °F)
Carbon Steel
Yes
Vertical
1,981 mm (78 in)
2,324 mm (91.5 in)
Dish
Glasslined
Dish
Glasslined

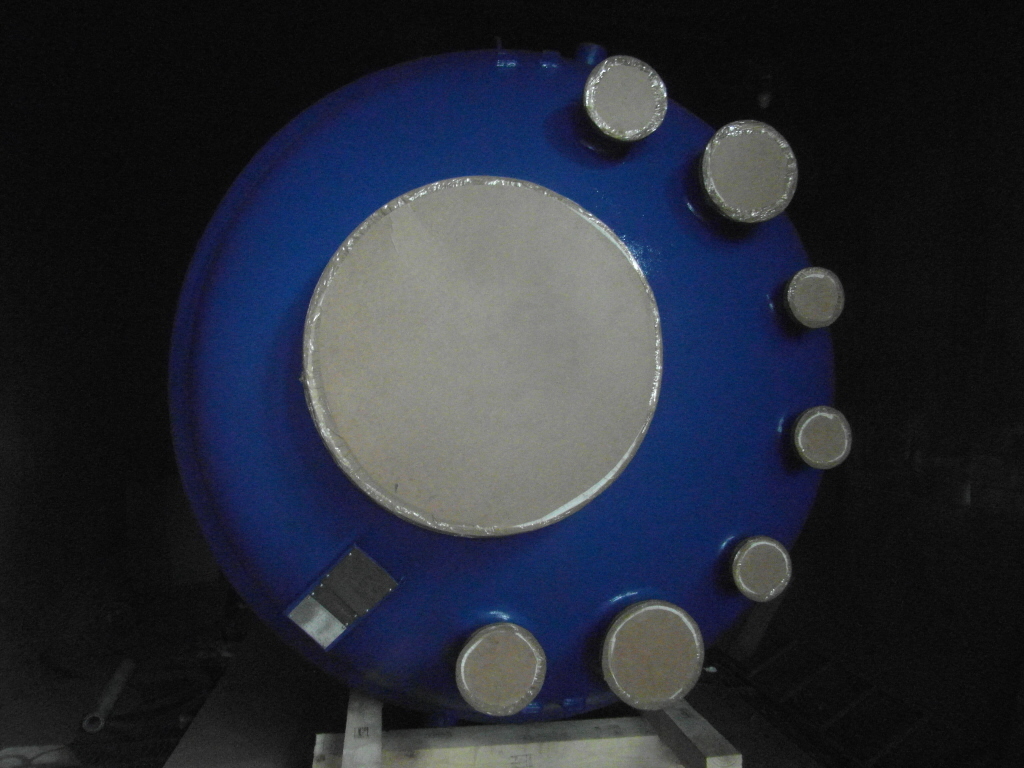

Openings include: Top - 30" great cover with (2) 2", and (1) 14" x 18" maway with sight glass in cover, (3) 4", (2) 8", (2) 6"; Bottom (1) 4" offset.
Legs
Full Fire Polish (FF)
Very Clean (VC)
  • Bare Vessel

Similar Equipment

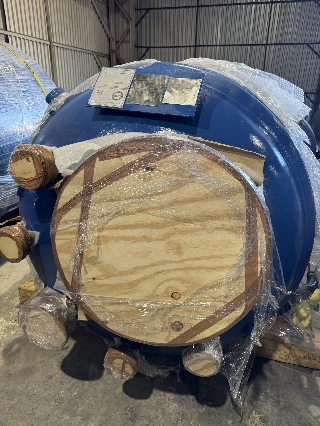

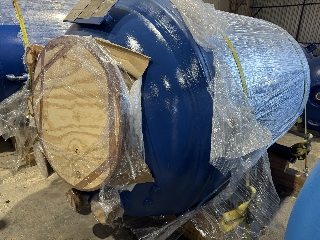

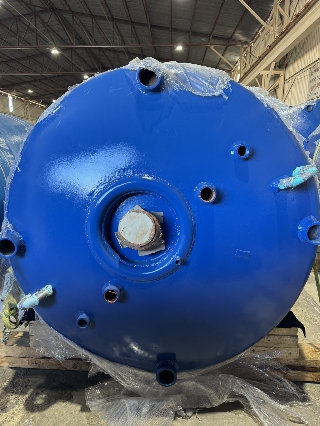

Glasslined Pfaudler RA Batch Type Body Only Reactor
