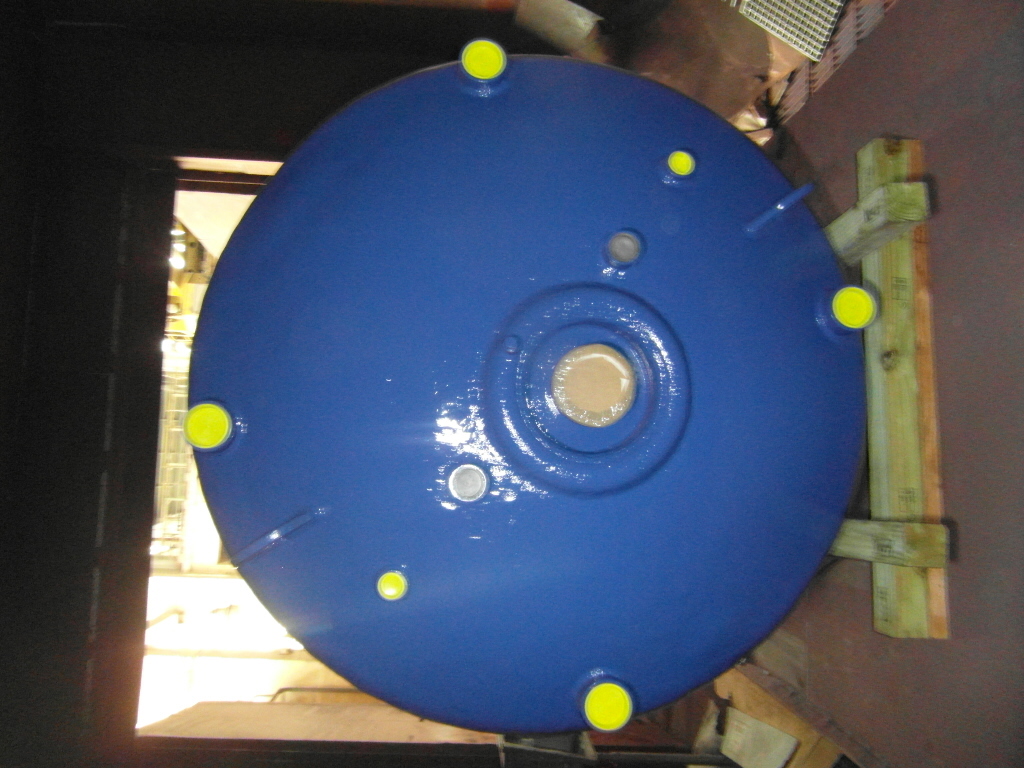

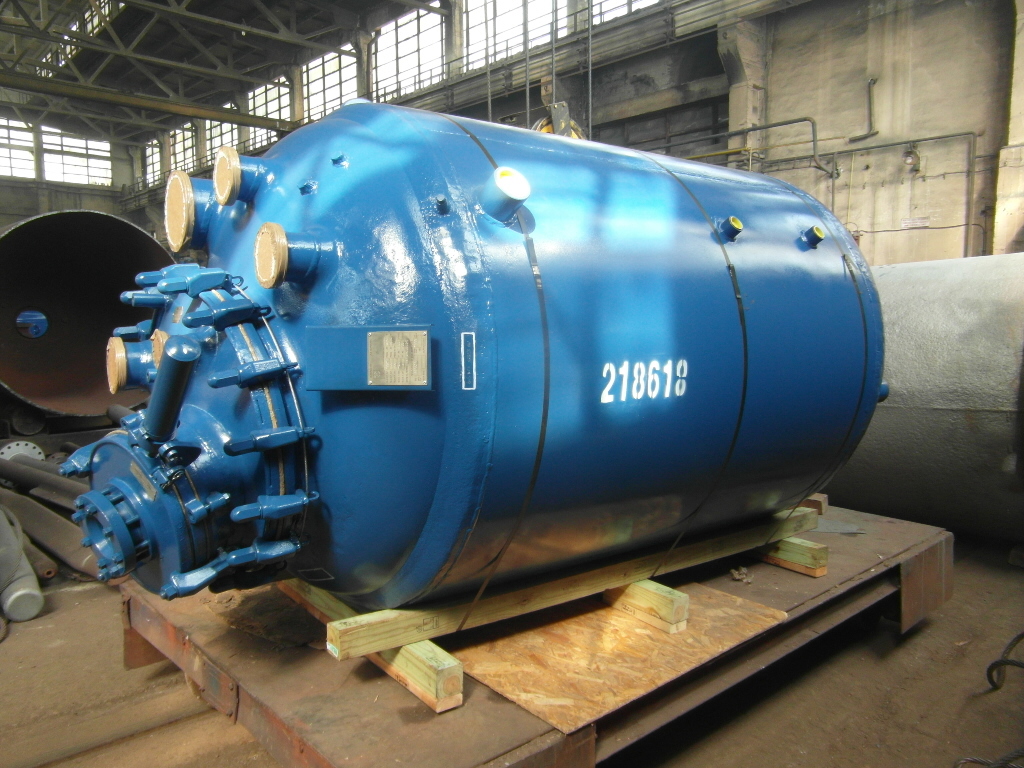

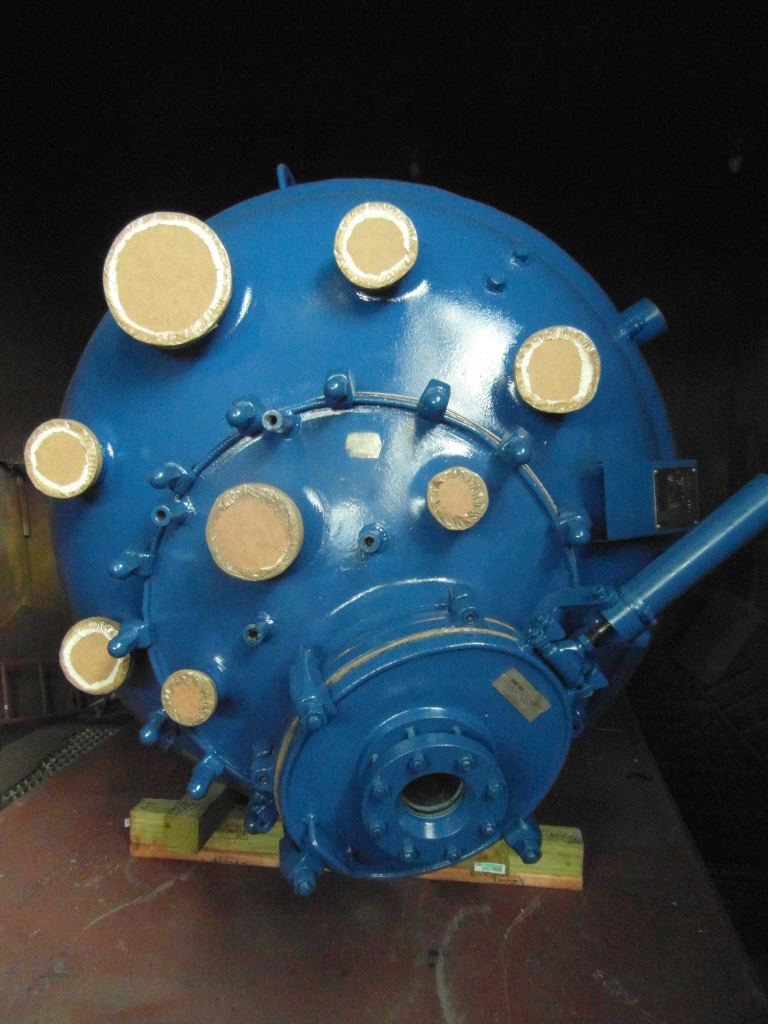

Glasslined Pfaudler RA Batch Type Body Only Reactor - IPP# 218618

  • Glasslined Pfaudler RA Batch Type Body Only Reactor - IPP# 218618 Glasslined Pfaudler RA Batch Type Body Only Reactor - IPP# 218618
  • Glasslined Pfaudler RA Batch Type Body Only Reactor - IPP# 218618 Glasslined Pfaudler RA Batch Type Body Only Reactor - IPP# 218618
  • Glasslined Pfaudler RA Batch Type Body Only Reactor - IPP# 218618 Glasslined Pfaudler RA Batch Type Body Only Reactor - IPP# 218618
  • Glasslined Pfaudler RA Batch Type Body Only Reactor - IPP# 218618 Glasslined Pfaudler RA Batch Type Body Only Reactor - IPP# 218618
  • Glasslined Pfaudler RA Batch Type Body Only Reactor - IPP# 218618
  • Glasslined Pfaudler RA Batch Type Body Only Reactor - IPP# 218618
  • Glasslined Pfaudler RA Batch Type Body Only Reactor - IPP# 218618
  • Glasslined Pfaudler RA Batch Type Body Only Reactor - IPP# 218618
Overview
Reactor
Batch Type Body Only
Pfaudler
RA
Re-glassed
Glasslined
3,785 L (1,000 gallons)
Glass Lined
Yes
Pressure Vessel
6.89 bar (100 psi)
Yes
343 °C (650 °F)
Jacket/Internal Coil
6.21 bar (90 psi)
177 °C (350 °F)
Standard
Carbon Steel
Dimensions
Vertical
Heads
Dish
Glasslined
Dish
Glasslined
Other Specifications
Yes
Legs
Inlets & Outlets
Openings include: Top - 30" great cover with (2) 2", and (1) 14" x 18" maway with sight glass in cover, manway assist, (4) 4", (1) 8"; Bottom (1) 4" offset.
Glass Details
Full Fire Polish (FF)
Very Clean (VC)
Additional Information
