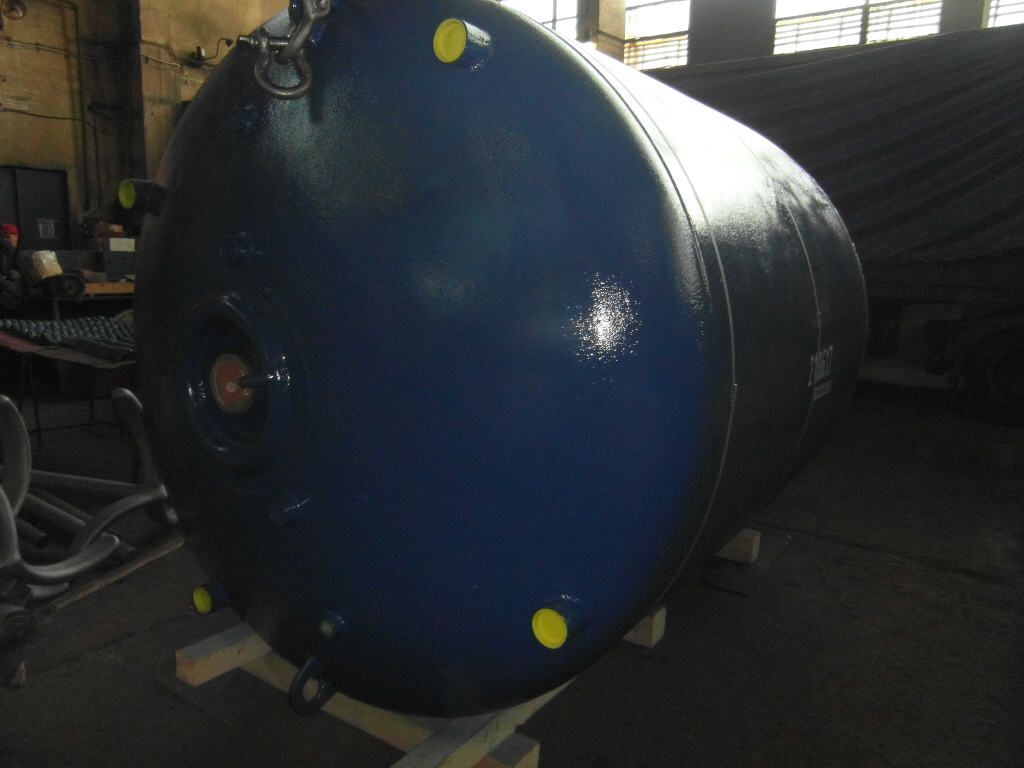

Glasslined Pfaudler RA Batch-Type Agitated Reactor - IPP# 218617

Type: Reactor

Subtype: Batch-Type Agitated

Manufacturer: Pfaudler

Model: RA

Condition: Used

Material: Glasslined

Capacity (Design): 7,571 L (2,000 gallons)

Internal Pressure: 6.9 bar (100 psi)

• 5TW drive belt driven

Internal Full Vacuum: Yes. Internal Temperature: 176.7 °C (350 °F). Jacket Pressure: 6.2 bar (90 psi). Jacket Temperature: 176.7 °C (350 °F). Agitation: Yes. Support Type: Lugs.

Type: Reactor

Subtype: Batch-Type Agitated

Manufacturer: Pfaudler

Model: RA

Condition: Used

Material: Glasslined

Capacity (Design): 3,785 L (1,000 gallons)

Internal Pressure: 6.9 bar (100 psi)

• 5 TW drive, 15 to 1 ratio, belt driven by 10 HP 3/60/230/460V motor,

Internal Full Vacuum: Yes. Internal Temperature: 343.3 °C (650 °F). Jacket Pressure: 6.2 bar (90 psi). Jacket Temperature: 176.7 °C (350 °F). Agitation: Yes. Support Type: Legs.

Type: Reactor

Subtype: Batch-Type Agitated

Manufacturer: Pfaudler

Model: RA

Condition: Used

Material: Glasslined

Capacity (Design): 7,571 L (2,000 gallons)

Internal Pressure: 6.9 bar (100 psi)

With a 5RW drive, 15 to ratio, belt driven by a mechanical Vari-Speed with an adjustable sheeve, 10 HP motor.

Internal Full Vacuum: Yes. Internal Temperature: 343.3 °C (650 °F). Jacket Pressure: 6.2 bar (90 psi). Jacket Temperature: 176.7 °C (350 °F). Agitation: Yes. Diameter: 1,981 mm (78 in). Straight Side Length: 2,134 mm (84 in). Support Type: Legs.

Type: Reactor

Subtype: Batch-Type Agitated

Manufacturer: Pfaudler

Model: RA

Condition: Needs Reglass

Material: Glasslined

Capacity (Design): 7,571 L (2,000 gallons)

Internal Pressure: 6.9 bar (100 psi)

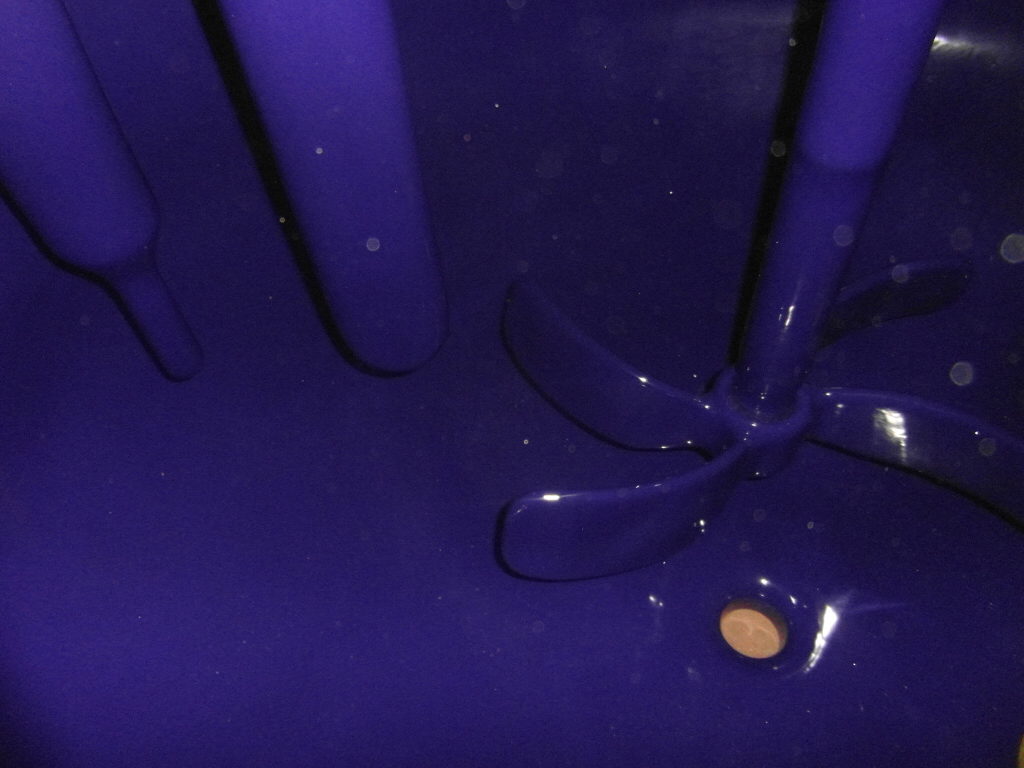

No drive with unit, only drive base with 4 blade Cryolock impellor.

Internal Full Vacuum: Yes. Internal Temperature: 343.3 °C (650 °F). Jacket Pressure: 6.2 bar (90 psi). Jacket Temperature: 176.7 °C (350 °F). Jacket Material of Construction: Carbon Steel. Orientation: Vertical. Support Type: Legs.
