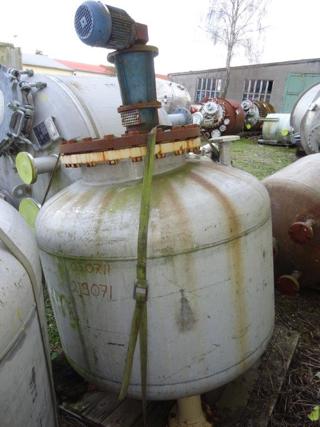

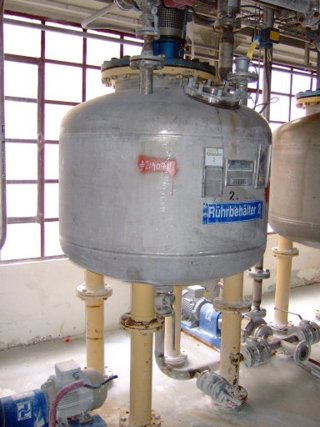

IPP# 219072, 1,000 L (264.2 gallons) Stainless Steel Austentic Tank For Sale

Condition:

Used

Material:

Stainless Steel Austentic

Manufacturer:

Schmeck Gmbh

Capacity (Design):

1,000 L (264.2 gallons)

Orientation:

Vertical

Diameter:

1,100 mm (43.3 in)

Straight-side Length:

530 mm (20.9 in)

Internal Pressure:

6 bar (87 psi)

Internal Temperature:

250 °C (482 °F)

Does it have Agitation ?:

Yes

Vacuum:

Yes

Baffle Details:

4-internal baffle plates on sidewall

Motor Power:

0.56 kW (0.75 HP)

Motor Speed:

1,420

Motor Hertz:

Support:

Legs

Additional Info:

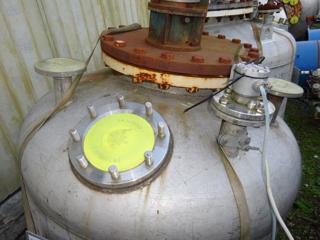

Top: Weld dished top with 1-150mm, 1-100mm, and 2-50mm openings
Bottom: Weld dished bottom with 1-50mm opening 3-blade marine type impellor, packed gland
