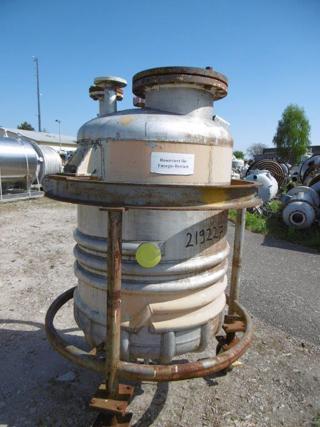

Stainless Steel Austenitic Friedrich Gruber Tank - IPP# 219223

Type: Tank

Manufacturer: Chematec AG

Condition: Used

Material: Stainless Steel Austenitic

Capacity (Design): 1,800 L (480.8 gallons)

Orientation: Horizontal

Internal Pressure: 6 bar (87 psi). Internal Temperature: 200 °C (392 °F). Vacuum: Yes. Support: Saddle.

Type: Tank

Manufacturer: Koehler-Bosshardt

Condition: Used

Material: Stainless Steel Austenitic

Capacity (Design): 16,000 L (4,250 gallons)

Orientation: Vertical

• Jacket covers bottom head and 1/2 of the straight side.
• Top and bottom head thickness is 8mm

Diameter: 2,600 mm (102.4 in). Straight-side Length: 2,950 mm (116.3 in). Internal Pressure: 2 bar (29 psi). Internal Temperature: 50 °C (122 °F). Jacket Type: Half Pipe/Limpet. Jacket Material: Stainless Steel Austenitic. Jacket Pressure: 6 bar (87 psi). Jacket Temperature: 200 °C (392 °F). Support: Legs.

Type: Tank

Manufacturer: Schleifenbaum & Weber KG

Condition: Used

Material: Stainless Steel Austenitic

Capacity (Design): 10,600 L (2,800 gallons)

Orientation: Vertical

• Jacketed pressure tank with half pipe coil on straight side and bottom cone.

Diameter: 2,600 mm (102.4 in). Straight-side Length: 1,400 mm (54.9 in). Internal Pressure: 6 bar (87 psi). Internal Temperature: 250 °C (482 °F). Jacket Type: Half Pipe/Limpet. Jacket Material: Stainless Steel 316. Jacket Pressure: 20 bar (290.1 psi). Jacket Temperature: 250 °C (482 °F). Vacuum: Yes. Support: Legs.

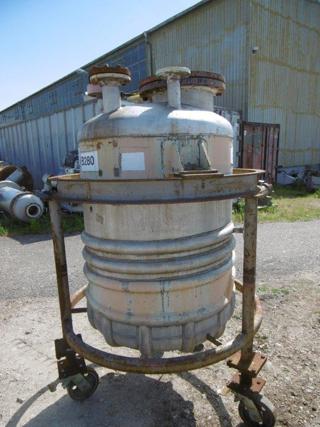

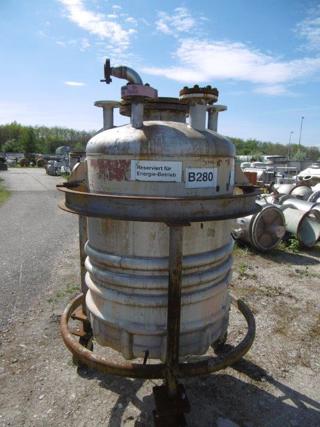

Type: Tank

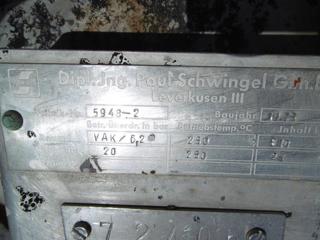

Manufacturer: Paul Schwingel GmbH

Condition: Used

Material: Stainless Steel Austenitic

Capacity (Design): 810 L (214 gallons)

Orientation: Vertical

• Pressure tank with half pipe coil

Diameter: 900 mm (35.4 in). Straight-side Length: 999 mm (39.3 in). Internal Pressure: 6.2 bar (89.9 psi). Internal Temperature: 250 °C (482 °F). Jacket Type: Half Pipe/Limpet. Jacket Material: Stainless Steel Other. Jacket Pressure: 20 bar (290.1 psi). Jacket Temperature: 250 °C (482 °F). Vacuum: Yes. Support: Other.
