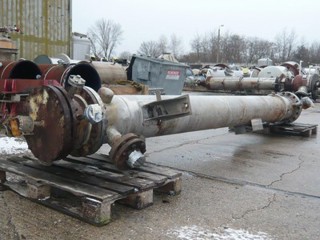

tubular evaporation system manufactured by Buflovak-Blaw-Knox. Includes 5 main pieces and support equipment such as pumps and small plate heat exchanger. Main pieces are as follows:(D) 1st effect steam chest (heat exchanger), 900 Sq Ft. NB #8255/ 9393, SN # 17669/18701, (1997) rated for 50 psi at 300 degrees on the shell, Model 1256642. 36" diameter x 10' OAL mounted vertical. (C) 1st effect vapor separator, RRFC, 42" diameter x 9' OAL with top side man way and "York" style 931 316 SS demisting mesh packing for vapor carry over.(needs to be replaced). (E) 2nd effect heater, 4' diameter x 13' OAL, with (B) 38" diameter x 8' OAL separator with cone bottom. NB # 3136, serial # 11514, Rated for MAWP Vacuum at 179 degrees F. ( HSB # 2544B) Plant # S-11181-2. With 18" man way and sight glass. With 12" interconnecting pipe, and elbow pump. Overhead condenser (A) approx. 2000 Sq. ft., 316 SS , 2/4 pass on tube side(cooling) with 12" water inlet/outlet. Discharge of overheads to distillate.
30" diameter x 10' 3" OAL, saddle mounted, with two 40 Lb. steam jets to supply vacuum.
