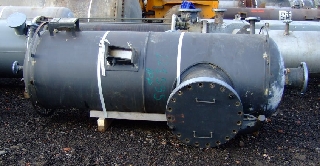

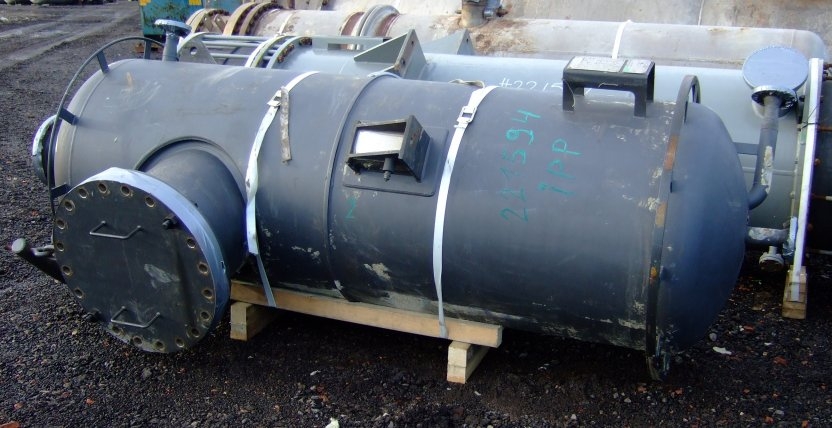

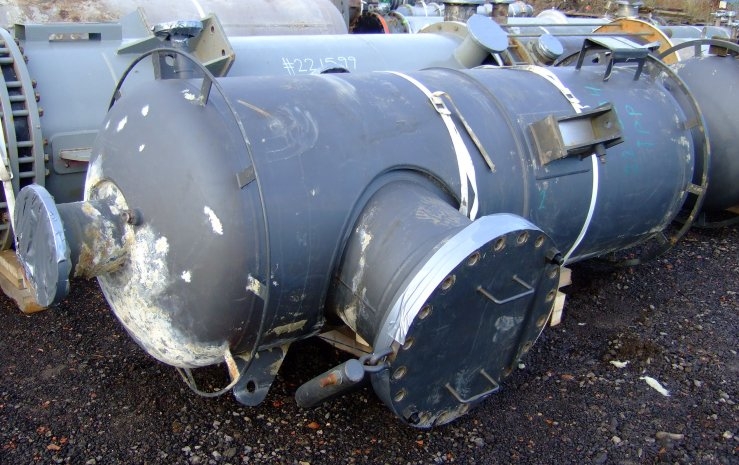

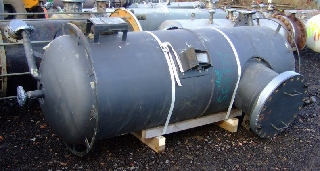

Stainless Steel 304L FIB Apparatenbouw BV Tank - IPP# 221594

Type: Tank

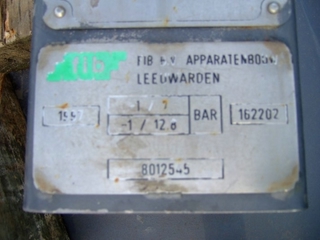

Manufacturer: FIB Apparatenbouw BV

Condition: Used

Material: Stainless Steel 304

Capacity (Design): 1,340 L (354 gallons)

Orientation: Vertical

• design pressure internal 7 bar + FV @ 200 degrees C,
• jacket 12.8 + FV @ 200 degrees C (300ltr)

Diameter: 834 mm (32.8 in). Straight-side Length: 2,400 mm (94.5 in). Internal Pressure: 7 bar (102 psi). Internal Temperature: 200 °C (392 °F). Jacket Type: Standard. Jacket Material: Stainless Steel 304. Jacket Pressure: 12.8 bar (186 psi). Jacket Temperature: 200 °C (392 °F). Vacuum: Yes. Support: Legs.

Type: Tank

Manufacturer: Perry Products Co.

Condition: Used

Material: Stainless Steel 304L

Capacity (Design): 28,391 L (7,500 gallons)

Orientation: Horizontal

• (5) reinforcing rings around outside of tank

Diameter: 2,438 mm (96 in). Straight-side Length: 6,096 mm (240 in). Cone Length: 305 mm (12 in). Support: Saddle.

Type: Tank

Condition: Used

Material: Stainless Steel 304L

Capacity (Design): 28,000 L (7,397 gallons)

Orientation: Horizontal

• internal working pressure atmospheric @ 80 deg C, design temperature 150 deg C,
• Coil pressure rating: 3.5 bar
• Coil material: 316L s/steel
• Coil design: 1-turn, hairpin
• Coil location: Running along full length of vessel bottom
• Cradle type: Fixed c/steel tank has a 50mm fall from back to front, fully insulated with 50mm foam glass and clad with aluminum

Diameter: 2,500 mm (98.4 in). Straight-side Length: 6,000 mm (236 in). Internal Pressure: 1.01 bar (14.7 psi). Internal Temperature: 150 °C (302 °F). Does it have an Internal Coil?: Yes. Support: Saddle.

Type: Tank

Manufacturer: M. LABBE

Condition: Used

Material: Stainless Steel 304L

Capacity (Design): 21,215 L (5,604 gallons)

Orientation: Vertical

Pressure rating: without pressure
Lifting weight: 3,030kg
Vessel wall thickness of head and bottom dish 8mm
Cylindrical section 6mm

Diameter: 2,400 mm (94.5 in). Straight-side Length: 3,900 mm (154 in). Internal Temperature: 135 °C (275 °F). Cone Length: 793 mm (31.2 in). Support: Lugs.
