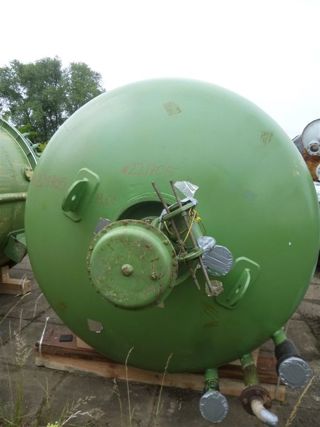

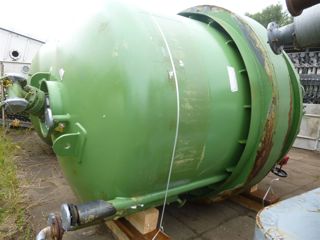

Glasslined Technoglass CE Batch-Type Agitated Reactor - IPP# 221681

Type: Reactor

Subtype: Batch-Type Agitated

Manufacturer: Technoglass

Model: CE

Condition: Used

Material: Glasslined

Capacity (Design): 7,590 L (2,005 gallons)

Internal Pressure: 6 bar (87 psi)

• reactor with condensing system
• CE-6300 series

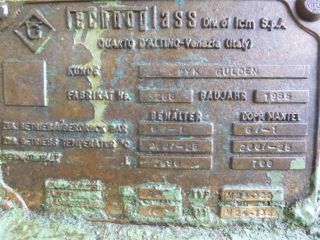

• Certification: TUV
• internal design pressure -1/6 bar @ -25/+ 200 deg C (7590ltr),
• jacket -1/6 bar @ -25/+200 deg C (700ltr)
• Motor: 3 phase

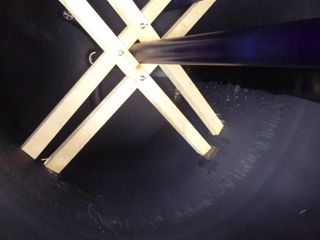

• 3-finger retreat curved agitator
• Crane 909/909 mechanical seal with lubricator
• Straight side openings: 2-25mm (jacket)
• Condensing system: (1) 100ltr Schott QVF glass vertical receiver, (2) 100ltr Schott QVF glass round receivers, (1) 1.5 sqm vertical Schott QVF glass shell and spiral tube heat exchanger, (1) 1 sqm Schott QVF glass shell & spiral tube heat exchanger, (1) 26 sqm Schott QVF glass shell and tube horizontal heat exchanger, (1) PTFE centrifugal pump, (1) s/steel centrifugal pump
• Control panel: (1)

Internal Temperature: 200 °C (392 °F). Jacket Pressure: 6 bar (87 psi). Jacket Temperature: 200 °C (392 °F). Agitation: Yes. Diameter: 2,000 mm (78.7 in). Straight Side Length: 2,040 mm (80.3 in).

Type: Reactor

Subtype: Batch-Type Agitated

Manufacturer: Technoglass

Model: CE

Condition: Used

Material: Glasslined

Capacity (Design): 7,590 L (2,005 gallons)

Internal Pressure: 6 bar (87 psi)

• Reactor with condensing system
• CE-6300 series
• internal design pressure -1/6 bar @ -25/+ 200 deg C (7590ltr),
• jacket -1/6 bar @ -25/+200 deg C (700ltr)

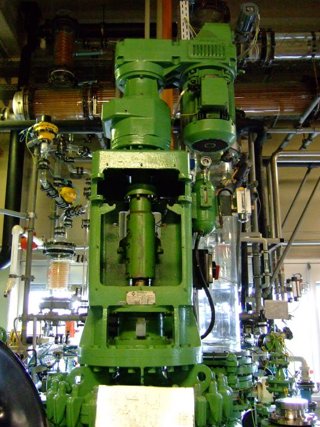

• Motor: 3 phase -mechanical seal type RF100-VOS-H with lubricator
• Straight side openings: 2-25mm (jacket), bottom: 1-150mm with Pneumatic valve, 4-50mm (jacket)
• Condensing system:
  • 1 x 100 liter Schott QVF glass vertical receiver, type VZG-100/g, pressure -1/0.3 bar @ 150 deg C
  • 2 x 100 liter Schott QVF glass round receivers, type VSV-100, pressure -1/0.3 bar @ 150 deg C

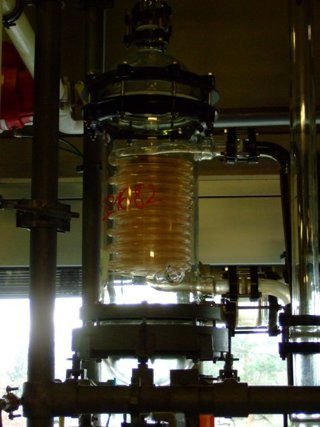

  • 1 x 1 sqm vertical Schott QVF glass shell and spiral tube heat exchanger, type HE6/10, pressure -1/0.3 bar @ 150 deg C
  • 1 x 1.5 sqm Schott QVF glass shell & spiral tube heat exchanger, type HE6/15, pressure -1/0.3 bar @ 150 deg C

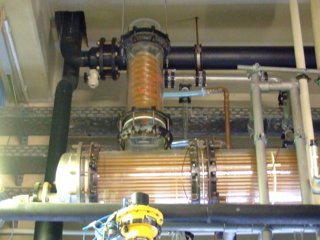

  • 1 x 26 sqm Schott QVF glass horizontal shell and tube heat exchanger, type RGM12/21, pressure -1/0.3 bar @ 150 deg C
  • 1 x 100 m3/hr @ 33 mbar Traveini 2-stage c/steel water seal vacuum pump with a 40 liter c/steel separator tank, type TRHC-40-190/C/RX, serial #BX432, driven by 6.6 kW, 3/50/380/420/655/725 volt, 1430 rpm Ex motor, mounted on a baseplate.

Internal Full Vacuum: Yes. Internal Temperature: 200 °C (392 °F). Jacket Pressure: 6 bar (87 psi). Jacket Temperature: 200 °C (392 °F). Agitation: Yes. Diameter: 2,000 mm (78.7 in). Straight Side Length: 1,942 mm (76.5 in).

Type: Reactor

Subtype: Batch-Type Agitated

Manufacturer: Pfaudler

Model: CE

Condition: Used

Material: Glasslined

Capacity (Design): 2,115 L (558.7 gallons)

Internal Pressure: 6 bar (87 psi)

Order number: 68525 internal pressure -1/6 bar @ 200 degrees C (total volume 2115 liter) jacket pressure 7 bar @ 200 degrees C (volume 319 liter) with 10hp/600rpm/VS-10 Pfaudler gear, ratio 1:5,05, belt driven by a 3,6kW/3~/50Hz/380-660V/1430rpm/Ex proof motor.

Internal Full Vacuum: Yes. Internal Temperature: 200 °C (392 °F). Jacket Pressure: 7 bar (101.5 psi). Jacket Temperature: 200 °C (392 °F). Jacket Material of Construction: Carbon Steel. Agitation: Yes. Diameter: 1,500 mm (59.1 in). Straight Side Length: 1,200 mm (47.2 in). Support Type: Lugs.

Type: Reactor

Subtype: Batch-Type Agitated

Manufacturer: DeDietrich

Model: CE

Condition: Used

Material: Glasslined

Capacity (Design): 11,700 L (3,091 gallons)

Internal Pressure: 6 bar (87 psi)

internal pressure -1/6 bar @ -10/+200 degrees C jacket 7 bar @ -10+200 degrees C jacket 1100 ltr. 400mm diameter x 3180mm tangent to tangent, VonRoll drive, 40/80 rpm, belt driven by a BBC 13/20kW, 3/50 /380V, 700/1400rpm motor, with mechanical seal on shaft with lubricator pump. Total weight 12,000 kg

Internal Full Vacuum: Yes. Internal Temperature: 200 °C (392 °F). Jacket Pressure: 7 bar (101.5 psi). Jacket Temperature: 200 °C (392 °F). Agitation: Yes. Diameter: 2,400 mm (94.5 in). Straight Side Length: 3,180 mm (125.2 in). Support Type: Lugs.
