Glasslined Thale (Germany) RWA-G6.3/1eD6-6 Batch-Type Agitated Reactor - IPP# 221715

Type: Reactor

Subtype: Batch-Type Agitated

Manufacturer: Thale (Germany)

Model: EHW-N22101/02

Condition: Unused

Material: Glasslined

Capacity (Design): 1,770 L (467.6 gallons)

Internal Pressure: 10 bar (145 psi)

1600 ltr (420 gal) jacket diameter 1300mm (51")

Internal Full Vacuum: Yes. Internal Temperature: 200 °C (392 °F). Jacket Pressure: 10 bar (145 psi). Jacket Temperature: 200 °C (392 °F). Agitation: Yes. Diameter: 1,200 mm (47.2 in). Straight Side Length: 1,300 mm (51.2 in). Support Type: Lugs.

Type: Reactor

Subtype: Batch-Type Agitated

Manufacturer: EHW Thale

Model: RWA-G6.3/1eD6-6

Condition: Used

Material: Glasslined

Capacity (Design): 7,160 L (1,891 gallons)

Internal Pressure: 6 bar (87 psi)

• internal pressure 6 bar @ 200 deg C (7160ltr),
• jacket 6 bar @ 200 deg C (1135ltr)
• Certification: TUV
• Motor: 3 phase
• 380/660 volt
• 3-finger retreat curved agitator
• mechanical seal with lubricator
• Straight side:
• 1-15mm (jacket) -with (1) 1.5 sqm Schott QVF glass shell & spiral tube heat exchanger pressure: -1/0.3 bar @ 150 deg C

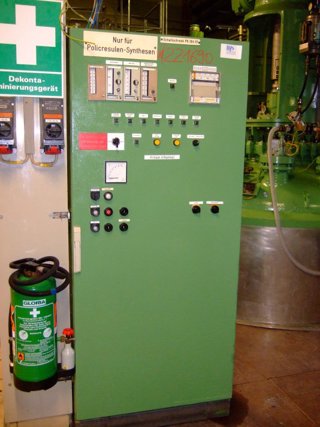

• Control panel: (1)

Internal Temperature: 200 °C (392 °F). Jacket Pressure: 6 bar (87 psi). Jacket Temperature: 200 °C (392 °F). Agitation: Yes. Diameter: 2,000 mm (78.7 in). Straight Side Length: 1,500 mm (59.1 in). Support Type: Lugs.

Type: Reactor

Subtype: Batch-Type Agitated

Manufacturer: Thale (Germany)

Model: EHW-N380

Condition: Unused

Material: Glasslined

Capacity (Design): 1,514 L (400 gallons)

Internal Pressure: 6 bar (87 psi)

1200mm dia x 1300mm clamp top to btm outlet,

Internal Temperature: 200 °C (392 °F). Jacket Pressure: 6 bar (87 psi). Jacket Temperature: 200 °C (392 °F). Diameter: 1,200 mm (47.2 in). Straight Side Length: 1,300 mm (51.2 in). Support Type: Lugs.

Type: Reactor

Subtype: Batch-Type Agitated

Manufacturer: Thale (Germany)

Condition: Used

Material: Glasslined

Capacity (Design): 9,993 L (2,640 gallons)

Internal Pressure: 6 bar (87 psi)

Driven by 11.5 KW, 3/50/500 volt, 1450 rpm agit drive

Internal Temperature: 200 °C (392 °F). Jacket Pressure: 6 bar (87 psi). Jacket Temperature: 200 °C (392 °F). Agitation: Yes. Diameter: 2,400 mm (94.5 in). Straight Side Length: 1,475 mm (58.1 in). Support Type: Legs.
