Plate and Frame Heat Exchanger 20.6 m² (221.7 ft²) Titanium For Sale - IPP# 222343

Type: Heat Exchanger

Subtype: Plate and Frame

Manufacturer: Thermowave Gmbh

Model: TL 250 KBXL

Condition: Used

Material: Stainless Steel Austenitic

Heat Transfer Surface Area: 2.3 m² (24.8 ft²)

Nozzle Schedule: openings 4-50mm 316Ti stainless steel (1.4571)

plate heat exchanger (product cooler), pressure both sides -1/10 bar @ 140 degrees C (3.2 & 3.2 liter) 164kw, 316Ti stainless steel (1.4571), carbon steel pressure plates and frame.

Cold-side Pressure: 10 bar (145 psi). Cold-side Temperature: 140 °C (284 °F). Hot-side Pressure: 10 bar (145 psi). Hot-side Temperature: 140 °C (284 °F). Housing Material: Carbon Steel. Number of Plates: 17.

Type: Heat Exchanger

Subtype: Plate and Frame

Manufacturer: Thermowave Gmbh

Model: TL 150 KBAL

Condition: Used

Material: Stainless Steel Austenitic

Heat Transfer Surface Area: 1.4 m² (15.1 ft²)

Nozzle Schedule: openings 4-25mm

plate heat exchanger (side discharge cooler), pressure on both sides -1/6 bar @ -10/100 degrees C (2.1 & 2.1 liter) 11.8kw, 316Ti stainless steel (1.4571) plates, carbon steel pressure plates and frame.

Cold-side Pressure: 6 bar (87 psi). Cold-side Temperature: 100 °C (212 °F). Hot-side Pressure: 6 bar (87 psi). Hot-side Temperature: 100 °C (212 °F). Housing Material: Carbon Steel. Number of Plates: 11.

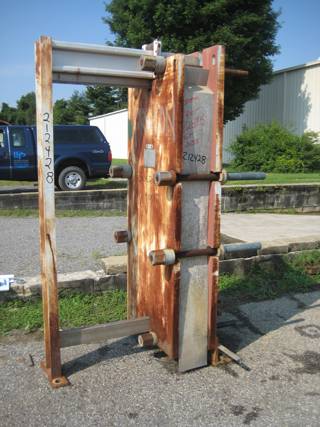

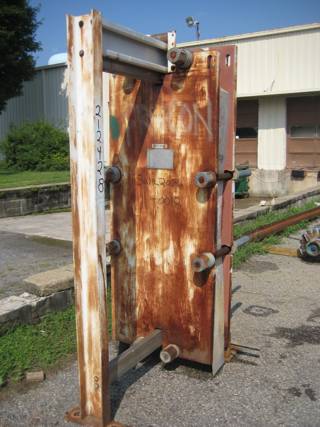

Type: Heat Exchanger

Subtype: Plate and Frame

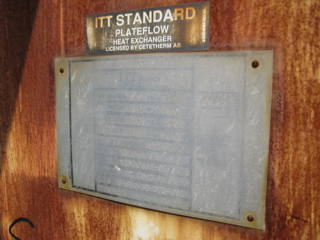

Manufacturer: ITT Standard

Model: PF45

Condition: Used

Material: Titanium

Heat Transfer Surface Area: 53.2 m² (573 ft²)

Cold-side Pressure: 10.3 bar (150 psi)

• Hot Side Rating: 150 PSIG at 230 degrees F, MDMT is +32 degrees F at 150 psi
• Cold Side Rating: 150 PSIG at 230 degrees F, MDMT is +32 degrees F at 150 psi
• Part #: S-612-31-073-001
• Heat Exchange Capacity: 12,713 MM Btu/hr
• Connection Sizes: 6"
• Surface per Plate: 8.07

Cold-side Temperature: 110 °C (230 °F). Hot-side Pressure: 10.3 bar (150 psi). Hot-side Temperature: 110 °C (230 °F).

Type: Heat Exchanger

Subtype: Plate and Frame

Manufacturer: Alfa Laval

Model: M15-MFG8

Condition: Used

Material: Titanium

Heat Transfer Surface Area: 37.2 m² (400.4 ft²)

Nozzle Schedule: Openings process side: 2-125mm - Openings service side: 2-125mm

Heat exchanged: 220 kw single pass both sides

• Flow rate process side: 240 m3/hr
• Flow rate service side: 63.31 m3/hr
• Inlet temperature process side: 28 deg C
• Inlet temperature service side: 24 deg C
• Outlet temperature process side: 27.3 deg C
• Outlet temperature service side: 27 deg C

Hot-side Pressure: 10 bar (145 psi). Hot-side Temperature: 60 °C (140 °F). Housing Material: Carbon Steel. Number of Plates: 62.
