tray/distillation column design pressure 3.2 bar + vacuum (15500 liter) (23) 316Ti stainless steel (1.4571) internal single flow sieve trays with weirs, 400(1000)mm tray spacing,
Type: Column
Subtype: Tray
Manufacturer: Stahl Gmbh
Condition: Used
Material: Stainless Steel Austenitic
Diameter (1): 1,000 mm (39.4 in)
Length (overall): 22,650 mm (891.7 in)
Fabrik #7244 pressure 6 bar + vacuum @ 200 degrees C (16750 liter) 980mm internal diameter x 21850mm straight side, internal valve trays 400mm spacing between trays ladders and platform may be available
Pressure: 6 bar (87 psi). Vacuum: Yes. Temperature: 200 °C (392 °F). Number Of Trays: 40.
Type: Column
Subtype: Tray

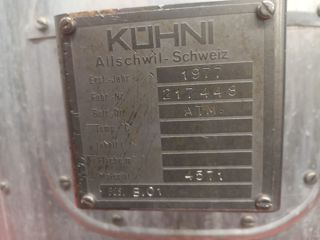

Manufacturer: Kuhni
Condition: Used
Material: Stainless Steel Austenitic
Clad: Yes
Diameter (1): 800 mm (31.5 in)
Length (overall): 9,376 mm (369.1 in)

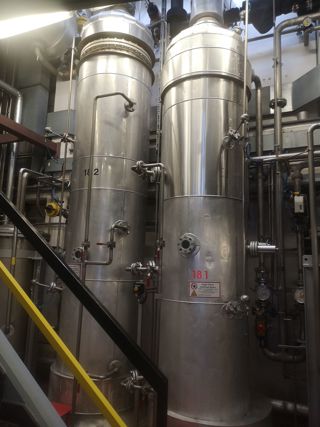

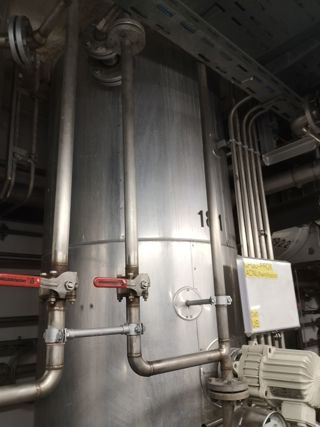

vertical tray rectification column system bolt bonnet bottom fully insulated and clad system includes: (1) 16 square meter stainless steel tube and shell vertical reboiler condenser manufactured by Kuhni, (1) 40 square meter stainless steel tube and shell horizontal heat exchanger (overhead), manufactured by Kuhni, (226) 25mm diameter x 2.5m long tubes, (2) bolt flat heads, 630mm dimeter shell, 3056mm total length, (1) 4 square meter spiral tube vertical heat exchanger, manufactured by Kuhni, operating pressure on both sides atmospheric at room temperature, weld dished top and bottom, 495mm diameter shell x 1003mm total height, (1) 10 square meter spiral tube vertical heat exchanger, manufactured by Kuhni, operating pressure on both sides atmospheric at room temperature, weld dished top and bottom, 694mm diameter shell x 1800mm total height, (1) 2500 liter 316 stainless steel horizontal tank (decanter), manufactured by Kuhni, pressure internal atmospheric, 1094mm diameter x 2500mm straight side, weld dished ends, mounted on saddles, (1) 100 m3/hr vacuum pump skid, driven by 3.6kw, 3/50/380 volt, 1450 rpm motor
Pressure: 1.01 bar (14.7 psi). Number Of Trays: 35.
Type: Column
Subtype: Tray
Manufacturer: GIG Apparate und Anlagenbau Gmbh
Condition: Used
Material: Stainless Steel Austenitic
Diameter (1): 1,762 mm (69.4 in)
Diameter (2): 1,512 mm (59.5 in)
platform and ladders maybe available
Length (overall): 34,000 mm (1,339 in). Pressure: 1 bar (14.5 psi). Vacuum: Yes. Temperature: 150 °C (302 °F). Number Of Trays: 51. Tray Type: Valve Tray.
