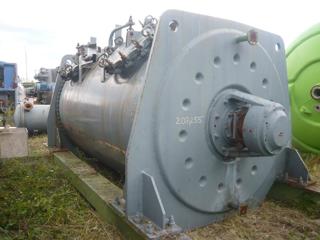

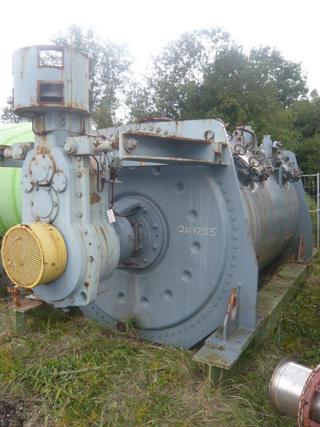

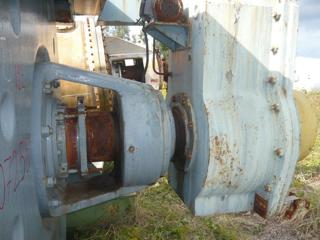

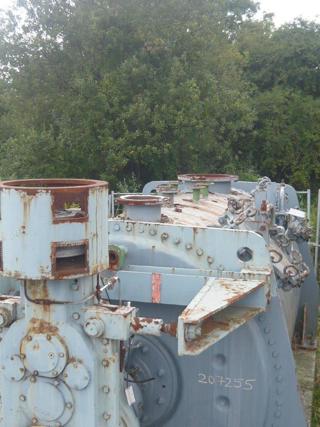

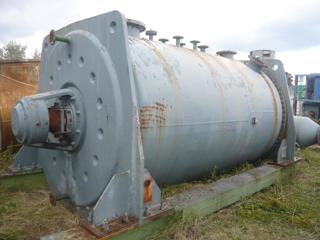

Drais Mannheim plow type Rotary Vacuum Dryer system with a dust collector Plow blades on mixing shaft and choppers mounted in side wall Unit has Carbon steel internals With an (6) choppers/homogenizers, each 7,5 Kw, 1500 rpm 3/50/230/400 volt Dryer includes: 42 square meter S316SS tube & Head, carbon steel shell horizontal vacuum condenser manufactured by Shin Meiwa Industry, Kobe Japan rated ).5 Bar @ 90 degrees C in the shell, 6 bar @ 42 degrees C in the tubes. A top mounted dust collector, a vacuum pump and control panel. Vertical dust collector has eight filters, each is 150mm diameter x 1500 mm long, estimate filter area at 46 m2 (504 sq.ft.).
Type: Dryer-Rotary Vacuum
Manufacturer: Draiswerke GmbH Mannheim
Model: S 10000
Condition: Used
Material: Carbon Steel
Capacity Design: 10 m3 (353.1 ft3)
Capacity Working: 6.6 m3 (233.1 ft3)
double ribbon rotary vacuum dryer internal pressure rated by -1/0.5bar @ 300 degrees C, jacket pressure rated by 6bar @ 300 degrees C (volume 525liter) type eAM250MZ4EX 3~/50Hz/500V/1485rpm ExeG3, openings dryer top: (1) DN50, (1) DN80, (2) DN250, (1) DN500, (2) DN600 manway with cover, dryer bottom: (2) DN50 and (1) DN250, openings jacket top: (4) DN50, jacket side wall: (4) DN50, jacket bottom: (4) DN50 with a 1470liter carbon steel filter, manufactured by Harbich, serial number 9086, internal pressure rated by 3bar @ 240 degrees C, flange mounted on dryer top, including some accessories. With approximately 10 m3 dust collector, CS construction. designed to hold 12 filter cartridges'.
Diameter: 2,000 mm (78.7 in). Length: 3,511 mm (138.2 in). Height: 2,400 mm (94.5 in). Temperature: 300 °C (572 °F). Pressure: 0.5 bar (7.3 psi). Dust Collection: Yes. Jacket Material: Carbon Steel. Jacket Pressure: 6 bar (87 psi). Jacket Temperature: 300 °C (572 °F).
