Glasslined Ceramic Coatings Batch Type Body Only Reactor - IPP# 226510

Type: Reactor

Subtype: Batch Type Body Only

Manufacturer: Ceramic Coatings

Model: WT

Condition: Re-glassed

Material: Glasslined

Capacity (Design): 1,900 L (500 gallons)

Internal Pressure: 6.9 bar (100 psi)

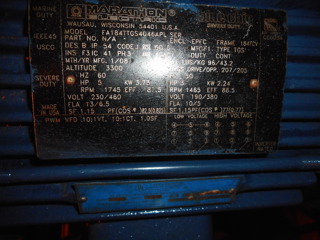

Motor was for testing only, will need to be purchased when it is sold.

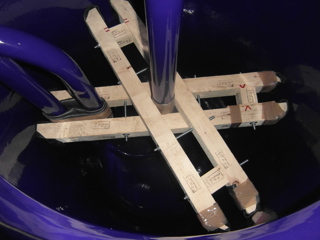

Body with a baffle left in it.

Internal Full Vacuum: Yes. Internal Temperature: 343.3 °C (650 °F). Jacket Pressure: 6.2 bar (90 psi). Jacket Temperature: 204.4 °C (400 °F). Jacket Material of Construction: Carbon Steel. Orientation: Vertical. Diameter: 1,200 mm (48 in). Straight Side Length: 1,350 mm (54 in). Support Type: Legs.

Type: Reactor

Subtype: Batch Type Body Only

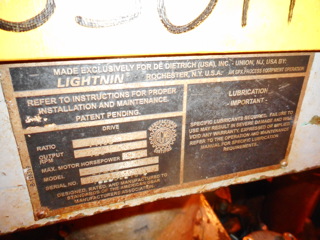

Manufacturer: DeDietrich

Model: SA

Condition: Re-glassed

Material: Glasslined

Capacity (Design): 2,850 L (750 gallons)

Internal Pressure: 6.9 bar (100 psi)

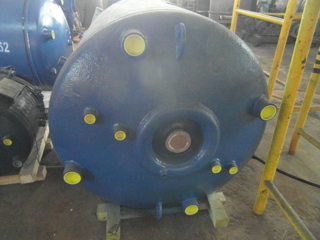

• Bare Body

Internal Full Vacuum: Yes. Internal Temperature: 260 °C (500 °F). Jacket Pressure: 6.2 bar (90 psi). Jacket Temperature: 260 °C (500 °F). Jacket Material of Construction: Carbon Steel. Body Only: Yes. Orientation: Vertical. Diameter: 1,600 mm (63 in). Straight Side Length: 1,300 mm (52 in). Support Type: Legs.

Type: Reactor

Subtype: Batch Type Body Only

Manufacturer: Pfaudler

Model: RA

Condition: Used

Material: Glasslined

Capacity (Design): 7,550 L (2,000 gallons)

Internal Pressure: 6.9 bar (100 psi)

• It has an mixer inside along with a baffle, but no drive system.

Internal Full Vacuum: Yes. Internal Temperature: 176.7 °C (350 °F). Jacket Pressure: 6.9 bar (100 psi). Jacket Temperature: 343.3 °C (650 °F). Jacket Material of Construction: Carbon Steel. Body Only: Yes. Orientation: Vertical. Diameter: 2,000 mm (78 in). Straight Side Length: 2,050 mm (80 in). Support Type: Lugs.

Type: Reactor

Subtype: Batch Type Body Only

Manufacturer: Pfaudler

Model: E 12500

Condition: Used

Material: Glasslined

Capacity (Design): 13,350 L (3,500 gallons)

Internal Pressure: 6 bar (87 psi)

• Auftr. number72176, Vessel=(13332 liter) Jacket =(1034liter) Glass 3115, TUV stamped.
• Baffle and Agitator still with vessel.

Internal Full Vacuum: Yes. Internal Temperature: 200 °C (392 °F). Jacket Pressure: 6.9 bar (100.1 psi). Jacket Temperature: 200 °C (392 °F). Body Only: Yes. Orientation: Vertical. Diameter: 2,400 mm (94.5 in). Straight Side Length: 3,500 mm (137.8 in). Support Type: Lugs.
