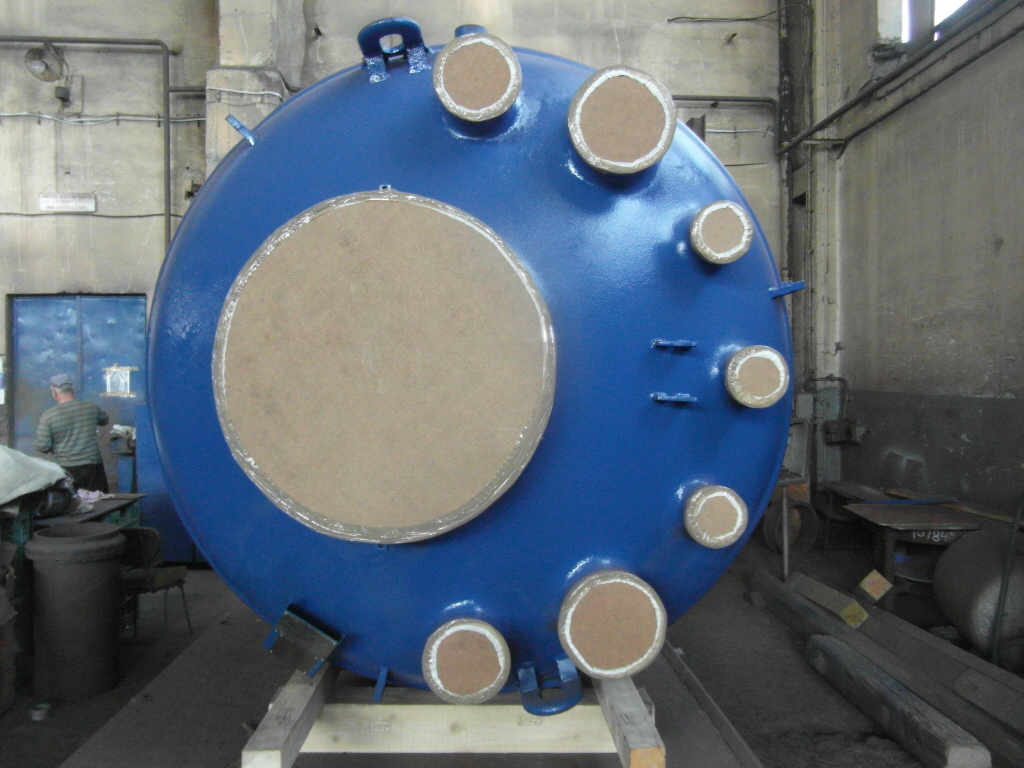

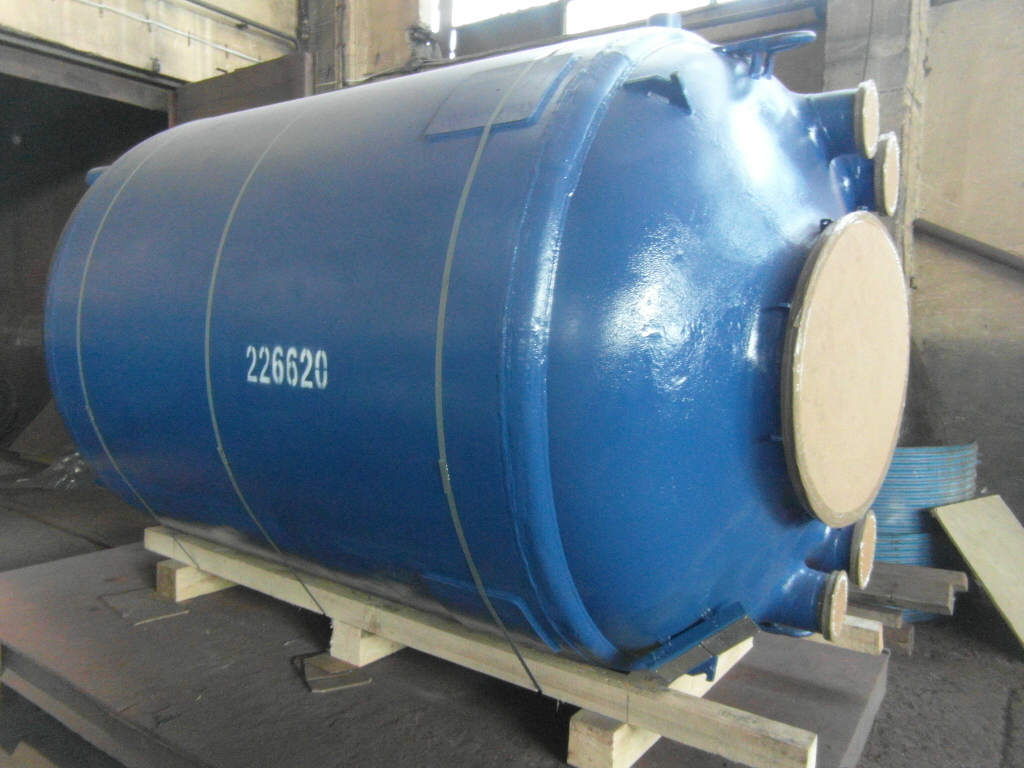

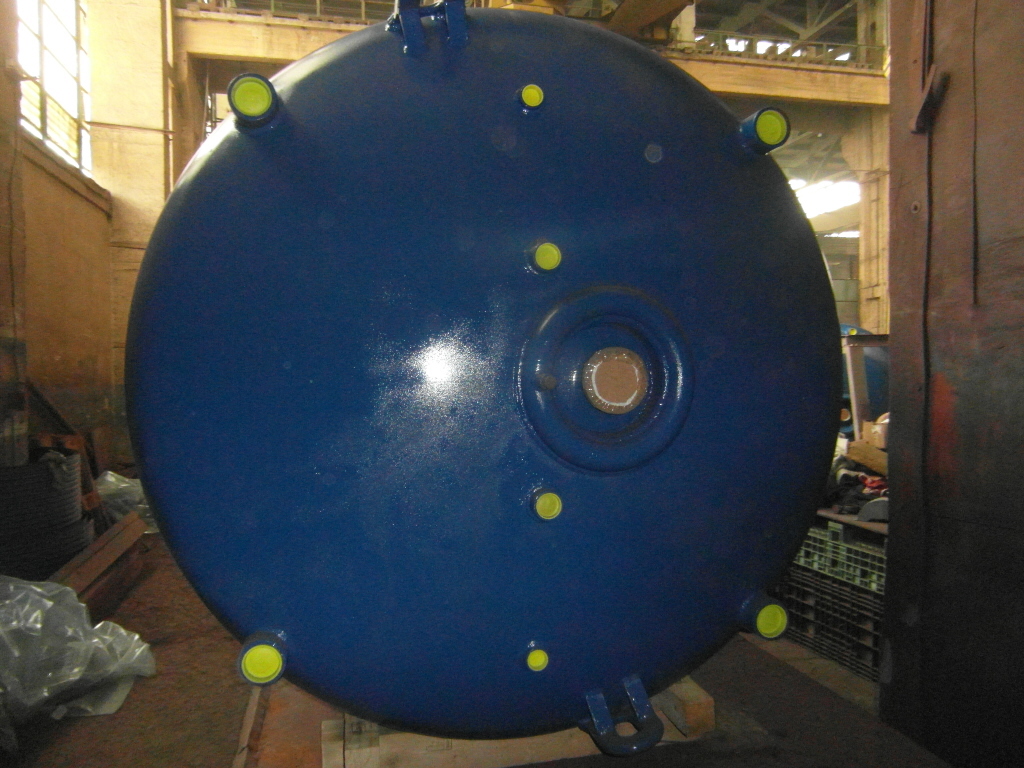

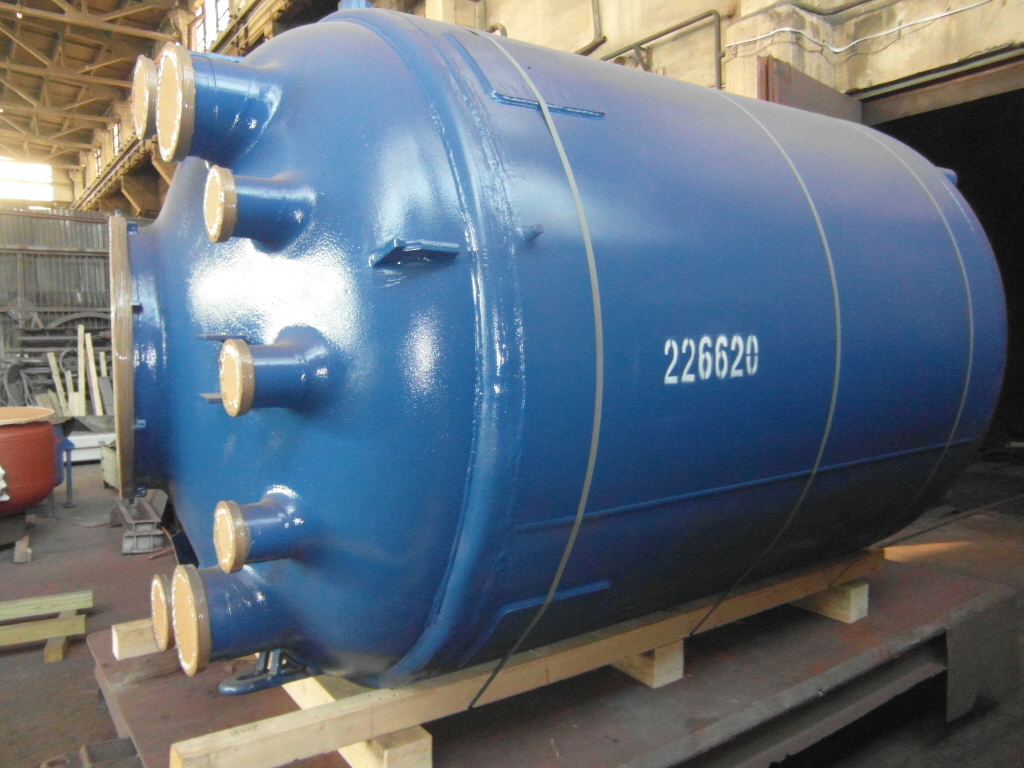

Glasslined DeDietrich SA Batch Type Body Only Reactor - IPP# 226620

Type: Reactor

Subtype: Batch Type Body Only

Manufacturer: DeDietrich

Model: SA

Condition: Used

Material: Glasslined

Capacity (Design): 2,839 L (750 gallons)

Internal Pressure: 6.9 bar (100 psi)

Internal Full Vacuum: Yes. Internal Temperature: 260 °C (500 °F). Jacket Pressure: 6.2 bar (90 psi). Jacket Temperature: 260 °C (500 °F). Jacket Material of Construction: Carbon Steel. Body Only: Yes. Orientation: Vertical. Diameter: 1,562 mm (61.5 in). Straight Side Length: 1,270 mm (50 in). Support Type: Legs.

Type: Reactor

Subtype: Batch Type Body Only

Manufacturer: DeDietrich

Model: SA

Condition: Re-glassed

Material: Glasslined

Capacity (Design): 1,893 L (500 gallons)

Internal Pressure: 6.9 bar (100 psi)

• This is a base reactor body.

Internal Full Vacuum: Yes. Internal Temperature: 260 °C (500 °F). Jacket Pressure: 6.9 bar (100 psi). Jacket Temperature: 260 °C (500 °F). Jacket Material of Construction: Carbon Steel. Body Only: Yes. Orientation: Vertical. Diameter: 1,219 mm (48 in). Straight Side Length: 1,448 mm (57 in). Support Type: Legs.

Type: Reactor

Subtype: Batch Type Body Only

Manufacturer: DeDietrich

Model: SA

Condition: Re-glassed

Material: Glasslined

Capacity (Design): 2,839 L (750 gallons)

Internal Pressure: 6.9 bar (100 psi)

• Base reactor with 30" main cover and 14" x 18" man way with a 4" sight glass.

Internal Full Vacuum: Yes. Internal Temperature: 260 °C (500 °F). Jacket Pressure: 6.2 bar (90 psi). Jacket Temperature: 260 °C (500 °F). Jacket Material of Construction: Carbon Steel. Body Only: Yes. Orientation: Vertical. Diameter: 1,600 mm (63 in). Straight Side Length: 1,340 mm (52.8 in). Support Type: Legs.

Type: Reactor

Subtype: Batch Type Body Only

Manufacturer: DeDietrich

Model: SA

Condition: Needs Reglass

Material: Glasslined

Capacity (Design): 15,142 L (4,000 gallons)

Internal Pressure: 6.9 bar (100 psi)

Internal Full Vacuum: Yes. Internal Temperature: 260 °C (500 °F). Jacket Pressure: 6.2 bar (90 psi). Jacket Temperature: 260 °C (500 °F). Jacket Material of Construction: Carbon Steel. Body Only: Yes. Orientation: Vertical. Diameter: 2,438 mm (96 in). Straight Side Length: 2,743 mm (108 in). Support Type: Lugs.
