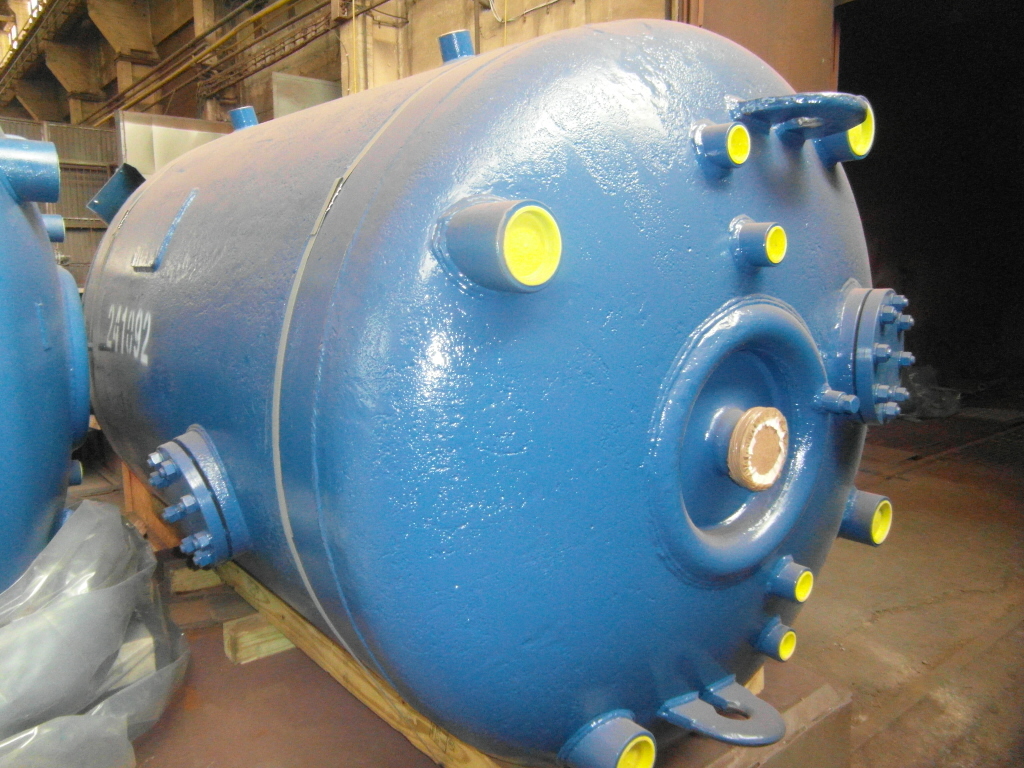

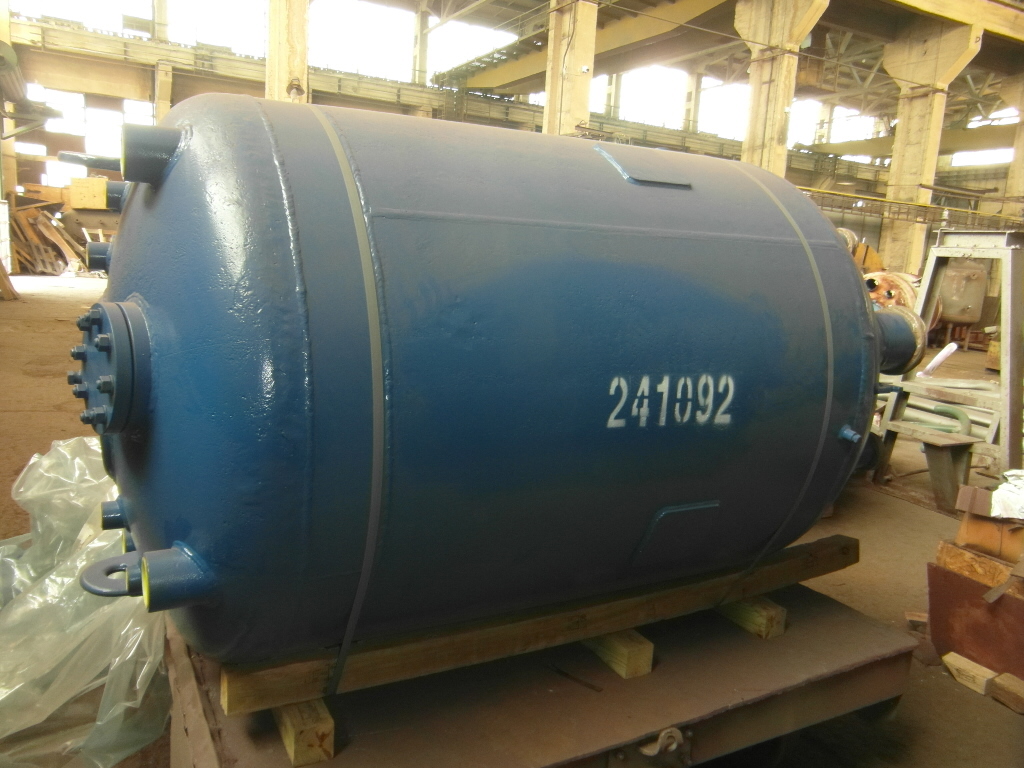

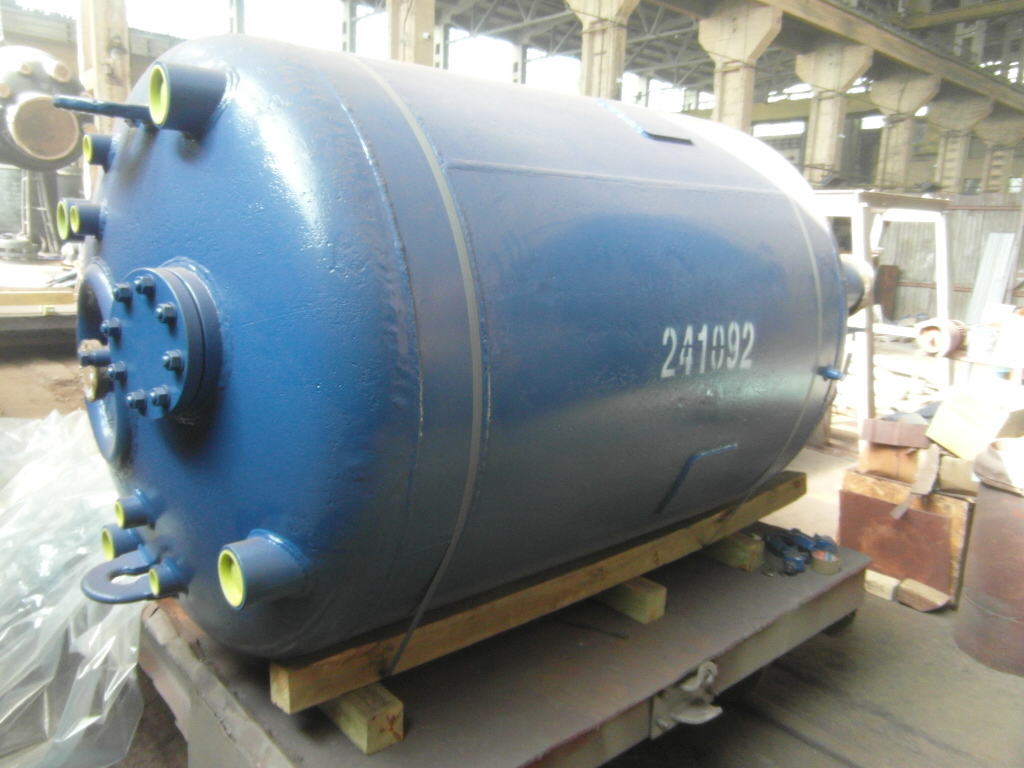

Shell rated for 100 psi/FV @ 500 degrees F. conventional jacket rated for 100 psi /FV @500 degrees F. conventional jacket MFN # 36008 head thickness=5/8, jacket thickness = 25/64"
Type: Reactor
Subtype: Batch-Type Agitated
Manufacturer: DeDietrich
Model: SA
Condition: Re-glassed
Material: Glasslined
Capacity (Design): 7,571 L (2,000 gallons)
Internal Pressure: 6.9 bar (100 psi)
Drive Serial Number 5-01440P
Internal Full Vacuum: Yes. Internal Temperature: 260 °C (500 °F). Jacket Pressure: 6.2 bar (90 psi). Jacket Temperature: 260 °C (500 °F). Jacket Material of Construction: Carbon Steel. Orientation: Vertical. Agitation: Yes. Diameter: 1,956 mm (77 in). Straight Side Length: 2,134 mm (84 in). Support Type: Legs.
Type: Reactor
Subtype: Batch-Type Agitated
Manufacturer: DeDietrich
Model: SA
Condition: Used
Material: Glasslined
Capacity (Design): 11,356 L (3,000 gallons)
Internal Pressure: 6.9 bar (100 psi)
MFR # 12269 Model SA-3000 Special three top lifting lugs, six leg couplings, four side wall lugs Shell=1 & 1/64", heads=1 & 1/64", jacket =5/8" PTE size 10 drive with an EX proof 20 HP motor and a dry seal. 36" main cover. 18" man way with pro ring and sight glass assembly with man way assist.
Internal Full Vacuum: Yes. Internal Temperature: 204.4 °C (400 °F). Jacket Pressure: 6.2 bar (90 psi). Jacket Temperature: 204.4 °C (400 °F). Orientation: Vertical. Agitation: Yes. Diameter: 2,489 mm (98 in). Straight Side Length: 1,930 mm (76 in).
Type: Reactor
Subtype: Batch-Type Agitated
Manufacturer: DeDietrich
Model: SA
Condition: Needs Reglass
Material: Glasslined
Capacity (Design): 7,571 L (2,000 gallons)
Internal Pressure: 6.9 bar (100 psi)
head thickness15/16"", jacket thickness=35/64""
Internal Full Vacuum: Yes. Internal Temperature: 260 °C (500 °F). Jacket Pressure: 6.2 bar (90 psi). Jacket Temperature: 260 °C (500 °F). Orientation: Vertical. Agitation: Yes. Diameter: 1,953 mm (76.9 in). Straight Side Length: 2,134 mm (84 in). Support Type: Legs.
Type: Reactor
Subtype: Batch-Type Agitated
Manufacturer: DeDietrich
Model: SA
Condition: Used
Material: Glasslined
Capacity (Design): 7,571 L (2,000 gallons)
Internal Pressure: 6.9 bar (100 psi)
head thickness15/16", jacket thickness=35/64" PTE 08 Drive with estimated 25 HP motor, and stuffing box for seal. 30" main cover with 14" x 18" man way, and pro ring and davit arm
Internal Full Vacuum: Yes. Internal Temperature: 260 °C (500 °F). Jacket Pressure: 6.2 bar (90 psi). Jacket Temperature: 260 °C (500 °F). Agitation: Yes. Diameter: 1,953 mm (76.9 in). Straight Side Length: 2,134 mm (84 in). Support Type: Legs.
