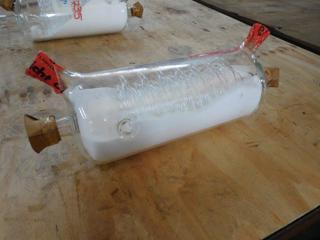

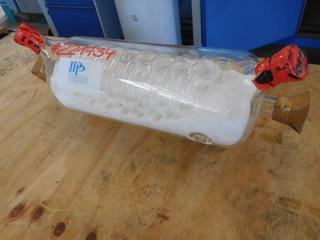

Glass QVF Corning HE-4 Spiral Heat Exchanger - IPP# 229078

Type: Heat Exchanger

Subtype: Spiral

Manufacturer: QVF

Model: HE 4

Condition: Used

Material: Glass

Heat Transfer Surface Area: 0.7 m² (7.53 ft²)

Length: 600 mm (23.6 in)

1060 mm total lengtht

Nozzle Schedule: openings (2) 15 mm tube side, (2) 50 mm shell side.

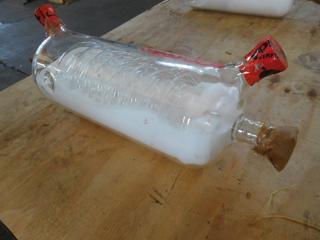

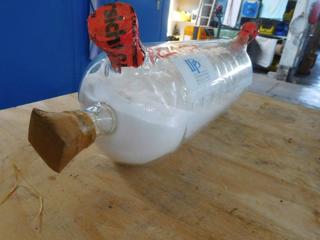

Type: Heat Exchanger

Subtype: Spiral

Manufacturer: QVF

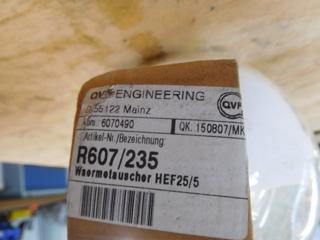

Model: HEF 25/5

Condition: Used

Material: Glasslined

Heat Transfer Surface Area: 0.5 m² (5.38 ft²)

Length: 550 mm (21.7 in)

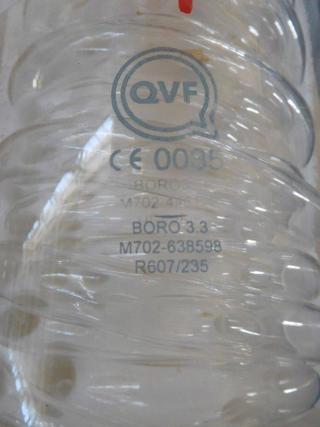

QVF BORO 3.3 M702-464595

Nozzle Schedule: openings (2) 25 mm tube side, (2) 25 mm shell side.

Type: Heat Exchanger

Subtype: Spiral

Manufacturer: Schott

Condition: Used

Material: Glass

Heat Transfer Surface Area: 0.4 m² (4.31 ft²)

Shell Material: Glasslined

QVF glass Shell & spiral tube heat exchanger

Vacuum: Yes. Spiral Material: Glasslined.

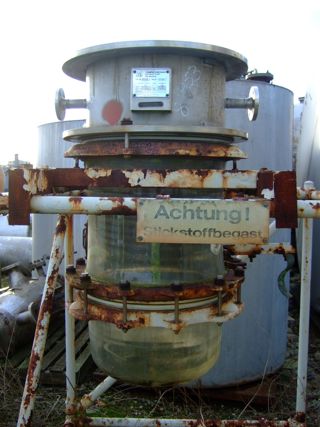

Type: Heat Exchanger

Subtype: Spiral

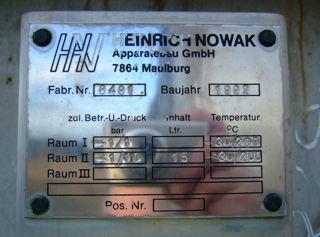

Manufacturer: QVF/Nowak

Condition: Used

Material: Glass

Heat Transfer Surface Area: 4.97 m² (53.5 ft²)

Shell Temperature: 200 °C (392 °F)

• Rated full vac @ 200 deg C
• pyrex type
• Copper coil
• (2) glass bonnets

Shell Material: Glass. Vacuum: Yes. Shell Diameter: 450 mm (17.7 in). Head Material: Glass. Length: 1,524 mm (60 in). Nozzle Schedule: 2-50mm openings. Cold-side Temperature: 200 °C (392 °F). Hot-side Temperature: 200 °C (392 °F). Spiral Material: Copper.
