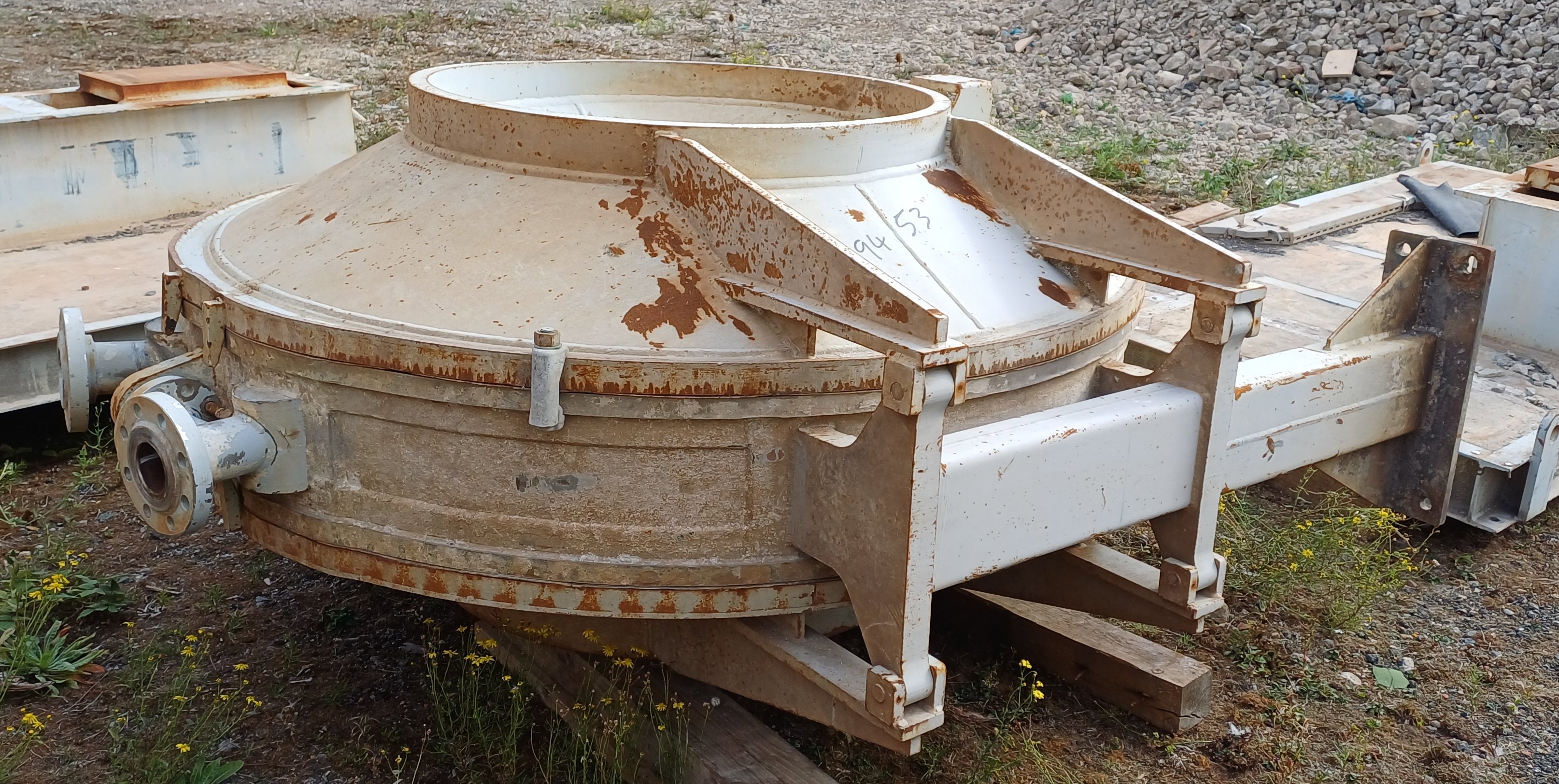

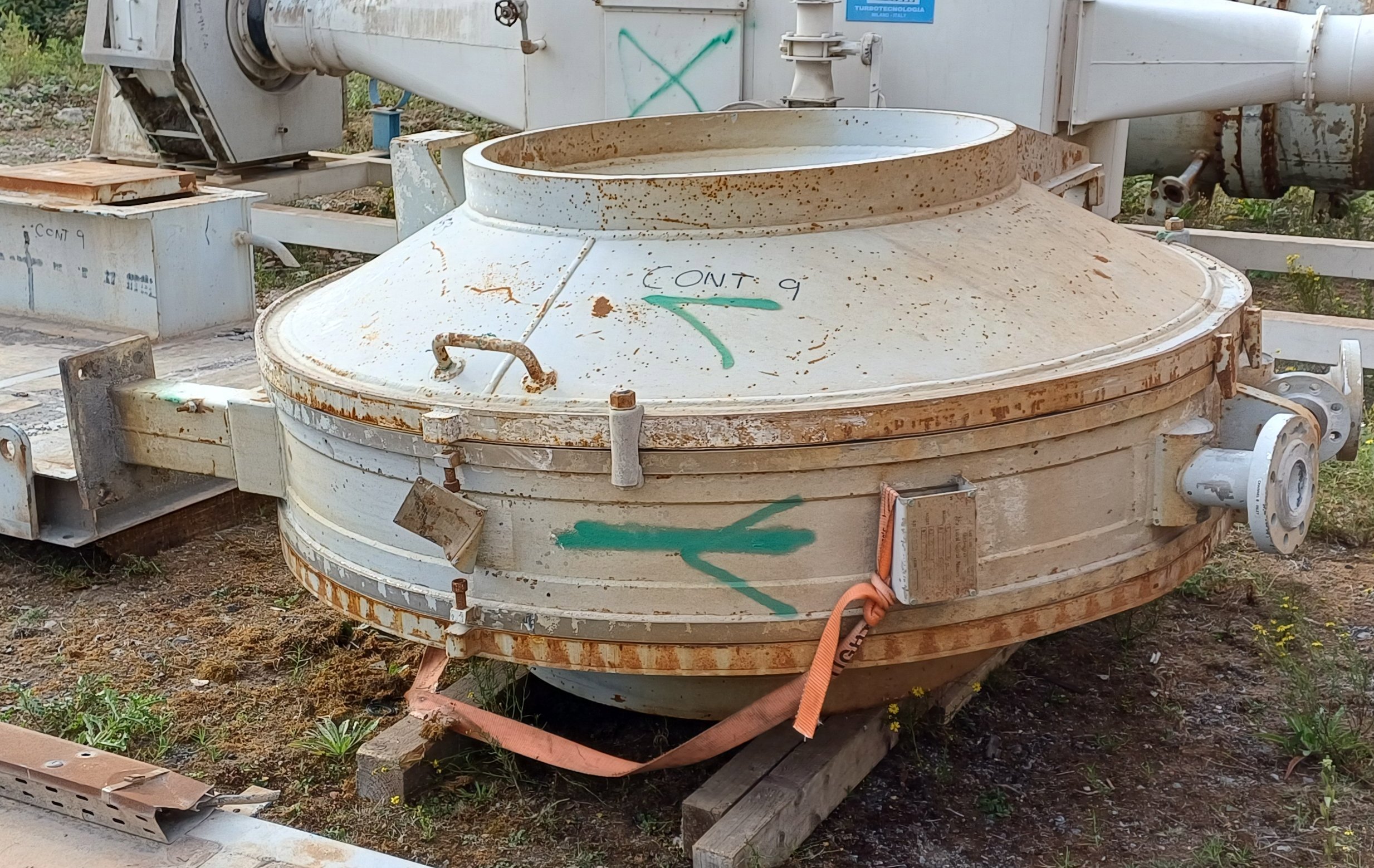

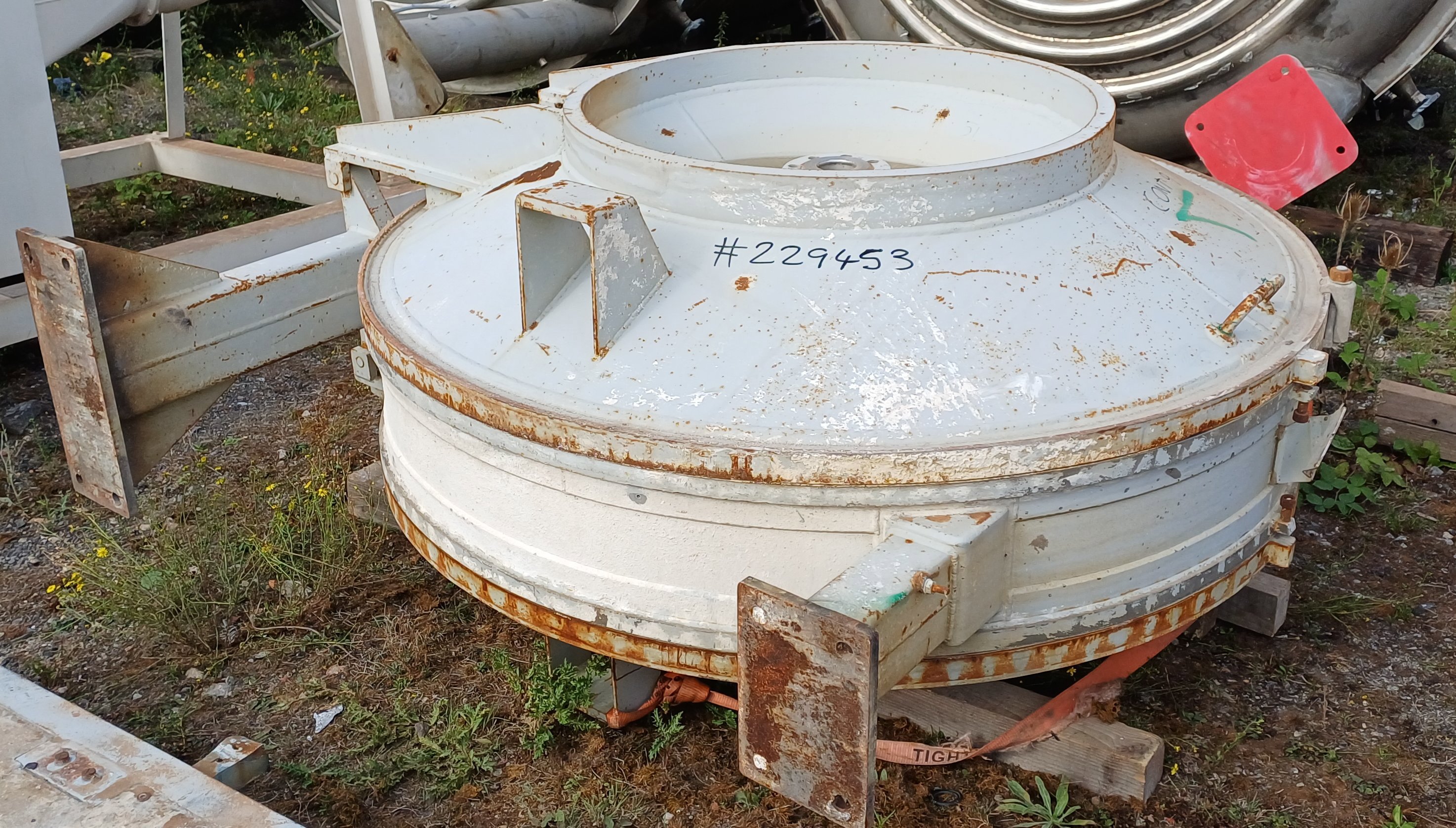

Stainless Steel 316 Spiral Heat Exchanger - IPP# 229453

Type: Heat Exchanger

Subtype: Spiral

Manufacturer: Alfa Laval

Model: Type 2-VH

Condition: Used

Material: Stainless Steel 316

Heat Transfer Surface Area: 33.9 m² (365 ft²)

Shell Pressure: 5.17 bar (75 psi)

Shell Temperature: 232 °C (450 °F). Shell Material: Stainless Steel 316. Vacuum: Yes. Head Material: Stainless Steel 316. Length: 1,829 mm (72 in). Nozzle Schedule: Openings: Head 1-36", head 1- 3". Shell 2-3".

Type: Heat Exchanger

Subtype: Spiral

Manufacturer: Alfa Laval

Model: Spiral

Condition: Used

Material: Stainless Steel 316

Heat Transfer Surface Area: 25.1 m² (270 ft²)

Shell Pressure: 3.79 bar (55 psi)

Mounted with Alfa Laval, 90 Sq.Ft., 316 SS NB # 13330 35 psi at 300 degrees F., serial # 17322 spiral heat exchanger. Total condensing surface area is 360 Sq. Ft.
Note ** 90 sq. ft. price is $13,500.00 can be sold separate .
270 sq. ft price is $ 40,500.00 can be sold separate .

Shell Temperature: 149 °C (300 °F). Shell Material: Stainless Steel 316. Vacuum: Yes. Shell Diameter: 686 mm (27 in). Head Material: Carbon Steel. Length: 2,235 mm (88 in). Nozzle Schedule: One 20", Two 4",Two 2", One 1" . Cold-side Pressure: 3.79 bar (55 psi). Cold-side Temperature: 149 °C (300 °F). Hot-side Pressure: 3.79 bar (55 psi). Hot-side Temperature: 149 °C (300 °F). Spiral Material: Stainless Steel 316.

Type: Heat Exchanger

Subtype: Spiral

Manufacturer: Alfa Laval

Model: Spiral

Condition: Used

Material: Stainless Steel 316

Heat Transfer Surface Area: 135 m² (1,450 ft²)

Shell Pressure: 4.48 bar (65 psi)

Heads are CS faced with 316 L SS

Shell Temperature: 93.3 °C (200 °F). Shell Material: Stainless Steel 316. Shell Diameter: 1,270 mm (50 in). Head Material: Carbon Steel. Length: 1,829 mm (72 in). Nozzle Schedule: Inlet 24", vent 10", Two 6", one 3", drain 1". Cold-side Pressure: 4.48 bar (65 psi). Cold-side Temperature: 93.3 °C (200 °F). Hot-side Pressure: 4.48 bar (65 psi). Hot-side Temperature: 93.3 °C (200 °F). Spiral Material: Stainless Steel 316L.

Type: Heat Exchanger

Subtype: Spiral

Manufacturer: Alfa Laval

Condition: Used

Material: Alloy 20

Heat Transfer Surface Area: 9.29 m² (100 ft²)

Shell Pressure: 10.3 bar (150 psi)

AL6XN product contact
(cover faced with ALX6N)
vertical spiral heat exchanger
Heads =0.86" thick
shell =0.135" thick.
with welded bottom cone and clamped top

Shell Temperature: 232 °C (450 °F). Shell Material: Alloy 20. Vacuum: Yes. Shell Diameter: 432 mm (17 in). Head Material: Carbon Steel. Length: 1,753 mm (69 in). Nozzle Schedule: Nozzle schedule as follows: one 10" inlet, Two 2" outlets, one 2" inlet, one 1" drain.. Cold-side Pressure: 10.3 bar (150 psi). Cold-side Temperature: 232 °C (450 °F). Hot-side Pressure: 10.3 bar (150 psi). Hot-side Temperature: 232 °C (450 °F). Spiral Material: Alloy 20.
