NEW/UNUSED Internal finish 240 grit buff polished-Bright polished external buff polish to a matte finish 10 mm thick welded dish heads (2:1) 10mm thick Coil: 114 mm OD x 4 mm thick, Limpet covers bottom dish and 2028 mm of straight-side (pitch 150mm), Span 1000mm Coil heating surface area With Insulation rings and upper drip ring. Two top lifting lugs and one tailing lug motor UL listed All nozzles have 304 SS flanges

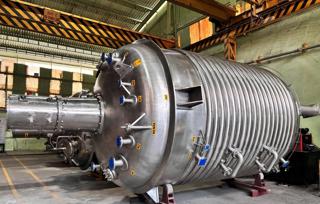

Type: Reactor
Subtype: Batch-Type Agitated
Manufacturer: Stalwart International
Condition: New
Material: Stainless Steel 316L
Capacity Design: 15,142 L (4,000 gallons)
Internal Pressure: 10 bar (145 psi)
NEW/UNUSED Internal finish 240 grit buff polished-Bright polished, external buff polish to a matte finish "U" stamped 10 mm thick welded dish heads (2:1) 12 mm thick Coil: 114 mm OD x 4 mm thick Limpet covers bottom dish and 2615 mm of straight side (pitch 150mm) Coil heating surface area With Insulation rings and upper drip ring. Two top lifting lugs and one tailing lug motor UL listed All nozzles have 304 SS flanges
Internal Full Vacuum: Yes. Internal Temperature: 150 °C (302 °F). Sanitary Construction: Yes. Jacket Pressure: 10 bar (145 psi). Jacket Temperature: 150 °C (302 °F). Jacket Material of Construction: Stainless Steel 304. Orientation: Vertical. Agitation: Yes. Diameter: 2,450 mm (96.5 in). Straight Side Length: 3,150 mm (124 in). Support Type: Lugs.
Type: Reactor
Subtype: Batch-Type Agitated
Manufacturer: Stalwart International
Condition: New
Material: Stainless Steel 316L
Capacity Design: 15,142 L (4,000 gallons)
Internal Pressure: 10 bar (145 psi)
UNUSED
Internal finish 240 grit buff polished-Bright polished, external buff polish to a matte finish. ASME NB rated, and "U" stamped.
welded dish heads (2:1) 12 mm thick
Coil: 114 mm OD x 4 mm thick,
Limpet covers bottom dish and 2615 mm of straight side (pitch 150mm). Coil heating surface area.
With Insulation rings and upper drip ring. Two top lifting lugs and one tailing lug.
20" Manhole with Cover and davit arm assist, one 6" sight glass,
Internal Full Vacuum: Yes. Internal Temperature: 150 °C (302 °F). Sanitary Construction: Yes. Jacket Pressure: 10 bar (145 psi). Jacket Temperature: 150 °C (302 °F). Jacket Material of Construction: Stainless Steel 304. Orientation: Vertical. Agitation: Yes. Diameter: 2,450 mm (96.5 in). Straight Side Length: 3,150 mm (124 in). Support Type: Lugs.
Type: Reactor
Subtype: Batch-Type Agitated
Manufacturer: Stalwart International
Model: 6000
Condition: New
Material: Stainless Steel 316L
Capacity Design: 22,712 L (6,000 gallons)
Internal Pressure: 10 bar (145 psi)
NEW/UNUSED 240 grit buff polished -Bright polished , external buff polish to matte finish.
Internal Full Vacuum: Yes. Internal Temperature: 150 °C (302 °F). Sanitary Construction: Yes. Jacket Pressure: 10 bar (145 psi). Jacket Temperature: 150 °C (302 °F). Jacket Material of Construction: Stainless Steel 304. Body Only: Yes. Orientation: Vertical. Agitation: Yes. Diameter: 2,794 mm (110 in). Straight Side Length: 3,480 mm (137 in). Support Type: Legs.
Type: Reactor
Subtype: Batch-Type Agitated
Manufacturer: Stalwart International
Condition: New
Material: Stainless Steel 316
Capacity Design: 7,571 L (2,000 gallons)
Internal Pressure: 10 bar (145 psi)
UNUSED Internal finish 240 grit buff polished-Bright polished, external buff polish to a matte finish. ASME NB rated and "U" stamped. welded dish heads (2:1) 10mm thick. Coil: 114 mm OD x 4 mm thick, Limpet covers bottom dish and 2028 mm of straight-side (pitch 150mm), Span 1000mm. Coil heating surface area. With Insulation rings and upper drip ring. Two top lifting lugs and one tailing lug 18" Manhole with Cover and davit arm assist, One 6" sight glass
Internal Full Vacuum: Yes. Internal Temperature: 150 °C (302 °F). Jacket Pressure: 10 bar (145 psi). Jacket Temperature: 150 °C (302 °F). Jacket Material of Construction: Stainless Steel 304. Orientation: Vertical. Agitation: Yes. Diameter: 2,000 mm (78.7 in). Straight Side Length: 2,400 mm (94.5 in). Support Type: Lugs.
