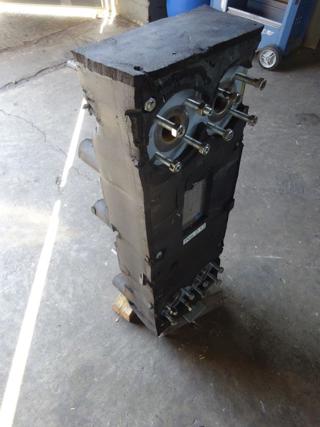

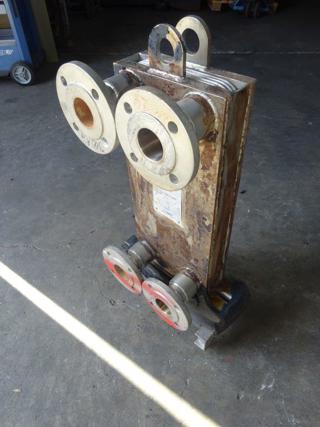

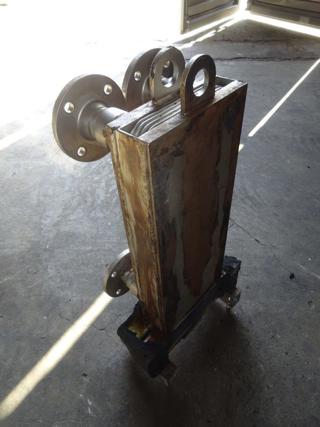

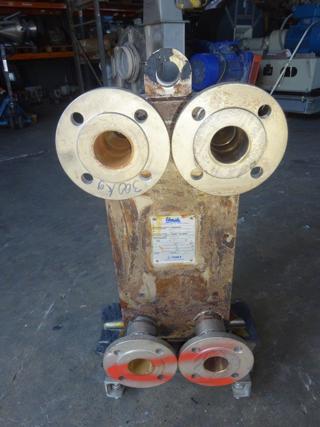

Titanium API Schmidt-Bretten, Germany Sigma M25 S NBL Plate and Frame Heat Exchanger - IPP# 231037

Type: Heat Exchanger

Subtype: Plate and Frame

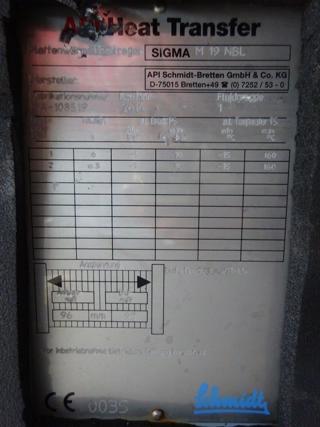

Manufacturer: API Schmidt-Bretten, Germany

Model: SIGMA M-19-NBL

Condition: Used

Material: Stainless Steel 316

Heat Transfer Surface Area: 6.1 m² (65.7 ft²)

Cold-side Pressure: 10 bar (145 psi)

150kw pressure on both sides -1 /10 bar @ -15/160 degrees C (6/6.3 liter), CE0035 certified

Cold-side Temperature: 160 °C (320 °F). Hot-side Pressure: 10 bar (145 psi). Hot-side Temperature: 160 °C (320 °F). Number of Plates: 34.

Type: Heat Exchanger

Subtype: Plate and Frame

Manufacturer: API Schmidt-Bretten, Germany

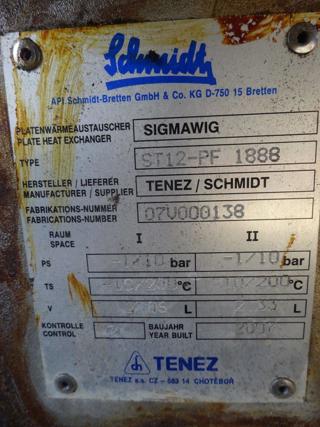

Model: Sigmawig ST12-PF 1888

Condition: Used

Material: Stainless Steel 316

Heat Transfer Surface Area: 1.9 m² (20.5 ft²)

Number of Plates: 16

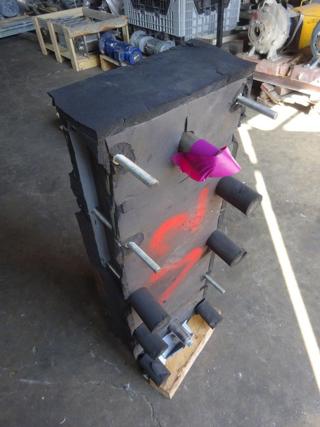

pressure side A -1 /10 bar @ -10/200 degrees C (2.06 liter) side B -1/10 bar @ -10/200 degrees C (2.33 liter), fully insulated

Type: Heat Exchanger

Subtype: Plate and Frame

Manufacturer: API Schmidt-Bretten, Germany

Model: Sigmawig ST12-VBN

Condition: Used

Material: Stainless Steel 316

Heat Transfer Surface Area: 3.1 m² (33.4 ft²)

Cold-side Pressure: 10 bar (145 psi)

pressure on both sides -1/10 bar @ -10/200 degrees C (2.9/3.2 liter) 150kw fully insulated,

Cold-side Temperature: 200 °C (392 °F). Hot-side Pressure: 10 bar (145 psi). Hot-side Temperature: 200 °C (392 °F). Number of Plates: 24.

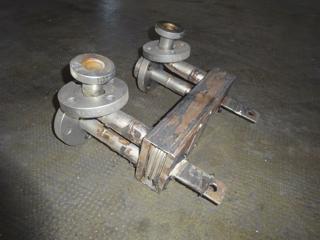

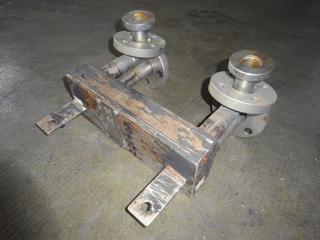

Type: Heat Exchanger

Subtype: Plate and Frame

Manufacturer: API Schmidt-Bretten, Germany

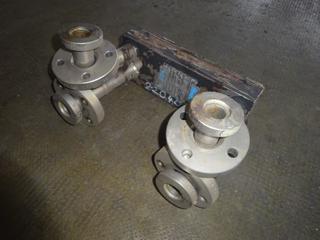

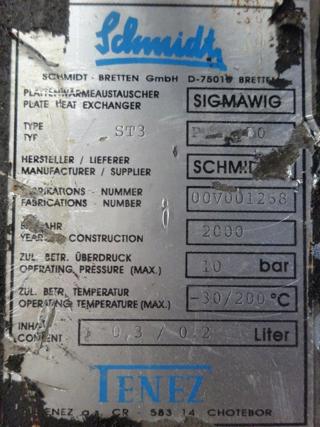

Model: SIGMAWIG ST 3 VDN

Condition: Used

Material: Stainless Steel 316

Heat Transfer Surface Area: 0.2 m² (2.2 ft²)

Nozzle Schedule: - Openings: inlet 2-DN25, outlet 2-DN25

SCHMIDT plate heat exchanger Volume: 0.3/0.2 liter (12) 36L stainless steel (1.44.01) plates.

Cold-side Pressure: 10 bar (145 psi). Cold-side Temperature: 200 °C (392 °F). Hot-side Pressure: 10 bar (145 psi). Hot-side Temperature: 200 °C (392 °F). Housing Material: Stainless Steel 316. Number of Plates: 12.
