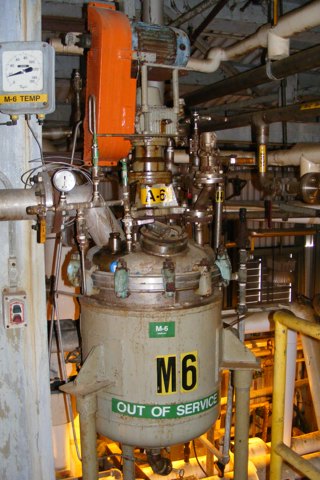

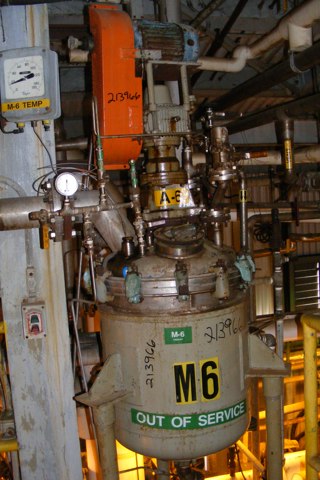

Stainless Steel 316 Batch-Type Agitated Reactor - IPP# 233189

Type: Reactor

Subtype: Batch-Type Agitated

Manufacturer: Chem Pro

Condition: Used

Material: Stainless Steel 316

Capacity (Design): 113.6 L (30 gallons)

Internal Pressure: 3.4 bar (50 psi)

with Pfaudler 2.5 TW drive. 1/4" sid wall and bottom head, CS 2 zone straight jacket. Top Mounted 2.5 TW drive belt driven by approx 1 hp motor.

Internal Temperature: 260 °C (500 °F). Jacket Pressure: 3.1 bar (45 psi). Jacket Temperature: 260 °C (500 °F). Agitation: Yes. Diameter: 812.8 mm (32 in). Straight Side Length: 838.2 mm (33 in). Support Type: Legs.

Type: Reactor

Subtype: Batch-Type Agitated

Condition: Used

Material: Stainless Steel 316

Capacity (Design): 757.1 L (200 gallons)

Jacket Material of Construction: Carbon Steel

• With Lightnin, 1.5 hp mixer.
• 1" jacket supply and return lines.

Orientation: Vertical. Diameter: 965.2 mm (38 in). Straight Side Length: 914.4 mm (36 in). Support Type: Legs.

Type: Reactor

Subtype: Batch-Type Agitated

Manufacturer: Hamilton Kettle

Condition: Used

Material: Stainless Steel 316

Capacity (Design): 5,678 L (1,500 gallons)

Internal Pressure: 3.4 bar (50 psi)

• sanitary reactor body,
• Wall thickness: 0.25" thick side wall, 0.220" thick top head, 0.218" thick bottom head
• Sanitary construction, vessel and jacket are insulated and covered with a SS shroud.
• Previously used for creams and lotions processing.

Internal Full Vacuum: Yes. Internal Temperature: 138.3 °C (281 °F). Sanitary Construction: Yes. Jacket Pressure: 10.4 bar (151 psi). Jacket Temperature: 148.9 °C (300 °F). Jacket Material of Construction: Stainless Steel 304. Body Only: Yes. Diameter: 1,930 mm (76 in). Straight Side Length: 1,702 mm (67 in). Support Type: Legs.

Type: Reactor

Subtype: Batch-Type Agitated

Manufacturer: Cream City Boiler

Condition: Used

Material: Stainless Steel 316

Capacity (Design): 2,839 L (750 gallons)

Internal Pressure: 10.3 bar (150 psi)

• Top Head 9/16", Bottom Head 1 3/16"; CS jacket 9/16" thick.Top mounted Lightnin drive, Model 85-5-40, 9.33 to 1 ratio,Direct coupled to a 5 HP 3/60/230/460 volt 1765 rpm motor, 180 RPM output.(4) blade pitched paddle mid shaft, 4 blade flat turbine on bottom, (4) baffles on side wall.

Internal Temperature: 148.9 °C (300 °F). Jacket Pressure: 10.3 bar (150 psi). Jacket Temperature: 148.9 °C (300 °F). Jacket Material of Construction: Carbon Steel. Orientation: Vertical. Agitation: Yes. Diameter: 1,676 mm (66 in). Straight Side Length: 1,448 mm (57 in). Support Type: Lugs.
