Type: Scrubber
Manufacturer: Schutte & Koerting
Model: NH3, N2, Toluene, HCl, & SOC vapors
Condition: Used
Material: Carbon Steel
Air Flow Rate: 139.3 m3/h (82 CFM)
Height: 2,692 mm (106 in)

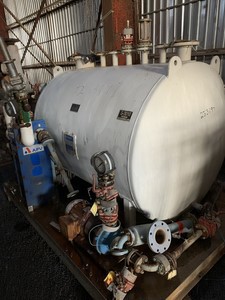

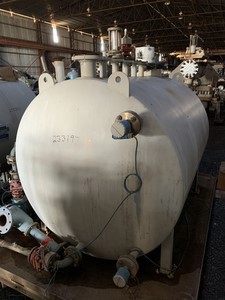

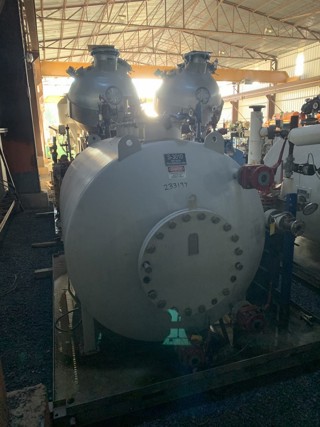

82 acfm- 28 acfm 4”- 48” Packaged scrubber system Designed to handle an 82 acfm gas stream of NH3, N2 and toluene vapor at 15” wc It will also handle 28 acfm of 100 #/hrHCL and 180 #/hr of SOC12 vapor The system uses various recirculation streams depending on the vapors and removes 95-85% of the vapors depending on the conditions The system utilizes CS construction for the tank and column, lined with “Flouroshield” Teflon, and also included are a recirculation pump and heat exchanger mag drive and a Tefzel liner Ex. Proof motor The column packing is Hi flow 5/8” rings manufactured from PFA Teflon, With an Otto York mist eliminator. Complete package system base mounted on a CS base 8’ long x 6’ wide Top of the column is 106” high
Width: 1.83 m (6 ft). Liquid Flow Rate: 13,628 L/h (60 GPM). Pressure: 0.34 bar (5 psi). Removal Rate Percentage: 95. Temperature: 93.3 °C (200 °F).
Type: Scrubber
Manufacturer: Schutte & Koerting
Condition: Used
Material: Carbon Steel
Air Flow Rate: 139.3 m3/h (82 CFM)
Height: 2,692 mm (106 in)
Vapors handled: NH3, N2, toluene vapor, 100 #/hr HCL, 180 #/hr SOC12 vapor
Width: 2.1 m (7 ft). Liquid Flow Rate: 13,628 L/h (60 GPM). Pressure: 0.04 bar (0.54 psi). Removal Rate Percentage: 95. Packing: Yes. Packing Type: Other. Packing Amount: 141.6 L (5 ft3).
Type: Scrubber
Manufacturer: Schutte & Koerting
Condition: Used
Material: Lined
Air Flow Rate: 139.3 m3/h (82 CFM)
Height: 2,692 mm (106 in)
Vapors handled: NH3, N2, toluene vapor, 100 #/hr HCL, and 180 #/hr SOC12 vapor The system uses various recirculation streams depending on the vapors and removes 95-85% of the vapors depending on the conditions. The system utilizes CS construction for the tank and column, lined with “Flouroshield” Teflon, and also included are a recirculation pump and heat exchanger. The system design rating is FV/5 psig at 5-200 degrees F. The pump is a Gould’s size 1 x 1.5 x 8, model 3298, mag drive, and a Tefzel liner, driven by a 7.5 hp. Ex. Proof motor The heat exchanger is an APV Model SRS MS-12 with Hastelloy C-276 wetted parts and a surface area of 101.8 Sq.Ft. The column packing is Hi flow 5/8” rings manufactured from PFA Teflon, With an Otto York mist eliminator Complete package system base mounted on a CS base 9’ long x 7’ wide. Top of the column is 106” high.
Width: 1.83 m (6 ft). Liquid Flow Rate: 13,628 L/h (60 GPM). Pressure: 0.34 bar (5 psi). Removal Rate Percentage: 95. Temperature: 93.3 °C (200 °F). Packing: Yes. Packing Type: Other. Packing Amount: 141.6 L (5 ft3).
