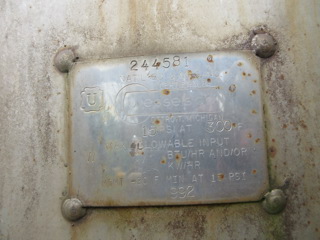

Column is 4 sections bolted together. (bottom section is IPP # 246702) Price includes bottom section 246702 Packing is Norton 316L SS 1" pall Ring "Hy-Pak", support assemblies are Norton #818 and Liquid distributer is Norton # 845. Height: 11,709 mm (461 in). Width: 4.9 m (16 ft). Pressure: 1.03 bar (15 psi). Temperature: 148.9 °C (300 °F). Packing: Yes. Packing Type: Metal Pall Ring. Packing Amount: 2,039 L (72 ft3).
glass scrubber system consisting of (1) Schott QVF packed column, 165mm diameter x 2m high, (1) Schott QVF glass packed column, 225mm diameter x 2m high, Height: 2,000 mm (78.7 in). Width: 0.17 m (0.54 ft).

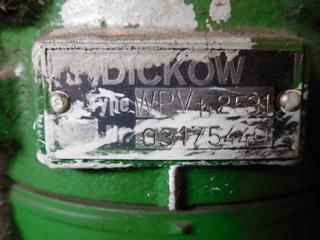

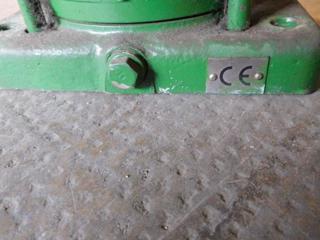

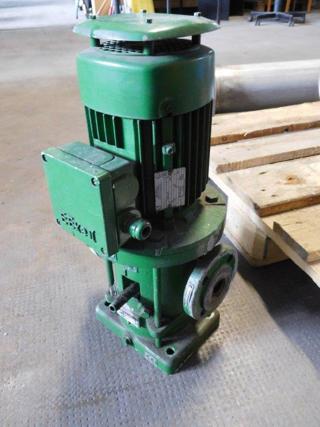

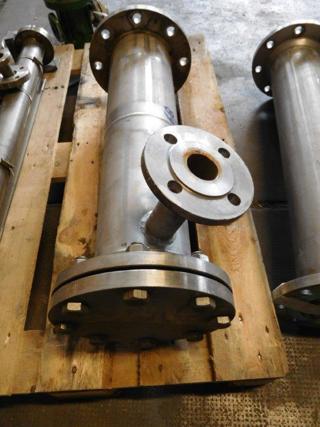

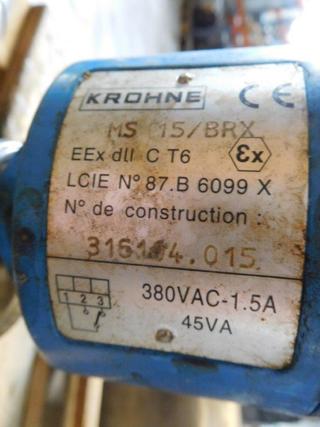

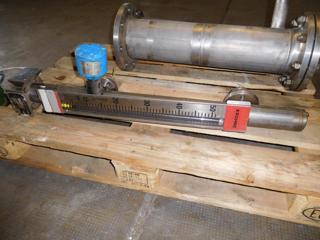

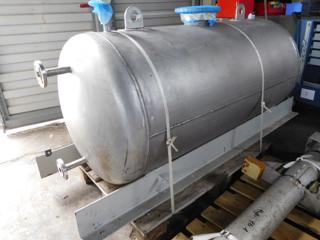

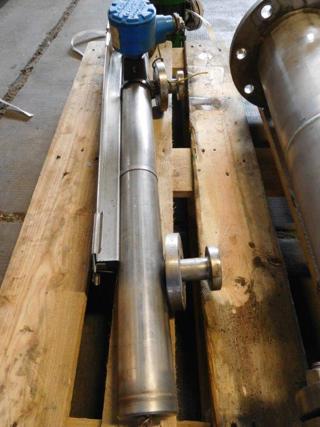

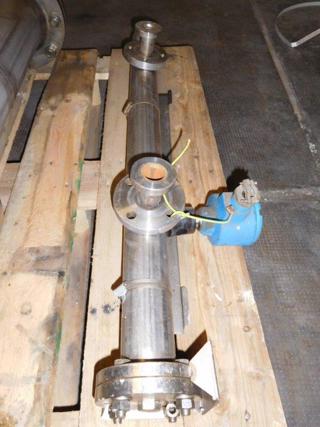

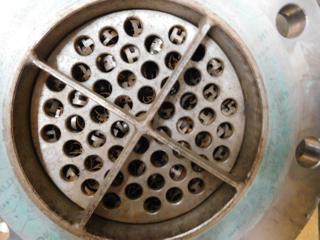

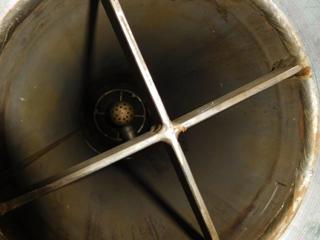

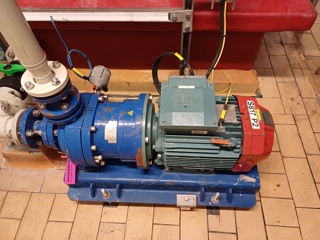

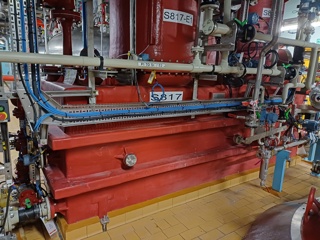

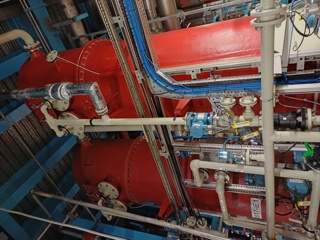

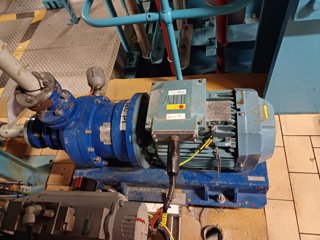

exhaust air scrubber, pressure rated -1/0,5bar @ -10/160 degrees C, mounted on a carbon steel frame with a 150 mm diameter stainless steel body scrubber column with carbon steel rushig rings pressure rated 6bar@ 50 degrees C, with a pump, manufactured by Dickow, type WPVh2561, serial number 03175440 motor type FFD80K4FDS/6612 motor and pump are CE stamped. Air Flow Rate: 0.3 m3/h (0.18 CFM). Width: 0.15 m (0.49 ft). Pressure: 0.5 bar (7.3 psi). Temperature: 160 °C (320 °F).
Typical operating conditions: Recirculation to VF573 is 15-21 GPM. Recirculation to VF572 is 0.5-0.7 GPM 10% Naoh is make up to VF574 (not supplied) Discharge stream dependent on pH and temperature.
Fiberglass (Derakane 470), acid mist scrubbing system. Designed to treat acid laden fumes prior to atmospheric discharge. Manufactured by Celicote, model SPT-12-60. Rated for -2” WC to +6” WC up to 150 degrees F. Major components are tower VF573, VF574, tower VF 572, and pumps, IPP stock numbers 233893 and 233896 Tower VF573 is Fiberglass Derakane 470, and bolts by a flange to vessel VF574 Its specifications are 24” diameter x 186” overall length. Flange for bolting to tank is 24”. Side mounted nozzles are one 9”, two 8”,two 4.25”, and two 4” Outlet flange is 6”. This column is packed with saddles. Recirculation tank (VF574) is fiberglass (Derakane 470) , and has a capacity of 1200 gallons It is 64” diameter x 105” long with dished heads , and has the following nozzles: One 24” nozzle for VF573, one 19” top nozzle, two 5” nozzles, one 3” nozzle and four 1.5” nozzles Secondary gas stream flow is handled by VF572, Derakane 470, packed tower containing plastic tellerettes This tower is 15” diameter x 151” long, and has one 6” nozzle, two 4” nozzles, three 1.5” nozzles, and one 1” nozzle. Recirculation is handled by a Teflon lined centrifugal pumps, (IPP stock numbers 233896 & 233893) one is operational and the other an in line spare.
Their specs are as follows: 160 GPM at 80 Ft./Hd., Teflon lined wetted end, horizontal centrifugal pump. Manufactured by Durco. Mark II Serial # 0605-2071. 3 x 2 x 10 with a mechanical seal on shaft. Base mounted and direct driven. Powered by a Reliance Duty Master 10 HP AC motor. rated for 1755 rpm, 230/460 volt, 23.8/11.9 amp, 3 phase 60 Hz. TEFC Enclosure. Frame L 215 T. 50" long x 22" wide x 22" high. Typical operating conditions are as follows: Recirculation to VF573 is 15-21 GPM. Recirculation to VF572 is 0.5-0.7 GPM. 10% Naoh is make up to VF574.(not supplied) Discharge stream dependent on pH an temperature. Blowers not available but can be supplied separately. Air Flow Rate: 203.9 m3/h (120 CFM). Liquid Flow Rate: 36,340 L/h (160 GPM). Pressure: 0.015 bar (0.22 psi). Removal Rate Percentage: 80. Temperature: 65.6 °C (150 °F). Packing: Yes. Packing Type: Plastic Tellerete. Packing Amount: 424.8 L (15 ft3).

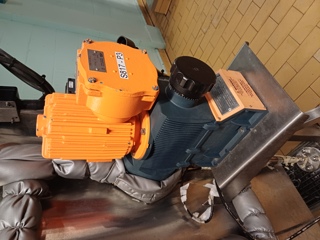

Vapors handled: NH3, N2, toluene vapor, 100 #/hr HCL, and 180 #/hr SOC12 vapor The system uses various recirculation streams depending on the vapors and removes 95-85% of the vapors depending on the conditions. The system utilizes CS construction for the tank and column, lined with “Flouroshield” Teflon, and also included are a recirculation pump and heat exchanger. The system design rating is FV/5 psig at 5-200 degrees F. The pump is a Gould’s size 1 x 1.5 x 8, model 3298, mag drive, and a Tefzel liner, driven by a 7.5 hp. Ex. Proof motor The heat exchanger is an APV Model SRS MS-12 with Hastelloy C-276 wetted parts and a surface area of 101.8 Sq.Ft. The column packing is Hi flow 5/8” rings manufactured from PFA Teflon, With an Otto York mist eliminator Complete package system base mounted on a CS base 9’ long x 7’ wide. Top of the column is 106” high. Air Flow Rate: 139.3 m3/h (82 CFM). Height: 2,692 mm (106 in). Width: 1.83 m (6 ft). Liquid Flow Rate: 13,628 L/h (60 GPM). Pressure: 0.34 bar (5 psi). Removal Rate Percentage: 95. Temperature: 93.3 °C (200 °F). Packing: Yes. Packing Type: Other. Packing Amount: 141.6 L (5 ft3).
82 acfm- 28 acfm 4”- 48” Packaged scrubber system Designed to handle an 82 acfm gas stream of NH3, N2 and toluene vapor at 15” wc It will also handle 28 acfm of 100 #/hrHCL and 180 #/hr of SOC12 vapor The system uses various recirculation streams depending on the vapors and removes 95-85% of the vapors depending on the conditions The system utilizes CS construction for the tank and column, lined with “Flouroshield” Teflon, and also included are a recirculation pump and heat exchanger mag drive and a Tefzel liner Ex. Proof motor The column packing is Hi flow 5/8” rings manufactured from PFA Teflon, With an Otto York mist eliminator. Complete package system base mounted on a CS base 8’ long x 6’ wide Top of the column is 106” high Air Flow Rate: 139.3 m3/h (82 CFM). Height: 2,692 mm (106 in). Width: 1.83 m (6 ft). Liquid Flow Rate: 13,628 L/h (60 GPM). Pressure: 0.34 bar (5 psi). Removal Rate Percentage: 95. Temperature: 93.3 °C (200 °F).
Gas stream: NH3, N2, toluene vapor (82 acfm at 15" wc), HCL (28 acfm at 100#/hr), SOC12 vapor (180#/hr) Tank and column construction: CS construction, lined with "Flouroshield" Teflon Air Flow Rate: 139.3 m3/h (82 CFM). Height: 2,692 mm (106 in). Width: 1.83 m (6 ft). Liquid Flow Rate: 13,628 L/h (60 GPM). Pressure: 0.04 bar (0.58 psi). Removal Rate Percentage: 95. Packing: Yes. Packing Type: Metal Pall Ring.
Vapors handled: NH3, N2, toluene vapor, 100 #/hr HCL, 180 #/hr SOC12 vapor Air Flow Rate: 139.3 m3/h (82 CFM). Height: 2,692 mm (106 in). Width: 2.1 m (7 ft). Liquid Flow Rate: 13,628 L/h (60 GPM). Pressure: 0.04 bar (0.54 psi). Removal Rate Percentage: 95. Packing: Yes. Packing Type: Other. Packing Amount: 141.6 L (5 ft3).
1.4m diameter Polypropylene scrubber column system, manufactured by Malaguti Impianti, 4500 m3/hr flow, column capacity 1500 liter, coned top, flat bottom, internal spray pipes, pipework, Air Flow Rate: 4,500 m3/h (2,649 CFM). Height: 5,000 mm (196.9 in). Width: 1,400 m (4,593 ft). Temperature: 35 °C (95 °F). Packing: Yes.
Using caustic to scrub acid. Fan was removed, we can replace it. Packed section 4.5 feet, with structured mesh packing. Multiple spray bars at top of tower, 3" feed/spray line, 4" return line. 14" gas inlet. Scrubber fan speed 3600 rpm. Air Flow Rate: 611.6 m3/h (360 CFM). Height: 9,144 mm (360 in). Width: 0.7 m (2.3 ft). Liquid Flow Rate: 22,713 L/h (100 GPM). Pressure: 0.97 bar (14 psi). Temperature: 54.4 °C (130 °F). Packing: Yes. Packing Type: Structured.
Used Processing Plant Equipment
Scrubbers are used to remove particles from a gas. Water is often used as the scrubbing agent, but other liquids may be employed.
The simplest type of scrubber is a spray tower. Liquid droplets are produced by spray nozzles at the top of the tower and are allowed to settle through the rising gas stream. Scrubber towers can also be packed or have impingement plates.
Venturi scrubbers use co-current water jets from spray nozzles to both scrub the gas and to provide the draft for moving the gas. No fan is required but water must pump in sufficient volume and at high enough pressure to provide both adequate draft and enough contacting power for the required scrubbing operation.
Mechanical scrubbers have a power driven rotor that produces the fine spray and the contacting of gas and liquid. As in the other types of scrubbers it is the droplets that are the principal collecting bodies for the dust particles. An entrainment separator must be used to prevent carry-over of spray.
