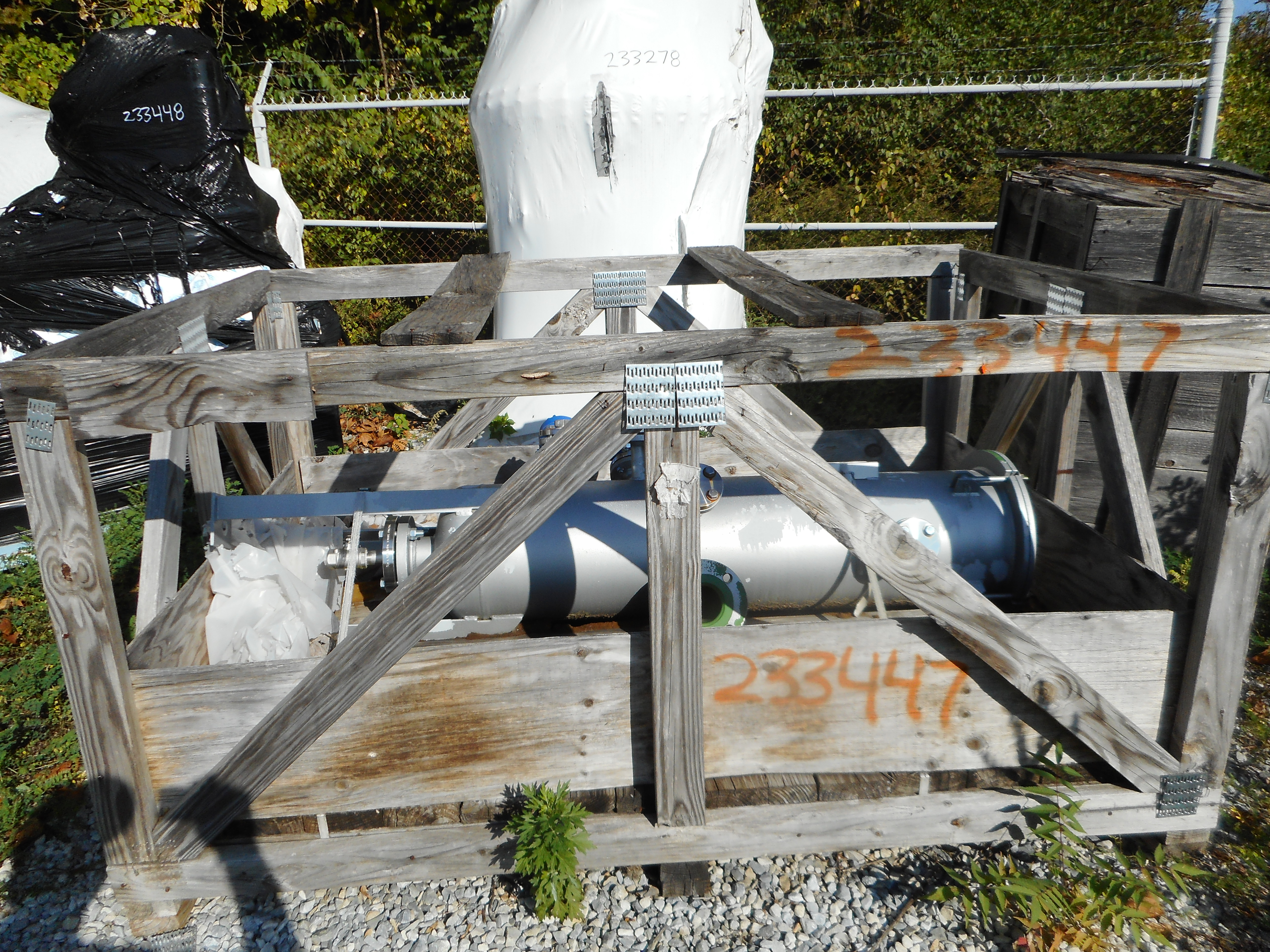

Carbon Steel Filter - IPP# 233447

Type: Filter

Subtype: Cartridge And Candle

Manufacturer: Crall Products

Model: 28-12-736-SST

Condition: Unused

Material: Carbon Steel

Filtration Area: 18.6 m² (200 ft²)

Diameter: 711.2 mm (28 in)

cartridge filter MDMT is 0 degrees F at 150 psi Inlet and outlet piping is 3" weld neck flange Filter has swing arm for removing the head. Shell thickness is .250" Head Thickness is .250" Hydro Test to 195 psi. Ext PSI 50 psi at 300 degree F

Pressure: 10.3 bar (150 psi). Temperature: 148.9 °C (300 °F).

Type: Filter

Subtype: Cartridge And Candle

Manufacturer: Breidenbach-Masch

Model: 22V-4/160-5F-S

Condition: Used

Material: Carbon Steel

Filtration Area: 1.6 m² (17.2 ft²)

Diameter: 600 mm (23.6 in)

(4) stainless steel (1.4571) 175mm diameter x 700mm long filter elements

Orientation: Vertical. Pressure: 6 bar (87 psi). Temperature: 350 °C (662 °F). Cake Volume: 385 m3 (13,596 ft3).

Type: Filter

Subtype: RO and Ultra RO

Manufacturer: Membrane systems

Model: 413

Condition: Used

Material: Carbon Steel

Pressure: 41.4 bar (600 psi)

Temperature: 48.9 °C (120 °F)

reverse osmosis skid With six Code line chambers 1.5" inlet line rated for 40-70 degrees F inlet at 60 psi max.

Type: Filter

Subtype: Cartridge And Candle

Manufacturer: Global Filtration Systems

Model: GE-1254-AL2-2X 2R

Condition: Used

Material: Carbon Steel

Filtration Area: 2.8 m² (30 ft²)

Diameter: 304.8 mm (12 in)

PVC housings Complete with back pulse valves, pipe and fittings

• Filters .5 micron
• One pass media

Orientation: Horizontal. Temperature: 43.3 °C (110 °F).
