Glasslined DeDietrich SA Batch-Type Agitated Reactor - IPP# 233668

Type: Reactor

Subtype: Batch-Type Agitated

Manufacturer: DeDietrich

Model: SA

Condition: Used

Material: Glasslined

Capacity (Design): 15,142 L (4,000 gallons)

Internal Pressure: 6.9 bar (100 psi)

Internal Full Vacuum: Yes. Internal Temperature: 232.2 °C (450 °F). Jacket Pressure: 6.2 bar (90 psi). Jacket Temperature: 260 °C (500 °F). Orientation: Vertical. Agitation: Yes. Diameter: 2,438 mm (96 in). Straight Side Length: 2,743 mm (108 in).

Type: Reactor

Subtype: Batch-Type Agitated

Manufacturer: DeDietrich

Model: SA

Condition: Used

Material: Glasslined

Capacity (Design): 15,142 L (4,000 gallons)

Internal Pressure: 6.9 bar (100 psi)

SA Series

Internal Full Vacuum: Yes. Internal Temperature: 260 °C (500 °F). Jacket Pressure: 6.2 bar (90 psi). Jacket Temperature: 260 °C (500 °F). Jacket Material of Construction: Carbon Steel. Body Only: Yes. Orientation: Vertical. Diameter: 2,438 mm (96 in). Straight Side Length: 2,743 mm (108 in). Support Type: Lugs.

Type: Reactor

Subtype: Batch-Type Agitated

Manufacturer: DeDietrich

Model: SA

Condition: Used

Material: Glasslined

Capacity (Design): 22,712 L (6,000 gallons)

Internal Pressure: 6.9 bar (100 psi)

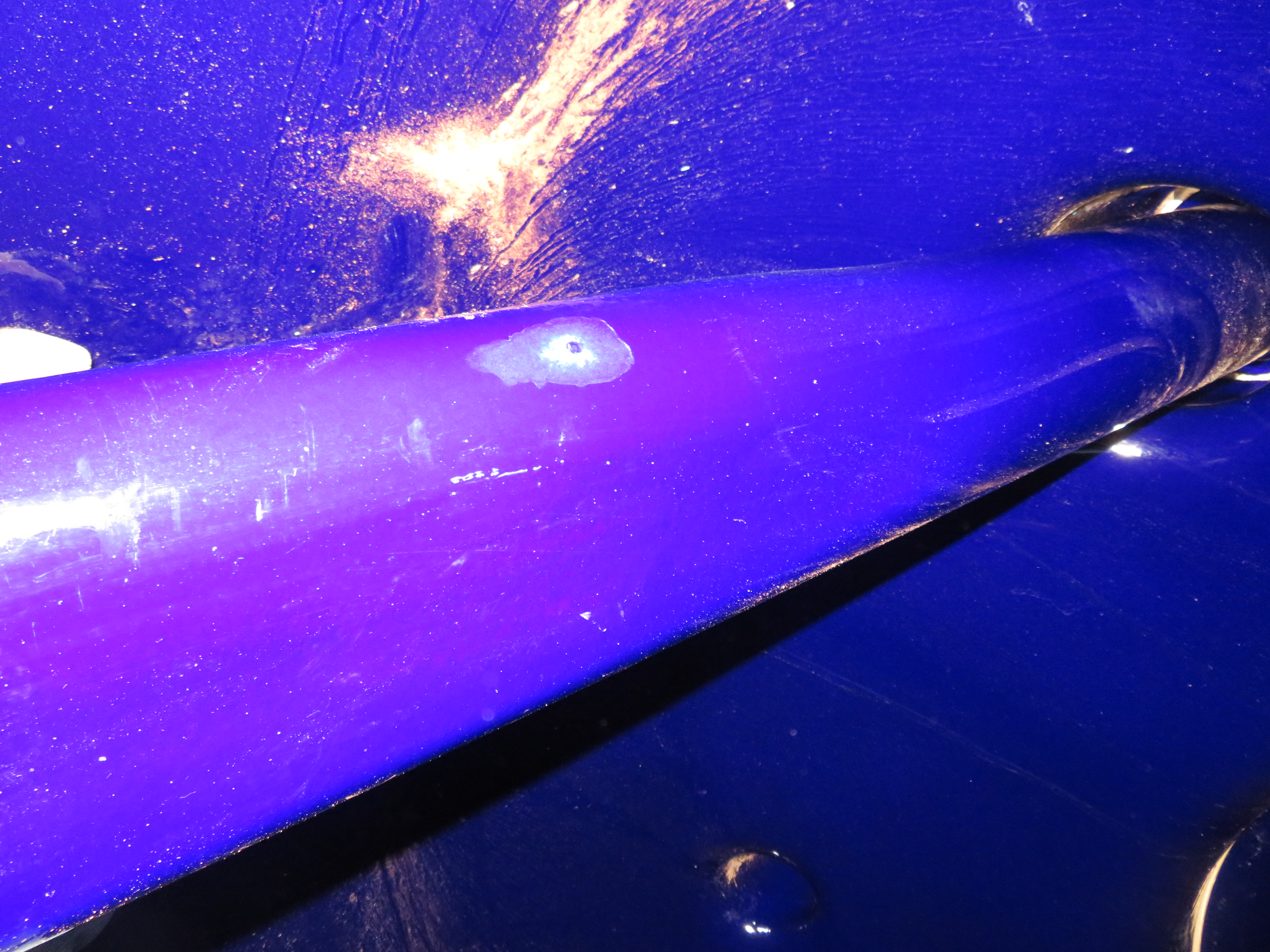

base reactor with main cover, agitator shaft and baffle MFRG # 30266

Internal Temperature: 204.4 °C (400 °F). Jacket Pressure: 6.2 bar (90 psi). Jacket Temperature: 204.4 °C (400 °F). Agitation: Yes. Support Type: Lugs.

Type: Reactor

Subtype: Batch-Type Agitated

Manufacturer: DeDietrich

Model: SA

Condition: Used

Material: Glasslined

Capacity (Design): 3,785 L (1,000 gallons)

Internal Pressure: 6.9 bar (100 psi)

Glass type: 3009 Series 60 Total weight for complete reactor 9940 lbs.

Internal Full Vacuum: Yes. Internal Temperature: 260 °C (500 °F). Jacket Pressure: 6.2 bar (90 psi). Jacket Temperature: 260 °C (500 °F). Agitation: Yes. Diameter: 1,600 mm (63 in). Straight Side Length: 1,778 mm (70 in). Support Type: Lugs.
