Unused Stainless Steel 316L Dryer-Fluid Bed 280 L (74 gallons) For Sale - IPP# 233968

Type: Dryer-Fluid Bed

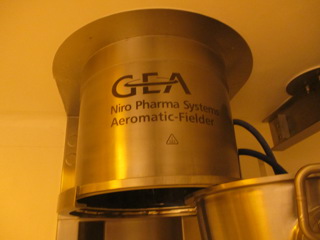

Manufacturer: GEA

Model: Pharmadule MP2/3-K2-F1/2

Condition: Unused

Material: Stainless Steel 316

Capacity: 160 L (42.3 gallons)

Air Flow Rate: 670 m3/h (394.3 CFM)

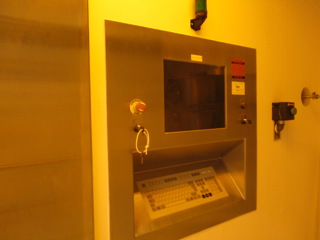

Documentation shows Mills but we did not get some of them. With spare product containers. (read below) 60 kg Explosion shock resistant fluid bed dryer. Designed for cGMP production, it is a contained system, and can be used for other process’ such as food agglomeration and drying Model - MP2/3-K2-F1/2 Rated for Maximum absolute pre pressure of 11 bar and Maximum explosion over pressure of 12 bar Total volume 610 liters typical working volume is 18-160 liters based on the allowable product density of 1500 kg/m This fluid bed dryer was designed for Pharmaceutical service and features sanitary design and clean in place With wet and dry loading ports, internal lighting, and sample ports Designed for liquid/binder addition, it includes the Peristaltic transfer pump. This dryer is part of a contained system, product never reaches outside the unit. It is also integrated to work with products upstream and downstream. Designed for easy and quick cleaning and changeovers, the clean in place and all the operations are completely automated, and can be controlled at a local operator station Air handling is achieved with a custom manufactured unit by ZAir, Type SKG-4,2 507-68273-1 Manufactured of 304 SS construction, it’s rated for 130-670 m3/Hr. at 20-80 degrees C This unit handles all the air heating, cooling, and humification duties The Main fan is driven by a 12.7 kW AC motor, and it also has a HEPA filter This unit is complete with all filters, and accessories High shear granulator available (IPP Stock # 233967. This unit also has spare product containers. Product containers are FBP 07304A.FBP101, # 001, built 2019, with Product container trolly. FBP 07304A.FBP101, # 002, built 2019, with Product container trolly. FBP 07304A.FBP101, # 003, built 2019, with Product container trolly Unit comes with one product container, all other additional equipment is available at an additional cost

Pressure: 12 bar (174 psi). Temperature: 100 °C (212 °F). Clean in Place: Yes. Bowl Diameter: 650 mm (25.6 in). Bowl Height: 1,000 mm (39.4 in). Orientation: Vertical. Product Density: 1,500 m3 (52,972 ft3). Operational Mode: Batch. HEPA Filtration: Yes. Dust Collection: Yes. Explosion-Shock Resistant: Yes.

Type: Dryer-Fluid Bed

Manufacturer: Ventilex B.V. (Netherland)

Model: 10.44.110 502844

Condition: Used

Material: Stainless Steel 316L

Pressure: 6 bar (87 psi)

Temperature: 120 °C (248 °F)

GMP grade sanitary stainless steel construction order number V4635 vibration bed is belt driven electrical motor : type D160LA-6 , ExII3G, EExIIT4 system included with (1) 7m³ (1.4571) stainless steel silo manufactured by Scholl Switzerland AG order number 502838 serial number 201282 pressure rated -0,1/0,6 bar @ -20/120 degrees C (total volume 7100 liter) openings on top: (3) DN40, (1) DN50, (1) DN80, (1) DN100, (1) DN200, (1) DN500 manway cover; with (1) 4500 m³/h (1.4571) stainless steel radial fan manufactured by Reitz type KXE100-008030 serial number 166417 shaft rating maximum 20.17kW @ 3000rpm with frequency converter fan is coupling driven by a 37kW electrical motor, manufactured by Felten & Guilleaume, type CD200L2-2, serial number 415274001H, 3~/50Hz/400-690V/2955rpm, ExII2G, EEXdeIICT4, mounted on carbon steel baseplate; with (1) 1.2m² (1.4404) stainless steel plate heat exchanger, manufactured by Barriquand, type IJS, serial number 26361E, pressure shell side 2bar @ 200 degrees C (volume 16 liter), pressure plate side -1/6bar @ 200 degrees C (volume 2 liter), openings plate side: (2) DN25, openings shell side: (2) ½” (2) DN80; with (1) 44.3m² (1.4404) stainless s teel plate heat exchanger, manufactured by Barriquand, type IJMASC, serial number 26362E, pressure shell side 2.9bar @ -35/100 degrees C (volume 335 liter), pressure plate side 10bar @ -35/50 degrees C (volume 165 liter), openings plate side: (2) DN80, openings shell side: (1) DN25, (2) DN250; with (1) 12.7m² (1.4404) stainless steel plate heat exchanger, manufactured by Barriquand, type IJS, serial number 26359E, pressure shell side: 2 bar @ -20/200 degrees C (volume 190 liter, pressure plate side: -1/6bar @ -20/200 degrees C (volume 25 liter) openings plate side: (2) DN50, openings shell side: (2) ½” (2) DN250; with (1) 3.6m² (1.4435) stainless steel shell and spiral tube condenser, manufactured by Züricher Apparatebau, order number 105074, serial number 242, pressure tube side: 7.8bar @ -30/200 degrees C, pressure shell side: -1/6bar @ -30/200 degrees C, 500mm diameter x 1039mm length; with (1) 6m² (1.4404) stainless steel shell and tube condenser, manufactured by Züricher Apparatebau AG, order number 502637, serial number 1789, pressure shell side: -1/6bar @ -45/200 degrees C (volume 74 liter), pressure tube side: -1/8bar @ -45/200 degrees C (volume 45 liter), openings tube side: (2) DN50 (1) DN100, openings shell side: (2) DN40; with (1) 4.7m² (1.4404) stainless steel plate heat exchanger, manufactured by Barriquand, type IJS, serial number 26360E, pressure plate side: -1/6bar @ -20/200 degrees C (volume 8 liter), pressure shell side: 2bar @ -20/200 degrees C (volume 102 liter) openings plate side: (2) DN25, openings shell side: (2) ½” (2) DN150; with (1) 4m³ (1.4435) stainless steel vertical agitated tank with half pipe coil jacket, manufactured by WAFAG, order number 89536, serial number 8379, pressure inside: -0.32/4bar @ -30/200 degrees C (volume 4340 liter), pressure jacket side: 7.5bar @ -30/200 degrees C (volume 176 liter), with a (1.4571) stainless steel 3-blade propeller agitator, order number 503049, with mechanical seal, manufactured by Burgmann, type M481K-D20/60, pressure -1/16bar @ -30/200 degrees C, with 3 liter lubricator, manufactured by Aerni, type A-139, pressure 26bar @ 200 degrees C, agitator is driven by a gear, type RXF97D4/P, gear is belt driven by a 7.5kW electrical motor, manufactured by ABB, type 132M-4, 3~/50Hz/400V/1450rpm, EExdeIIBT4, openings top: (1) DN500 including (2) DN100 sight glasses, (1) DN600 including (2) DN50 and (1) DN300, (2) DN100, (3) DN200, openings bottom: (1) DN65, openings half pipe coil: (2) DN40, mounted on (4) lugs; with (1) 316L stainless steel vertical cyclone separator, manufactured by Ventilex, order number 502845, openings top: (3) DN25, (1) DN200, (1) DN300, openings side wall: (1) DN300, with cone bottom, mounted on (4) lugs; with (1) 14m³/h by 20m head (1.4408) stainless steel caned motor pump, manufactured by Ruetschi, type SMN-G5-160SR5E16-2V, order number 502627, driven by a 5.6kW electrical motor, type SR5E16-2V, 3~/50Hz/400V/2930rpm, EExdeIICT4; with (1) 2000mm diameter (1.4404) stainless steel vertical dust filter, manufactured by Ventilex, order number 502846, bolt dished top and weld dished cone bottom, 2000mm diameter x 3000mm straight side (4580mm overall length), (52) 316L stainless steel inlets, 145mm diameter x 2500mm length, openings top: (2) DN25, (3) DN100 sight glass, openings side wall: (2) DN300, (2) DN 200 sight glass, (4) DN50, (8) DN15, (7) 1”, opening cone side wall: (1) 500mm diameter manway cover, opening bottom: (1) DN200, mounted on (2) lugs; with (1) 316L stainless steel discharger valve, manufactured by Matcon

Bowl Diameter: 862 mm (33.9 in). Bowl Height: 820 mm (32.3 in). Orientation: Horizontal. Operational Mode: Continuous.
