Type: Dryer-Fluid Bed
Manufacturer: Glatt
Model: WSG
Condition: Used
Material: Stainless Steel 304
Capacity: 45 L (11.9 gallons)
Air Flow Rate: 750 m3/h (441.4 CFM)
15 Kg bed dryer system Heating capacity 68000 BTU/hour Steam pressure 3 bar air (compressed) 6 bar with removable trolley Drying chamber in (3) sections: (1) 21 1/2" diameter x 12" straight side; (1) 21 1/2" diameter x 27 1/2" straight side; (1) 21 1/2" diameter x 27 1/2" straight side x 15 1/2" diameter (cone shaped). Hydraulic bin closure, (2) trolley for bin removal Unit with air filter, manufactured by HSE, Type 5.5KW-SCF, serial #2620 Motor: 3 phase (3) control panels, (1) built-on unit Top mounted fan driven by 4.5 KW, 3/50/440 volt, 2915 rpm non-flameproof motor.
Pressure: 3 bar (43.5 psi). Temperature: 70 °C (158 °F). Bowl Diameter: 393.7 mm (15.5 in). Bowl Height: 279.4 mm (11 in). Orientation: Vertical. Product Density: 0.04 m3 (1.41 ft3). Operational Mode: Batch.

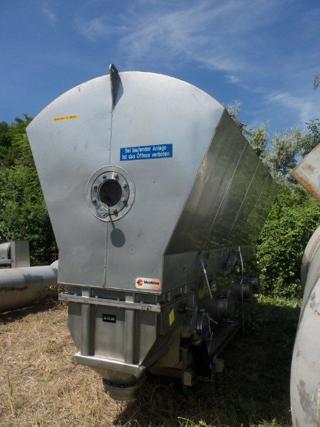

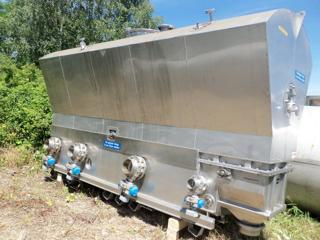

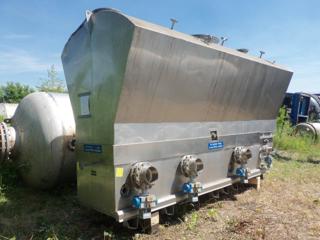

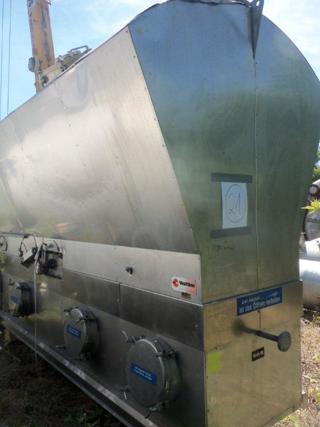

Type: Dryer-Fluid Bed
Manufacturer: Ventilex B.V. (Netherland)
Model: 10.44.110 502844
Condition: Used
Material: Stainless Steel 316L
Pressure: 6 bar (87 psi)
Temperature: 120 °C (248 °F)
GMP grade sanitary stainless steel construction order number V4635 vibration bed is belt driven electrical motor : type D160LA-6 , ExII3G, EExIIT4 system included with (1) 7m³ (1.4571) stainless steel silo manufactured by Scholl Switzerland AG order number 502838 serial number 201282 pressure rated -0,1/0,6 bar @ -20/120 degrees C (total volume 7100 liter) openings on top: (3) DN40, (1) DN50, (1) DN80, (1) DN100, (1) DN200, (1) DN500 manway cover; with (1) 4500 m³/h (1.4571) stainless steel radial fan manufactured by Reitz type KXE100-008030 serial number 166417 shaft rating maximum 20.17kW @ 3000rpm with frequency converter fan is coupling driven by a 37kW electrical motor, manufactured by Felten & Guilleaume, type CD200L2-2, serial number 415274001H, 3~/50Hz/400-690V/2955rpm, ExII2G, EEXdeIICT4, mounted on carbon steel baseplate; with (1) 1.2m² (1.4404) stainless steel plate heat exchanger, manufactured by Barriquand, type IJS, serial number 26361E, pressure shell side 2bar @ 200 degrees C (volume 16 liter), pressure plate side -1/6bar @ 200 degrees C (volume 2 liter), openings plate side: (2) DN25, openings shell side: (2) ½” (2) DN80; with (1) 44.3m² (1.4404) stainless s teel plate heat exchanger, manufactured by Barriquand, type IJMASC, serial number 26362E, pressure shell side 2.9bar @ -35/100 degrees C (volume 335 liter), pressure plate side 10bar @ -35/50 degrees C (volume 165 liter), openings plate side: (2) DN80, openings shell side: (1) DN25, (2) DN250; with (1) 12.7m² (1.4404) stainless steel plate heat exchanger, manufactured by Barriquand, type IJS, serial number 26359E, pressure shell side: 2 bar @ -20/200 degrees C (volume 190 liter, pressure plate side: -1/6bar @ -20/200 degrees C (volume 25 liter) openings plate side: (2) DN50, openings shell side: (2) ½” (2) DN250; with (1) 3.6m² (1.4435) stainless steel shell and spiral tube condenser, manufactured by Züricher Apparatebau, order number 105074, serial number 242, pressure tube side: 7.8bar @ -30/200 degrees C, pressure shell side: -1/6bar @ -30/200 degrees C, 500mm diameter x 1039mm length; with (1) 6m² (1.4404) stainless steel shell and tube condenser, manufactured by Züricher Apparatebau AG, order number 502637, serial number 1789, pressure shell side: -1/6bar @ -45/200 degrees C (volume 74 liter), pressure tube side: -1/8bar @ -45/200 degrees C (volume 45 liter), openings tube side: (2) DN50 (1) DN100, openings shell side: (2) DN40; with (1) 4.7m² (1.4404) stainless steel plate heat exchanger, manufactured by Barriquand, type IJS, serial number 26360E, pressure plate side: -1/6bar @ -20/200 degrees C (volume 8 liter), pressure shell side: 2bar @ -20/200 degrees C (volume 102 liter) openings plate side: (2) DN25, openings shell side: (2) ½” (2) DN150; with (1) 4m³ (1.4435) stainless steel vertical agitated tank with half pipe coil jacket, manufactured by WAFAG, order number 89536, serial number 8379, pressure inside: -0.32/4bar @ -30/200 degrees C (volume 4340 liter), pressure jacket side: 7.5bar @ -30/200 degrees C (volume 176 liter), with a (1.4571) stainless steel 3-blade propeller agitator, order number 503049, with mechanical seal, manufactured by Burgmann, type M481K-D20/60, pressure -1/16bar @ -30/200 degrees C, with 3 liter lubricator, manufactured by Aerni, type A-139, pressure 26bar @ 200 degrees C, agitator is driven by a gear, type RXF97D4/P, gear is belt driven by a 7.5kW electrical motor, manufactured by ABB, type 132M-4, 3~/50Hz/400V/1450rpm, EExdeIIBT4, openings top: (1) DN500 including (2) DN100 sight glasses, (1) DN600 including (2) DN50 and (1) DN300, (2) DN100, (3) DN200, openings bottom: (1) DN65, openings half pipe coil: (2) DN40, mounted on (4) lugs; with (1) 316L stainless steel vertical cyclone separator, manufactured by Ventilex, order number 502845, openings top: (3) DN25, (1) DN200, (1) DN300, openings side wall: (1) DN300, with cone bottom, mounted on (4) lugs; with (1) 14m³/h by 20m head (1.4408) stainless steel caned motor pump, manufactured by Ruetschi, type SMN-G5-160SR5E16-2V, order number 502627, driven by a 5.6kW electrical motor, type SR5E16-2V, 3~/50Hz/400V/2930rpm, EExdeIICT4; with (1) 2000mm diameter (1.4404) stainless steel vertical dust filter, manufactured by Ventilex, order number 502846, bolt dished top and weld dished cone bottom, 2000mm diameter x 3000mm straight side (4580mm overall length), (52) 316L stainless steel inlets, 145mm diameter x 2500mm length, openings top: (2) DN25, (3) DN100 sight glass, openings side wall: (2) DN300, (2) DN 200 sight glass, (4) DN50, (8) DN15, (7) 1”, opening cone side wall: (1) 500mm diameter manway cover, opening bottom: (1) DN200, mounted on (2) lugs; with (1) 316L stainless steel discharger valve, manufactured by Matcon
Bowl Diameter: 862 mm (33.9 in). Bowl Height: 820 mm (32.3 in). Orientation: Horizontal. Operational Mode: Continuous.

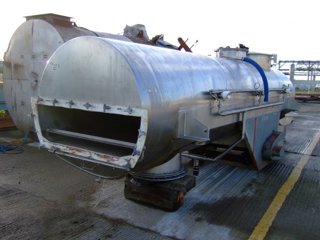

Type: Dryer-Fluid Bed
Manufacturer: Niro
Condition: Used
Material: Stainless Steel 304
Bowl Diameter: 1,100 mm (43.3 in)
Bowl Height: 6,000 mm (236.2 in)

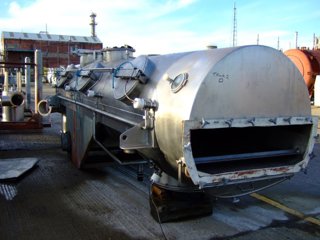

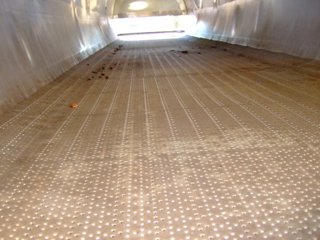

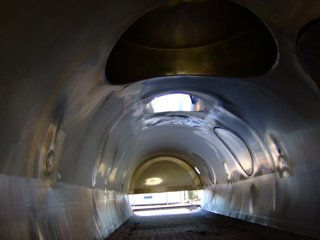

continuous vibrating fluid bed dryer perforated fluid bed openings: feed: 1-600mm, powder discharge: 1-300mm, top: 1-750mm manway, 1-450mm, straight side: 3-450mm manways, bottom: 2-625mm each with a 625mm diameter x 980mm straight side s/steel tank dryer mounted on carbon steel frame with springs
Orientation: Horizontal. Operational Mode: Continuous.

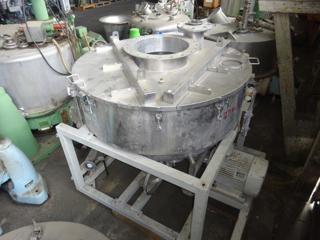

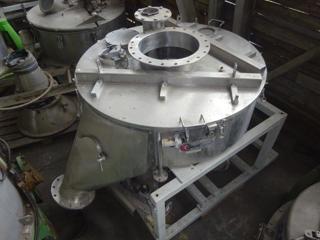

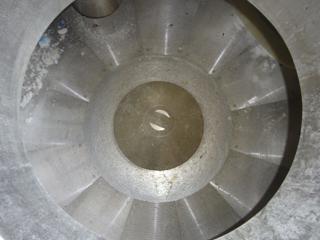

Type: Dryer-Fluid Bed
Manufacturer: Glatt
Model: GRG 200 Spheronizer
Condition: Used
Material: Stainless Steel Other
Capacity: 200 L (52.8 gallons)
Air Flow Rate: 6,000 m3/h (3,531 CFM)

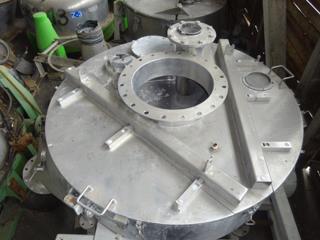

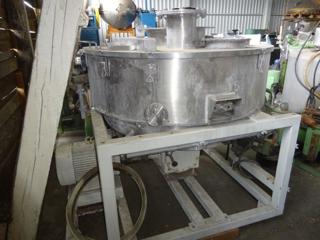

Glatt Fluid Bed Dryer perforated bed 400/690 volt Capacity 200 liter bin
Pressure: 0.5 bar (7.3 psi). Temperature: 60 °C (140 °F). Bowl Diameter: 1,450 mm (57.1 in). Bowl Height: 400 mm (15.7 in). Particle Coating Ability: Polymeric coating to spheres containing or layered with drugs. Layering spheres with drugs..
When your process requires precise drying and efficient heat transfer, fluid bed dryers offer one of the most reliable solutions available. Backed by more than 47 years of experience, 20 complete process plant sites, and a vast inventory of 15,000+ pieces of process equipment, IPP supplies high-quality used fluid bed dryers ready for immediate shipment to your facility.
Fluid bed dryers are widely used for drying powders, granules, and crystalline materials across industries such as pharmaceuticals, food processing, chemicals, and minerals. The technology uses a perforated plate or bed to suspend the product in an upward flow of heated air. This “fluidization” creates intimate contact between the product and the drying air, enabling fast and uniform drying with precise temperature control.
Because fluid bed dryers achieve high drying rates without exposing products to excessive heat, they are particularly useful for heat-sensitive materials and products requiring tight moisture specifications. This versatility makes them ideal for:
To ensure compatibility across diverse processing environments, fluid bed dryers are commonly constructed from:
Explore the IMS inventory or contact IPP’s equipment specialists to secure a fluid bed dryer tailored to your process needs. With used and surplus equipment available for immediate shipment, IPP helps companies accelerate projects while cutting capital costs.
