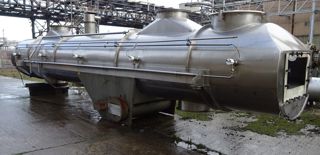

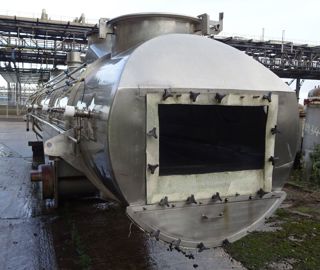

continuous vibrating fluid bed dryer perforated fluid bed openings: feed: 1-600mm, powder discharge: 1-300mm, top: 1-750mm manway, 1-450mm, straight side: 3-450mm manways, bottom: 2-625mm each with a 625mm diameter x 980mm straight side s/steel tank dryer mounted on carbon steel frame with springs
Type: Dryer-Fluid Bed
Manufacturer: Niro
Condition: Used
Material: Stainless Steel 304
Bowl Diameter: 1,340 mm (52.8 in)
Bowl Height: 9,600 mm (378 in)
vibrating fluid bed dryer vibratory mechanism 304 stainless steel perforated fluid bed openings: feed: 1-800mm, powder discharge: 1-635mm, top: 1-700mm manway, 2-600mm, 1-250mm, straight side: 3-500mm manways, bottom: 2-625mm, 1-500mm manway dryer with springs but no frame
Orientation: Horizontal. Operational Mode: Continuous.
Type: Dryer-Fluid Bed
Manufacturer: Glatt
Model: TFO 300-400
Condition: Used
Material: Stainless Steel 304
Capacity: 700 L (184.9 gallons)
Air Flow Rate: 14,000 m3/h (8,240 CFM)
load weight 300 kg special Vitamin-A-Pulver, with cyclones heater and cooler and de-dusting system Filter housing is 1.6m diamter, 2.5mm thick, with (59) bags, at the bottom of the filter housing is a tapered section that has a buterfly valve controling flow into the hopper bottom. Hopper bottom is 304 stainless steel (1.4301), 1190 mm diameter x 640 mm straight side with a 660 mm deep cone. Bottom hopper mounted on 4 legs with wheels. With seperate heating cooling box, rated - heater rated 320,000 Kcal/hr @ 5 atu, air cooler rated 400,000 kcal/hr @ 0/4 degrees c. Main fan is rated 14,000 CuM/Hr, 2900 upm, driven by a 35.8 KW, 3 phase 50 cycle, ExeG3 rated motor
Pressure: 5 bar (72.5 psi). Bowl Diameter: 1,190 mm (46.9 in). Bowl Height: 1,300 mm (51.2 in). Orientation: Vertical.
Type: Dryer-Fluid Bed
Manufacturer: Glatt
Model: TFO 300-400
Condition: Used
Material: Stainless Steel 304
Capacity: 700 L (184.9 gallons)
Air Flow Rate: 14,000 m3/h (8,240 CFM)
300 kg special Vitamin-A-Pulver with cyclones heater and cooler and de-dusting system Filter housing is 1600 mm diamter, 2.5mm thick with (59) bags at the bottom of the filter housing is a tapered section that has a buterfly valve controling flow into the container bottom Hopper bottom is 304 stainless steel (1.4301), 1190 mm diameter x 640 mm straight side with a 660 mm deep cone with a 660 mm deep cone. With separate heating cooling box, rated - heater rated 320,000 Kcal/hr @ 5 atu, air cooler rated 400,000 kcal/hr @ 0/4 degrees c. Main fan is rated 14,000 CuM/Hr, 2900 upm, driven by a 35.8 KW, 3 phase 50 cycle, ExeG3 rated motor.
Pressure: 5 bar (72.5 psi). Bowl Diameter: 1,190 mm (46.9 in). Bowl Height: 1,300 mm (51.2 in). Orientation: Vertical.
Type: Dryer-Fluid Bed
Manufacturer: Glatt
Model: TFO 300-400
Condition: Used
Material: Stainless Steel 304
Capacity: 700 L (184.9 gallons)
Air Flow Rate: 14,000 m3/h (8,240 CFM)
300 kg Glatt Fluid bed dryer special Vitamin-A-Pulver with cyclones heater and cooler and de-dusting system Filter housing is 1600 mm diamter, 2.5mm thick, with (59) bags, at the bottom of the filter housing is a tapered section that has a buterfly valve controling flow into the hopper bottom with a 660 mm deep cone Hopper bottom is 304 stainless steel (1.4301), 1190 mm diameter x 640 mm straight side with a 660 mm deep cone With seperate heating cooling box,rated - heater rated 320,000 Kcal/hr @ 5 atu, air cooler rated 400,000 kcal/hr @ 0/4 degrees c. Main fan is rated 14,000 CuM/Hr, 2900 upm, driven by a 35.8 KW, 3 phase 50 cycle, ExeG3 rated motor dedusting system rated 15000 CuM/Hr.
Pressure: 5 bar (72.5 psi). Bowl Diameter: 1,190 mm (46.9 in). Bowl Height: 1,300 mm (51.2 in). Orientation: Vertical.
