3,600 L (951 gallons) Stainless Steel Austentic Batch-Type Agitated Reactor For Sale IPP# 235800

IPP# 235800, 3,600 L (951 gallons) Stainless Steel Austentic Batch-Type Agitated Reactor For Sale

Condition:

Used

Material:

Stainless Steel Austentic

Manufacturer:

Chema Balke Dürr GmbH

Capacity Design:

3,600 L (951 gallons)

Internal Pressure:

6 bar (87 psi)

Internal Full Vacuum:

Yes

Internal Temperature:

200 °C (392 °F)

Jacket Pressure:

6 bar (87 psi)

Jacket Temperature:

200 °C (392 °F)

Jacket Material of Construction:

Stainless Steel Austentic

Agitation:

Yes

Top Head Type:

Dish

Bottom Head Type:

Dish

Manway:

Yes

Nozzle Schedule:

- Openings: Top - (1) 350 mm manway with hinged bolted cover, (5) 25mm, (1) 100 mm, (1) 300 mm center for the agitator, (2) 40mm, (2) 19mm, Bottom- (1) 300 mm

Support Type:

Lugs

Additional Info:

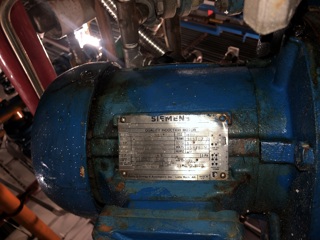

1.4529 SS (AL-6XN super-Austenitic SS) fermenter/ reactor with internal cooling coil and sparge ring for gas addition Polished stainless steel interior motor : 3/50/380 volt Bergmann double mechanical seal on shaft

TUV standard

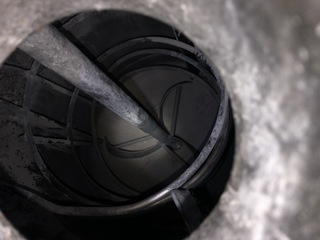

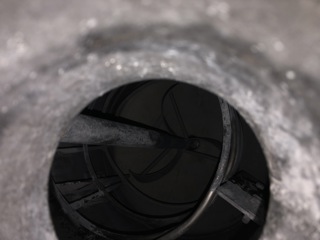

Jacket volume: 440 liter Vertical Internal cooling coils rated 13 liter rated -1/6bar@200 degrees C
Sparge ring in bottom of tank for adding gas into the fermentation process
Empty weight: 2450 Kg
Shipping dimensions: Length= 4100 mm; Width= 1800 mm; Height= 1800 mm; Weight= 2450 kg
