Unused Glasslined Pfaudler RS Batch Type Body Only Reactor - IPP# 238291

Type: Reactor

Subtype: Batch Type Body Only

Manufacturer: Pfaudler

Model: RS

Condition: Unused

Material: Glasslined

Capacity (Design): 7,571 L (2,000 gallons)

Internal Pressure: 10.3 bar (150 psi)

• Two zone jacket, delta on temperature between jackets must not exceed 286 degrees F

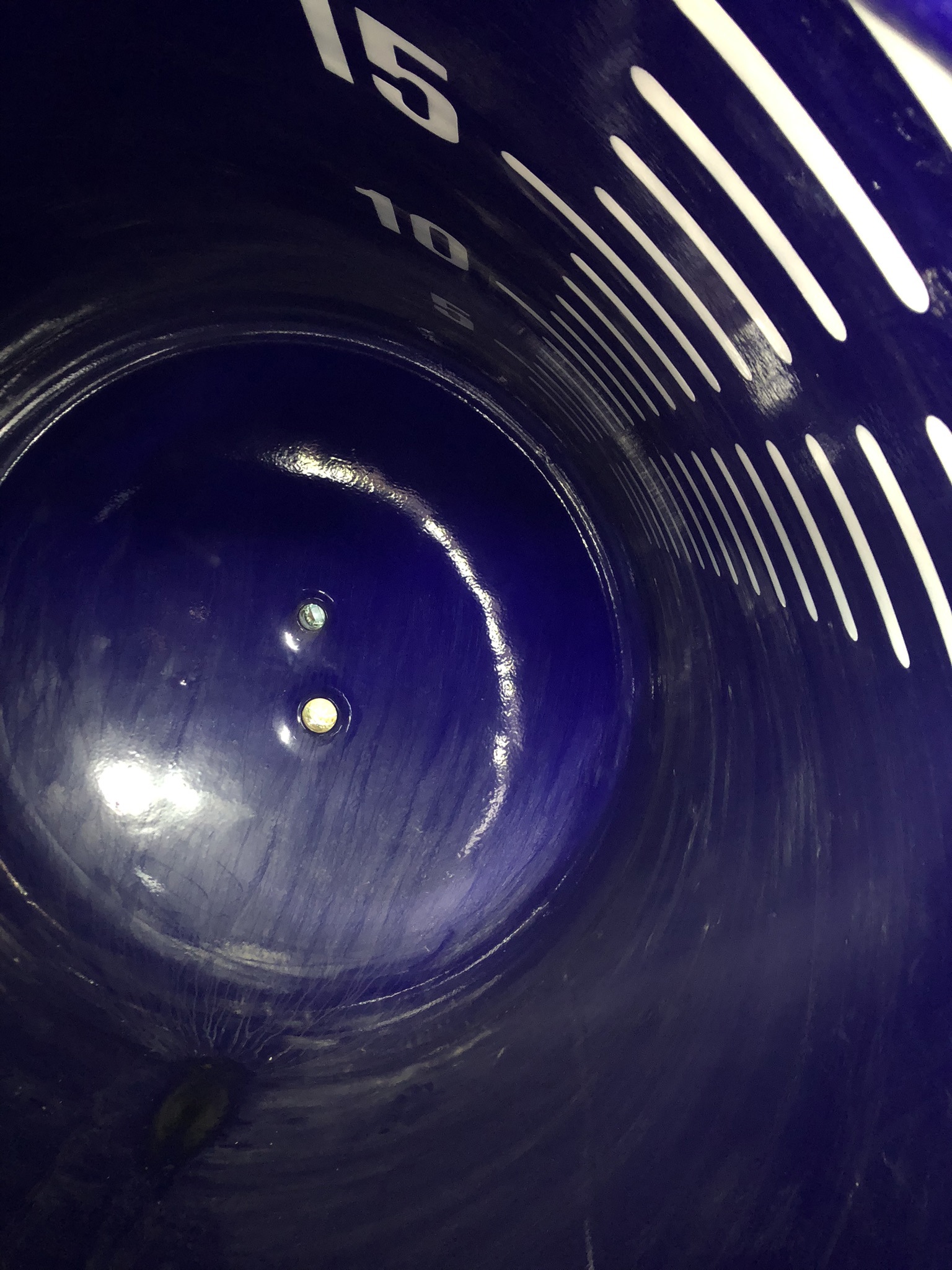

• 9119 glass

Internal Full Vacuum: Yes. Internal Temperature: 232.2 °C (450 °F). Jacket Pressure: 10.3 bar (150 psi). Jacket Temperature: 204.4 °C (400 °F). Jacket Material of Construction: Carbon Steel. Body Only: Yes. Orientation: Vertical. Diameter: 1,981 mm (78 in). Straight Side Length: 2,032 mm (80 in). Support Type: Lugs.

Type: Reactor

Subtype: Batch Type Body Only

Manufacturer: Pfaudler

Model: RS

Condition: Unused

Material: Glasslined

Capacity (Design): 11,356 L (3,000 gallons)

Internal Pressure: 10.3 bar (150 psi)

• Dual rated 150 psi and full vacuum at +450 f/ 72psi and full vacuum at -50 F internal.
• Dual rated jacketed for150 psi and full vacuum at 450 f/ 72 psi and full vacuum at -50F
• 9119 glass

Internal Full Vacuum: Yes. Internal Temperature: 232.2 °C (450 °F). Jacket Pressure: 10.3 bar (150 psi). Jacket Temperature: 232.2 °C (450 °F). Jacket Material of Construction: Carbon Steel. Body Only: Yes. Orientation: Vertical. Diameter: 2,438 mm (96 in). Straight Side Length: 1,854 mm (73 in). Support Type: Legs.

Type: Reactor

Subtype: Batch Type Body Only

Manufacturer: Pfaudler

Model: RS

Condition: Unused

Material: Glasslined

Capacity (Design): 11,356 L (3,000 gallons)

Internal Pressure: 10.3 bar (150 psi)

• Can be sold as an assembly, see comments.
• Dual rated 150 psi and full vacuum at +450 f/ 72psi and full vacuum at -50 F internal.
• Dual rated jacketed for150 psi and full vacuum at 450 f/ 72 psi and full vacuum at -50F
• 9119 glass

Internal Full Vacuum: Yes. Internal Temperature: 232.2 °C (450 °F). Jacket Pressure: 10.3 bar (150 psi). Jacket Temperature: 232.2 °C (450 °F). Jacket Material of Construction: Carbon Steel. Body Only: Yes. Orientation: Vertical. Diameter: 2,438 mm (96 in). Straight Side Length: 1,854 mm (73 in). Support Type: Lugs.

Type: Reactor

Subtype: Batch Type Body Only

Manufacturer: Pfaudler

Model: RS

Condition: Re-glassed

Material: Glasslined

Capacity (Design): 7,571 L (2,000 gallons)

Internal Pressure: 6.9 bar (100 psi)

• MFR # 0054002044

Internal Full Vacuum: Yes. Internal Temperature: 232.2 °C (450 °F). Jacket Pressure: 6.2 bar (90 psi). Jacket Temperature: 242.2 °C (468 °F). Jacket Material of Construction: Carbon Steel. Body Only: Yes. Orientation: Vertical. Diameter: 1,981 mm (78 in). Straight Side Length: 2,032 mm (80 in). Support Type: Lugs.
