Overview
Filter
Sartorius
Sartoflow 20 PH/A "Gandalf"
Used
Stainless Steel 316
Capacity
200 L (52.8 gallons)

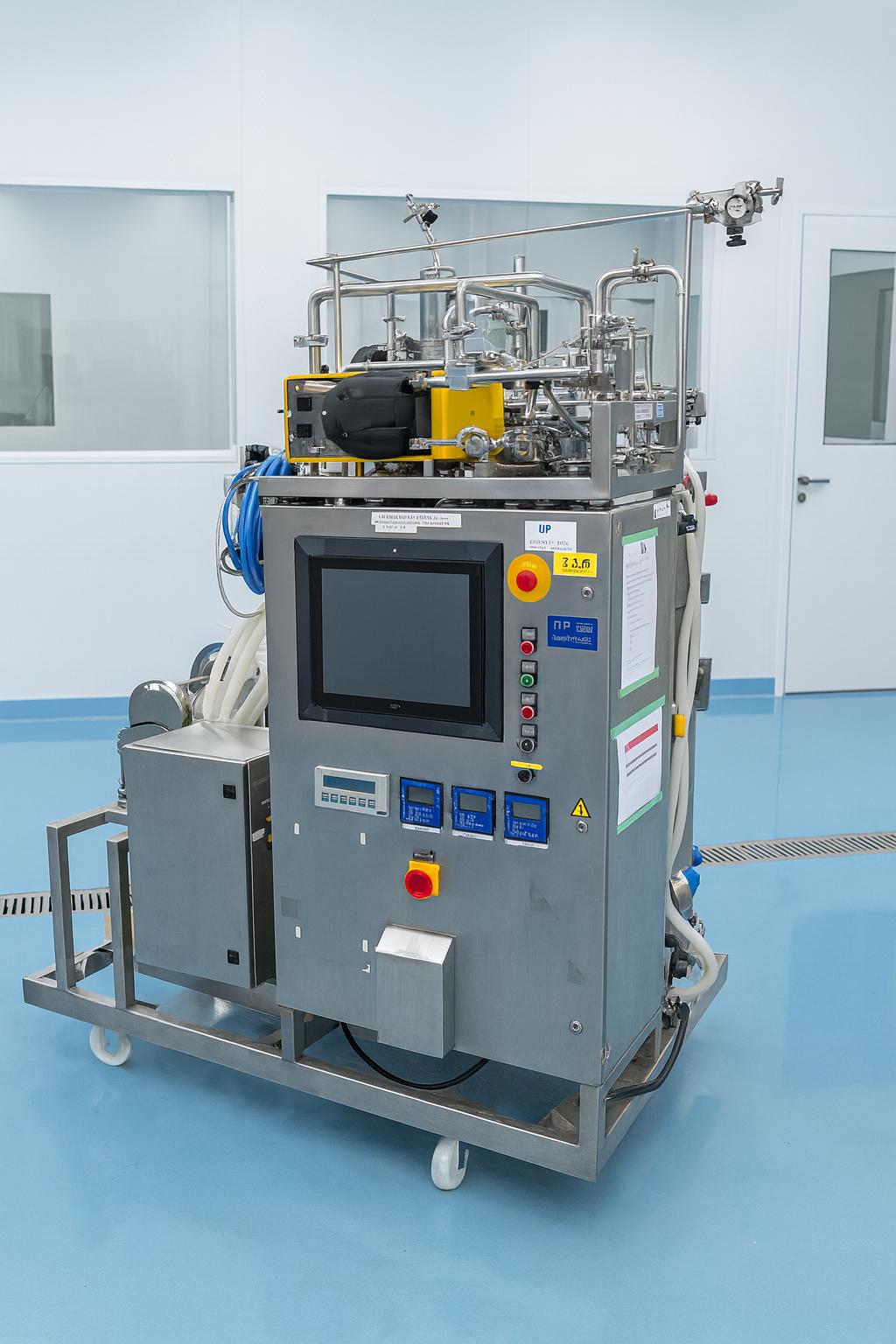

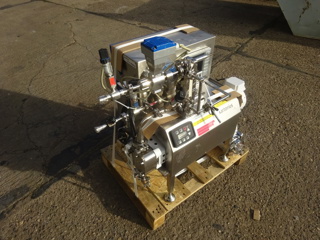

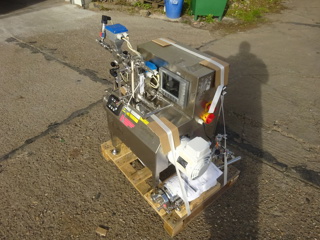

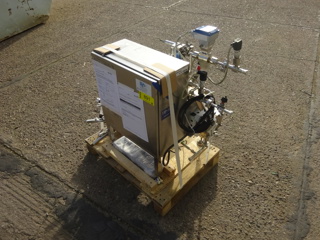

Sartoflow 20 PH/A Crossflow Filter/ Tangential Flow Filter (TFF) system

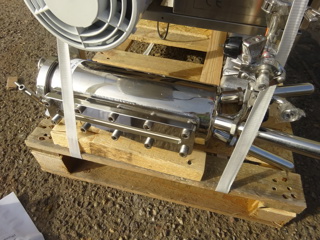

  • Skid mounted system with the following components- Sartoflow 20 filter holder, can handle 20 crossflow cassettes or four Sartocubes.
  • A 200 Liter vertical pressure tank, with jacket engineered by Sartorius, type 200L NOC-39600055, serial # 0406154. Vessel rated for -1 to 6 bar at 140 degrees C, jacket (15 liter) is rated for -1 to 4 bar at 140 degrees C. Vessel has a welded dish bottom and bolted flat top. Under drive is magnetic with a 1 kW drive motor.

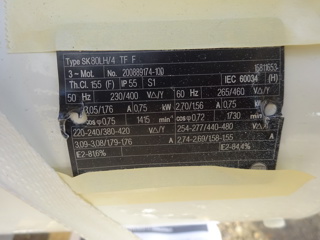

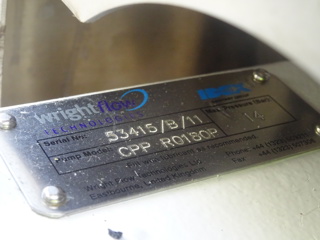

  • 2" x 2" rotary lobe pump with a Nord drive serial # 30515/A/04 rated for 7 bar.
  • With one Watson Marlow 624 U, auto control 165 rpm peristaltic pump. Controls in NEMA Stainless steel cabinets with an IEI HMI. Jacket and cooling is completed by a Lauda T -4600 cooling unit, 18 Liter bath capacity, process thermostat, manufactured by Lauda-Brinkman, model T4600. Temperature range -30 degrees C to 120 degrees C. Cooling capacity at 20 degrees C. 4600 W. With 2 line back lit LCD display. Temperature accuracy to plus/minus 0.05 degrees C. Skid dimensions overall 1.8 m long x 1260 mm deep x 2.5 m high. CE certified.

Similar Equipment

Filter

Type: Filter

Manufacturer: Sartorius

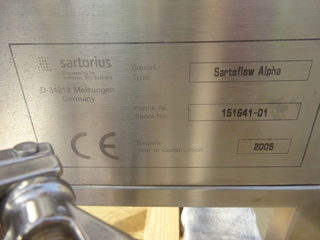

Model: Sartaflow Alfa

Condition: Used

Material: Stainless Steel 316L

Filtration Area: 0.5 m² (5.4 ft²)

Orientation: Horizontal

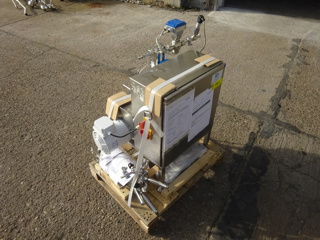

  • Pilot Benchtop Crossflow UF
  • Mirror polish, sanitary, Benchtop pilot crossflow.
  • Can run with disposable bags or tank.(This unit currently with tank).

Number of Filter Elements: 5. Filter Element Details: Up to Five Sartocon Slice Cassettes-each with 0.1 m2 filtration area.

1.86 m² (20 ft²) Stainless Steel 316 Basket Filter

Stainless Steel 316 Basket Filter

Type: Filter

Subtype: Basket

Manufacturer: Filterite

Model: 931143

Condition: Used

Material: Stainless Steel 316

Filtration Area: 1.86 m² (20 ft²)

Inlet Diameter: 76.2 mm (3 in)

Type 54MS03-316-3FD-C150 Drain size: 2" Davait arm for cover removal.

Orientation: Vertical. Pressure: 10.3 bar (150 psi). Temperature: 93.3 °C (200 °F).

5.3 m² (56.5 ft²) Stainless Steel 316 Pressure Leaf Filter

Stainless Steel 316 Pressure Leaf Filter

Type: Filter

Subtype: Pressure Leaf

Manufacturer: Seitz

Model: Radium RZ60A/6GCW

Condition: Used

Material: Stainless Steel 316

Filtration Area: 5.3 m² (56.5 ft²)

Orientation: Vertical

Internal (390 liter) Jacket (50 liter) (21) stainless steel plates 600mm Diameter, 750mm diameter x 1000mm straight side, Cake volume: 105 liter

Pressure: 6 bar (87 psi). Temperature: 133 °C (271.4 °F). Jacket: Yes. Jacket Pressure: 3 bar (43.5 psi). Jacket Temperature: 133 °C (271.4 °F).

Stainless Steel 316 Rosenmund RPD 8-398-86 Rosenmund and Cogiem Filter

Stainless Steel 316 Rosenmund RPD 8-398-86 Rosenmund and Cogiem Filter

Type: Filter

Subtype: Rosenmund and Cogiem

Manufacturer: Rosenmund

Model: RPD 8-398-86

Condition: Used

Material: Stainless Steel 316

Filtration Area: 8 m² (86.1 ft²)

Diameter: 3,260 mm (128.3 in)

Codap85 center bottom discharge design Includes hydraulic controls and vacuum pump skid. 316L stainless steel half pipe coil jacket on straight side cover with a shroud jacket volume is 75 liters. jacket -1/5 bar Non-cored shaft. Rated: internal pressure -1/3 bar Designed for cake thickness 500mm.
Vessel is 13200liter volume Includes hydraulic controls and vacuum pump skid

Pressure: 3 bar (43.5 psi). Temperature: 165 °C (329 °F). Jacket: Yes. Jacket Pressure: 5 bar (72.5 psi). Jacket Type: Half Pipe/Limpet. Jacket MOC: Stainless Steel 316. Jacket Temperature: 165 °C (329 °F).
