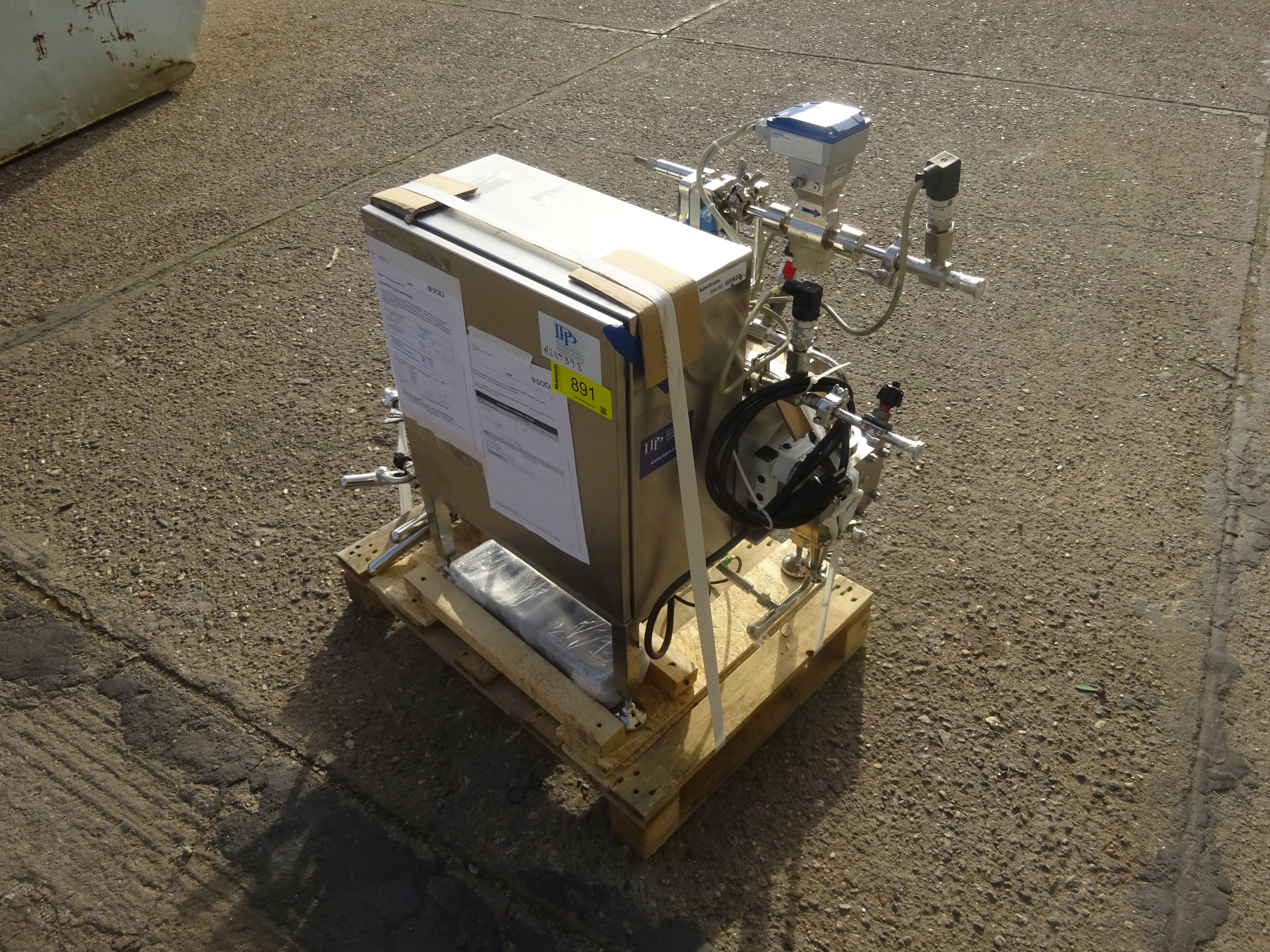

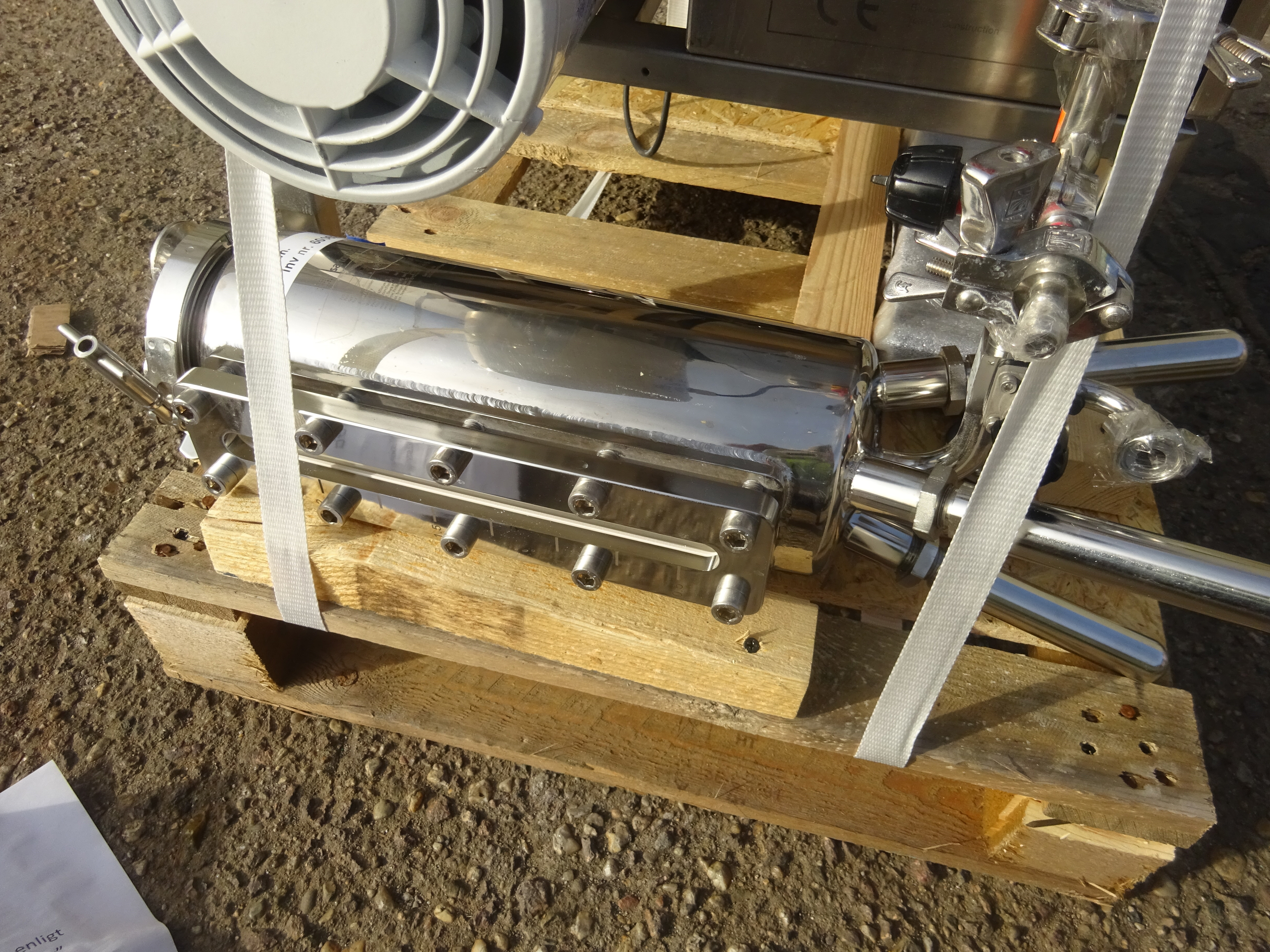

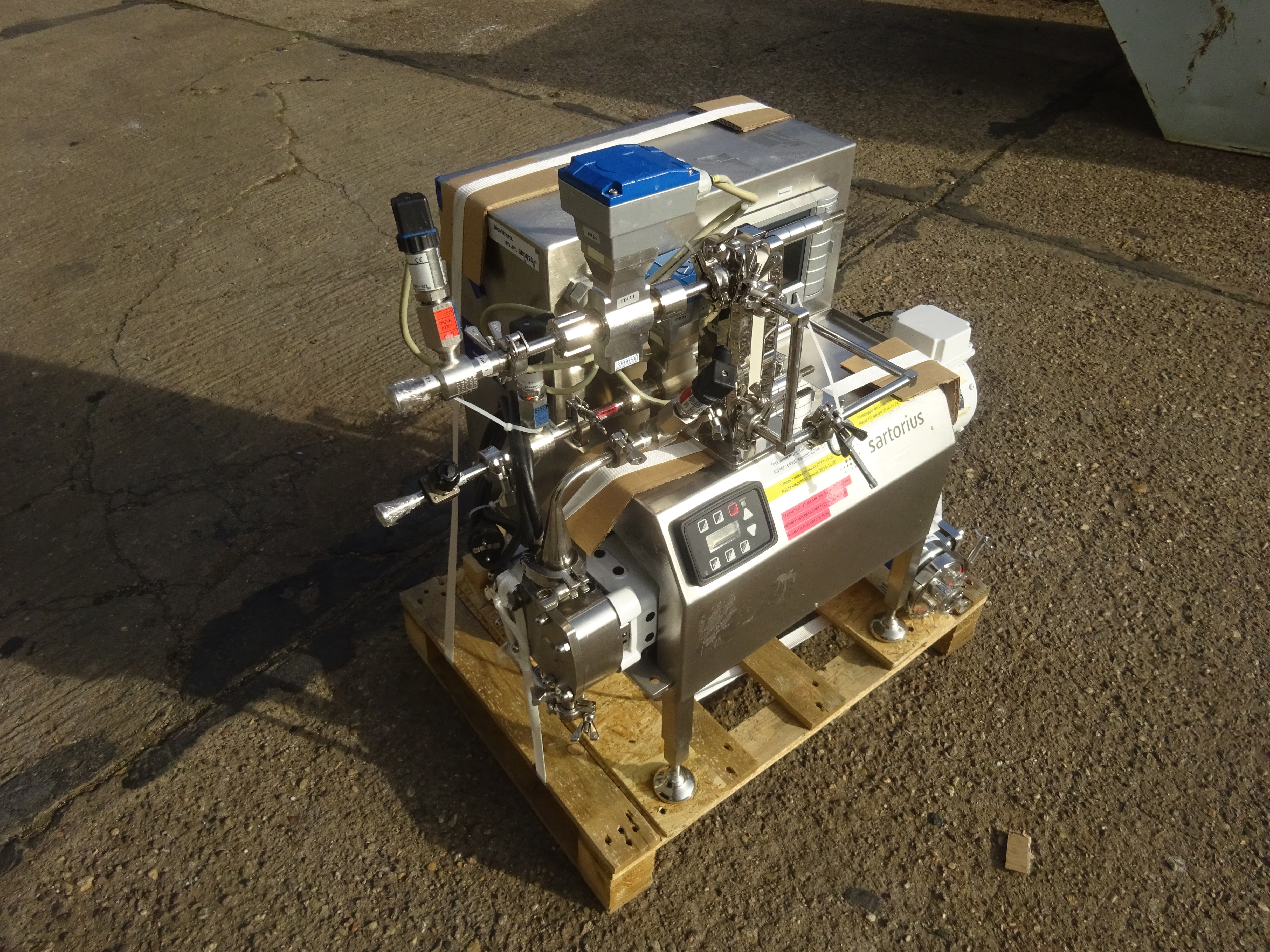

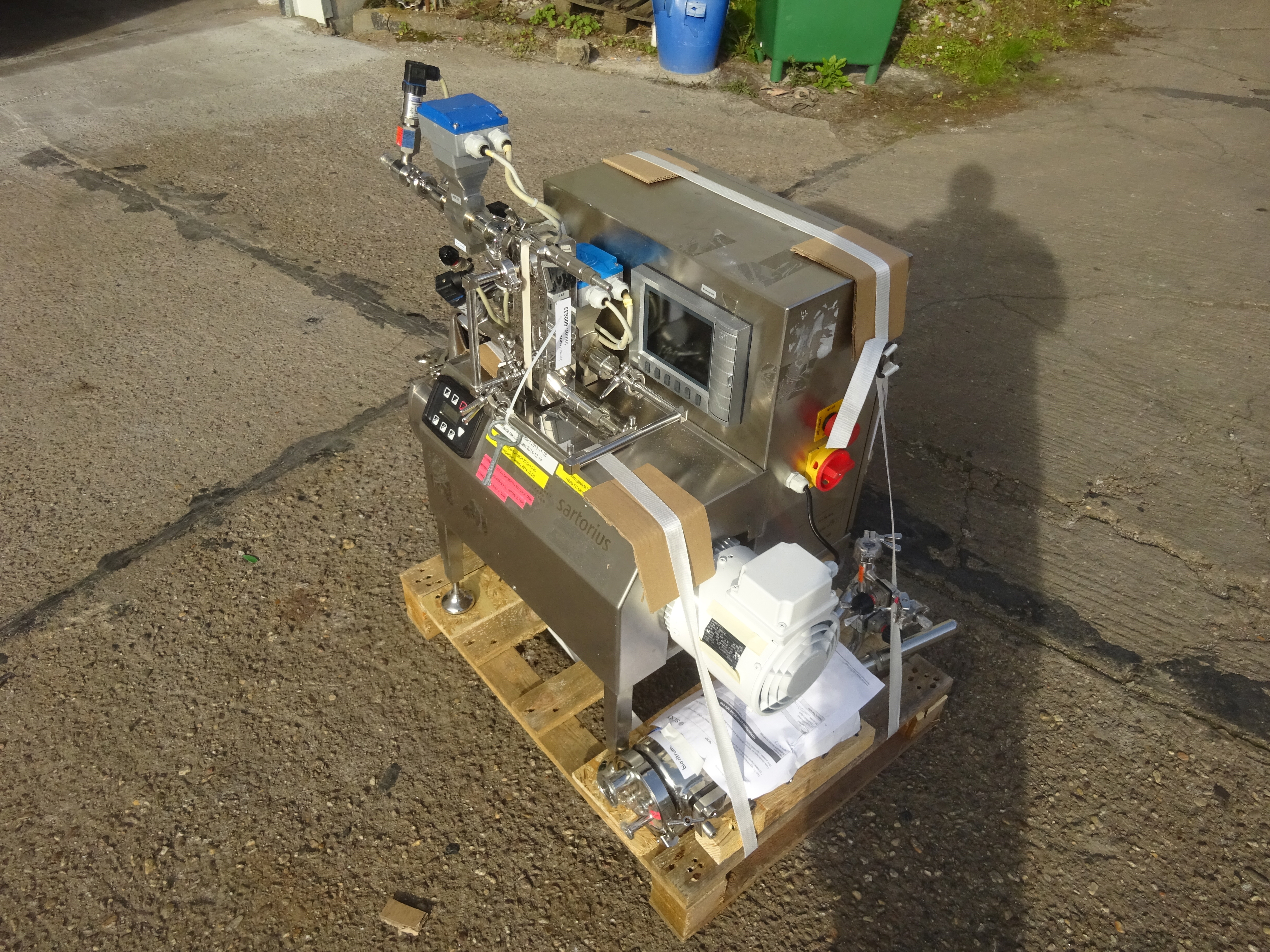

Filter - IPP# 239393

Type: Filter

Manufacturer: Sartorius

Model: Sartoflow 20 PH/A "Gandalf"

Condition: Used

Material: Stainless Steel 316

Vessel Liquid Capacity: 200 L (52.8 gallons)

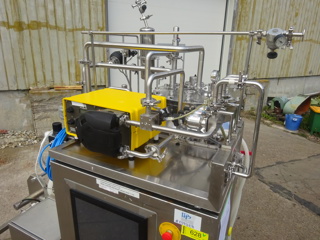

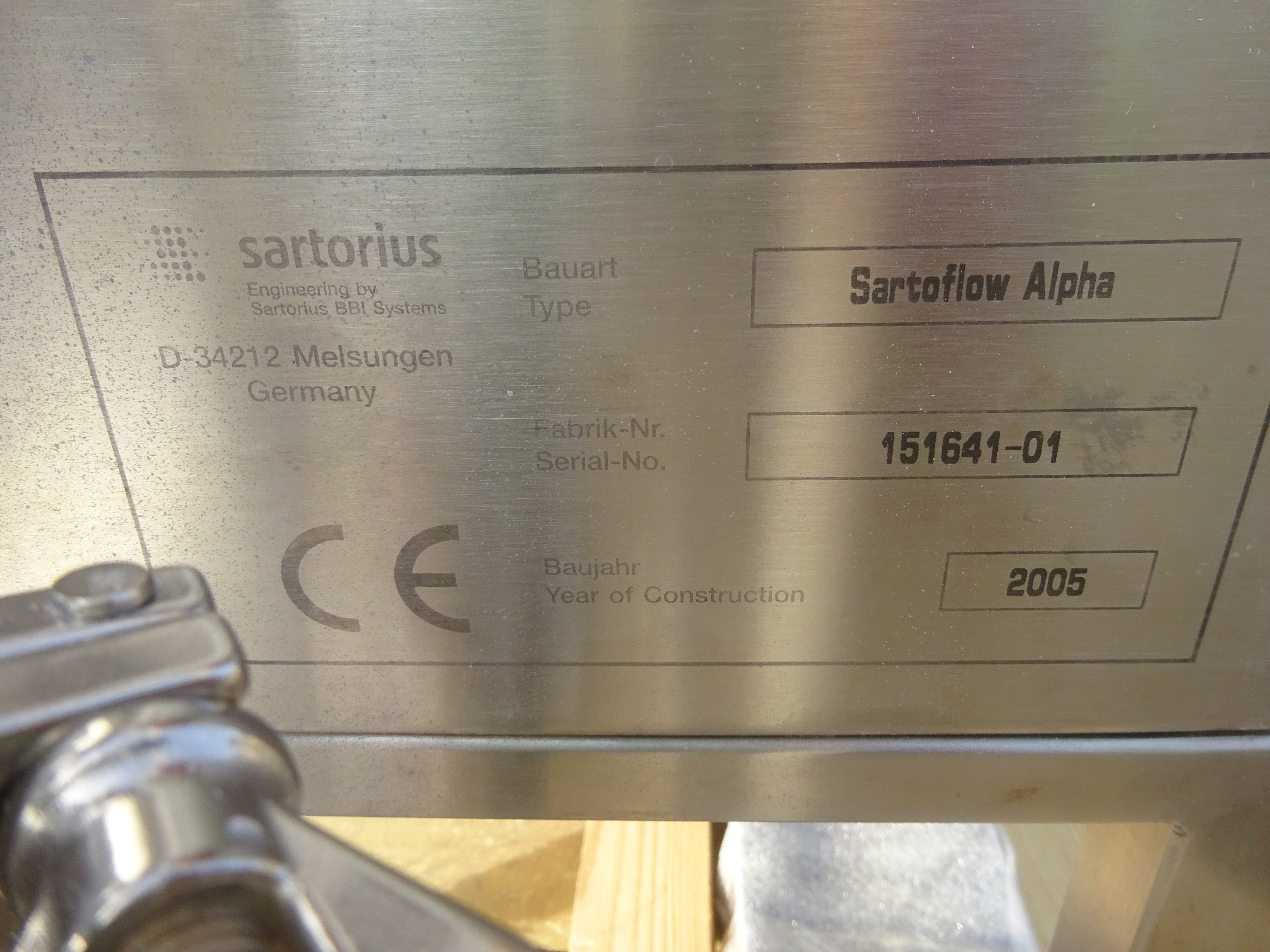

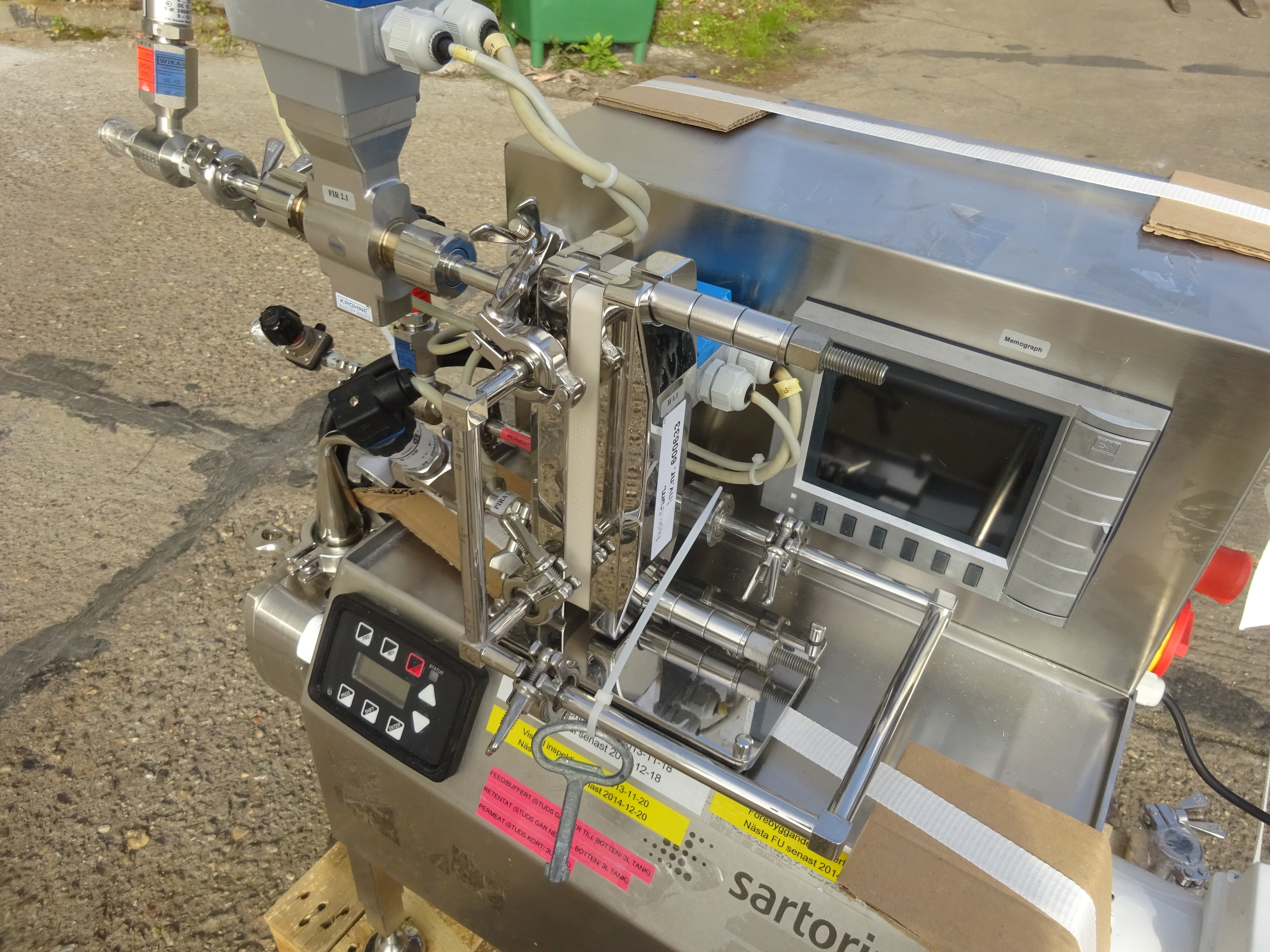

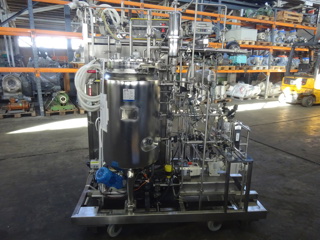

Sartoflow 20 PH/A Crossflow Filter/ Tangential Flow Filter (TFF) system

• Skid mounted system with the following components- Sartoflow 20 filter holder, can handle 20 crossflow cassettes or four Sartocubes.
• A 200 Liter vertical pressure tank, with jacket engineered by Sartorius, type 200L NOC-39600055, serial # 0406154. Vessel rated for -1 to 6 bar at 140 degrees C, jacket (15 liter) is rated for -1 to 4 bar at 140 degrees C. Vessel has a welded dish bottom and bolted flat top. Under drive is magnetic with a 1 kW drive motor.

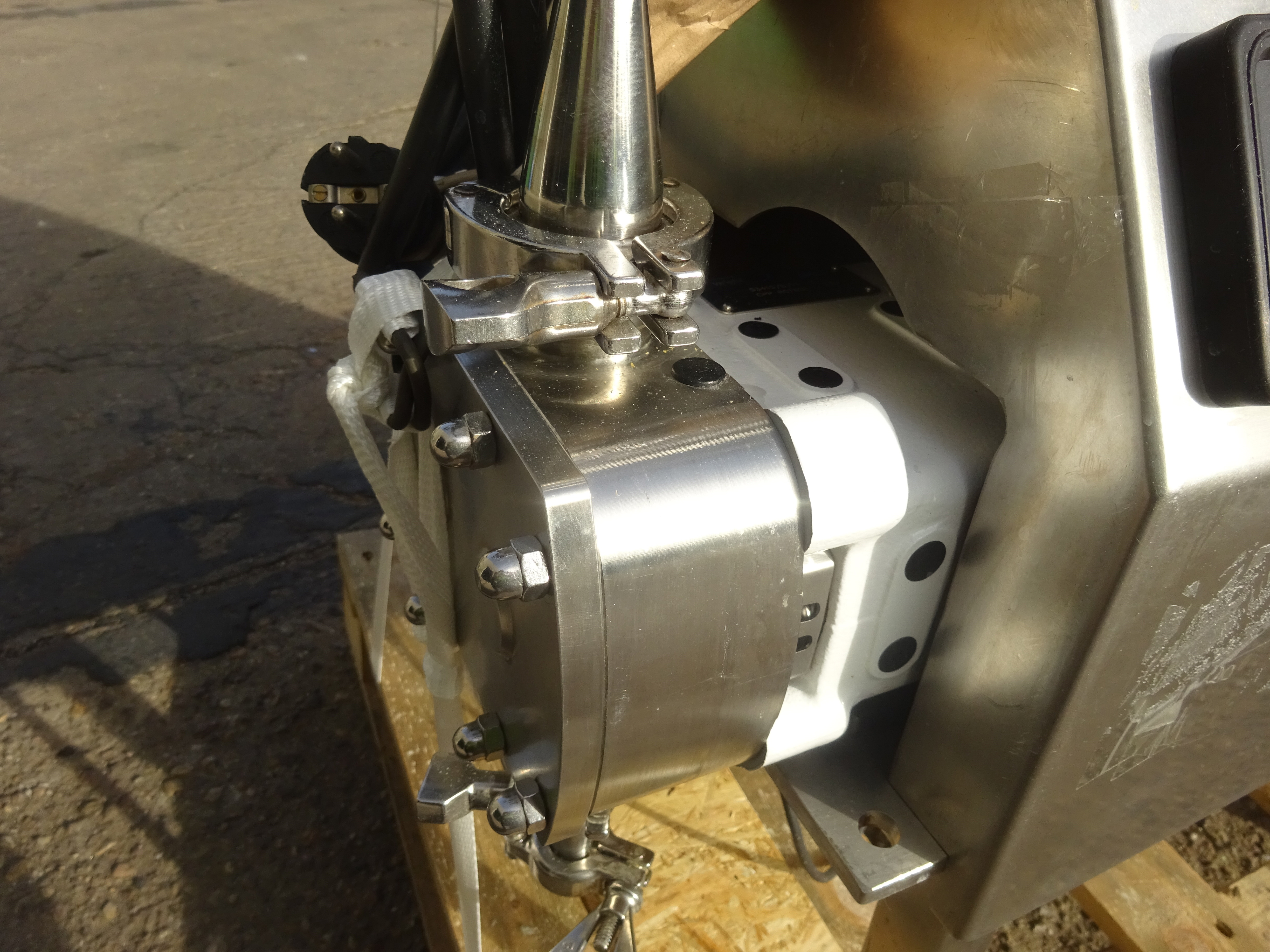

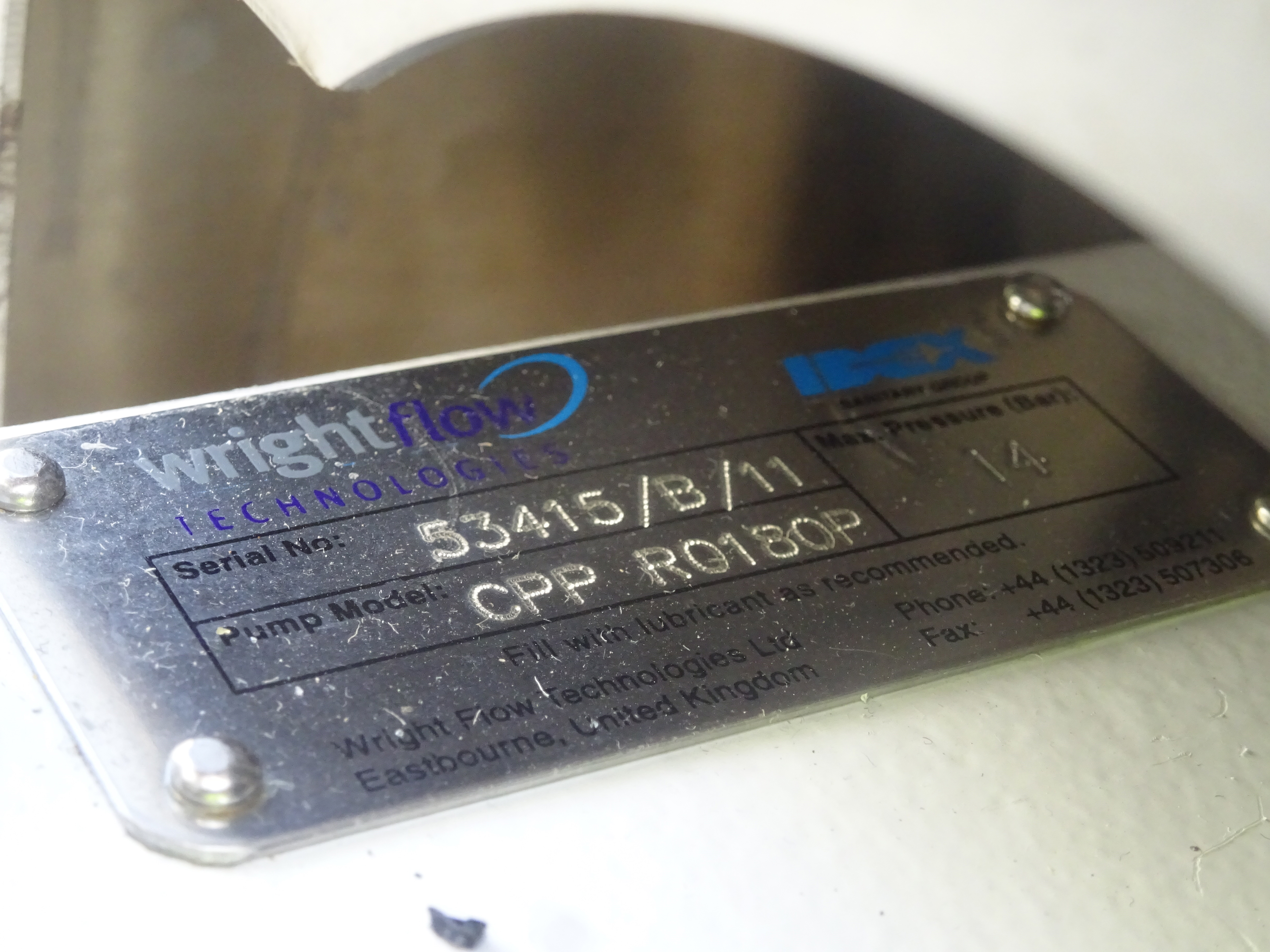

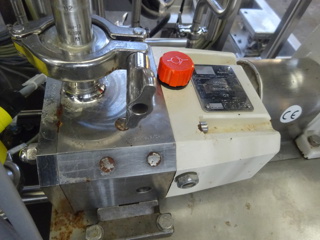

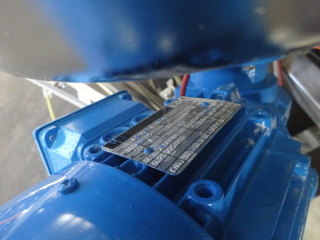

• 2" x 2" rotary lobe pump with a Nord drive serial # 30515/A/04 rated for 7 bar.

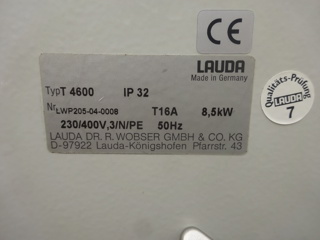

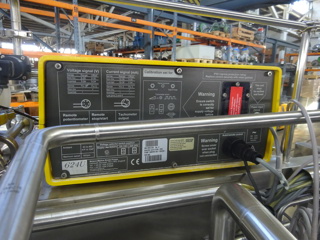

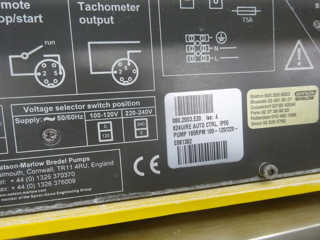

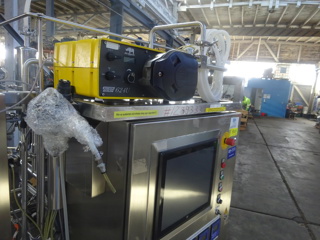

• With one Watson Marlow 624 U, auto control 165 rpm peristaltic pump. Controls in NEMA Stainless steel cabinets with an IEI HMI. Jacket and cooling is completed by a Lauda T -4600 cooling unit, 18 Liter bath capacity, process thermostat, manufactured by Lauda-Brinkman, model T4600. Temperature range -30 degrees C to 120 degrees C. Cooling capacity at 20 degrees C. 4600 W. With 2 line back lit LCD display. Temperature accuracy to plus/minus 0.05 degrees C. Skid dimensions overall 1.8 m long x 1260 mm deep x 2.5 m high. CE certified.

Type: Filter

Subtype: Pressure Leaf

Manufacturer: Chemap

Model: A18

Condition: Unused

Material: Stainless Steel 316L

Filtration Area: 18 m² (193.8 ft²)

Diameter: 1,100 mm (43.3 in)

Funda filter with centrifugal discharge (23) 1000mm diameter filter elements mounted @ 30mm spacing Wet cake discharge

Pressure: 5 bar (72.5 psi). Temperature: 100 °C (212 °F).

Type: Filter

Manufacturer: B. Braun + Diessel Biotech GmbH

Model: D03300005-SFSD

Condition: Used

Material: Stainless Steel 316L

Orientation: Vertical

Pressure: 28 bar (406 psi)

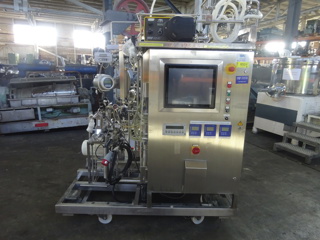

• automatic crossflow filtration system, especially designed for the concentration of Pharmaceutical products

Skid mounted system with the following components-

• Sartorius 17521 Sartocon Slice Duo Crossflow Cassette filter holder.

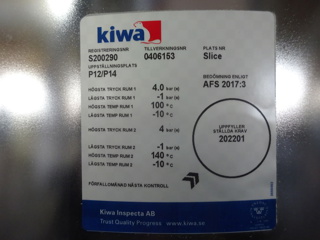

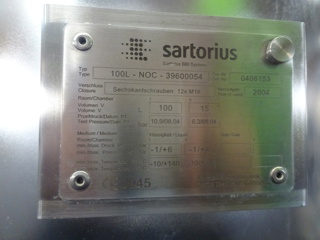

• 100 Liter vertical pressure tank, with jacket engineered by Sartorius, type 100L NOC-39600054, serial # 0406153. Vessel rated for -1 to 6 bar at 140 degrees C, jacket (15 liter) is rated for -1 to 4 bar at 140 degrees C. Vessel has a welded dish bottom and bolted flat top. Under drive is magnetic with a 1 kW drive motor.

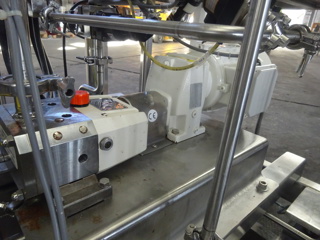

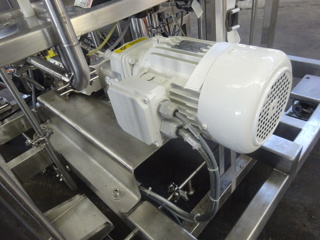

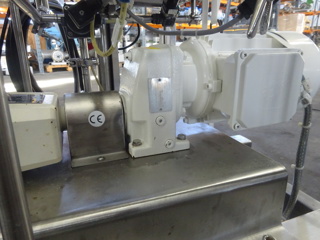

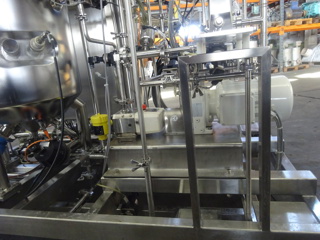

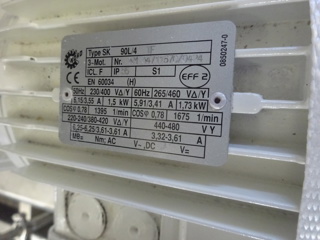

• 2" x 2" rotary lobe pump with a Nord drive serial # 30516/A/94 rated for 7 bar. Driven by a Nord Type SK 90L4 AC motor 1.5 kW at 1395 rpm.
• one Watson Marlow 624 U, auto control 165 rpm peristaltic pump.
• Controls in NEMA Stainless steel cabinets with an IEI HMI.
• Jacket and cooling is completed by a Lauda T -2200, 7 Liter bath capacity, process thermostat, manufactured by Lauda-Brinkman, model T2200. Temperature range -25 degrees C to 120 degrees C. Cooling capacity at 20 degrees C. 2200 W.
• 2 line back lit LCD display. Temperature accuracy to plus/minus 0.05 degrees C.
• CE certified.

Temperature: 60 °C (140 °F).

Type: Filter

Subtype: Pressure Leaf

Manufacturer: Schenk

Model: ZHF-SR 5 KL-B1

Condition: Used

Material: Stainless Steel 316L

Filtration Area: 4.7 m² (50.6 ft²)

Diameter: 900 mm (35.4 in)

• jacketed centrifugal discharge pressure plate filter
• CE0036
• internal pressure -1/6 barg @ -25/185 degrees C (350 liter),
• jacket -1/6 barg @ -25/185 degrees C (72 liter),
• 0.92 square meter scavenger plate area
• cake volume 0.15 cubic meter
• approx (12) 805mm diameter filter plates
• jacket on top and bottom heads
• underdriven

(1) centrifugal pump

Orientation: Vertical. Pressure: 6 bar (87 psi). Temperature: 185 °C (365 °F). Vacuum: Yes. Jacket: Yes. Jacket Pressure: 6 bar (87 psi). Jacket Type: Standard. Jacket MOC: Stainless Steel 304. Jacket Temperature: 185 °C (365 °F). Cake Volume: 0.15 m3 (5.3 ft3). Number of Filter Elements: 12. Vessel Liquid Capacity: 350 L (92.5 gallons). Scavenging: Yes. Number of Scavenging Elements: 1.
