7,571 L (2,000 gallons) Glasslined Batch-Type Agitated Reactor For Sale IPP# 241026

IPP# 241026, 7,571 L (2,000 gallons) Glasslined Batch-Type Agitated Reactor For Sale

Condition:

Used

Material:

Glasslined

Manufacturer:

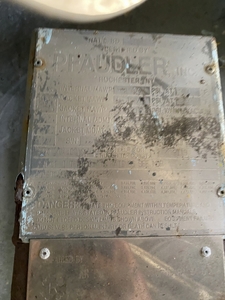

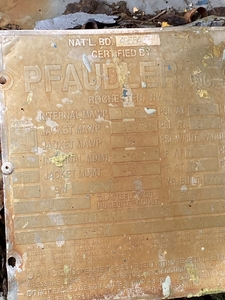

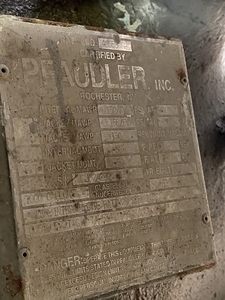

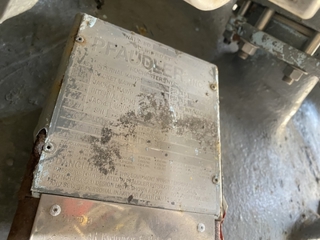

Pfaudler

Capacity Design:

7,571 L (2,000 gallons)

Internal Pressure:

10.3 bar (150 psi)

Internal Full Vacuum:

Yes

Internal Temperature:

232.2 °C (450 °F)

Jacket Pressure:

10.3 bar (150 psi)

Jacket Temperature:

232.2 °C (450 °F)

Orientation:

Vertical

Agitation:

Yes

Baffle Type:

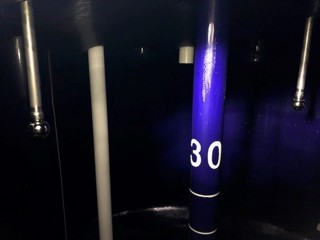

Finger Baffle

Baffle Details:

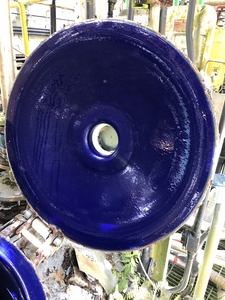

One flange mount fin baffle with integral tip

Top Head Type:

Elliptical

Bottom Head Type:

Elliptical

CIP:

Yes

Manway:

Yes

Nozzle Schedule:

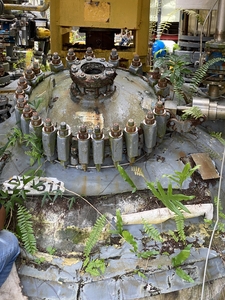

24" man way with pro ring and man way assist. With sight glass assembly. Three 10" nozzles, one 8" nozzles, one 4 & 3/8" drive nozzle, seven 4" nozzles, one 4" bottom outlet, eleven 3" nozzles for jackets, two 2" nozzles and three 1/2" nipples

Support Type:

Legs

Additional Info:

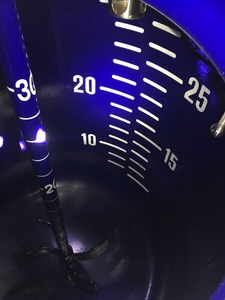

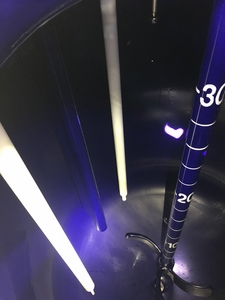

conventional jacket with welded 2:1 elliptical heads Body with graduation lines Shell=1 & 1/8", Heads=1.125", jacket=0.75" Two PTFE dip tubes and Alloy spray balls for CIP
