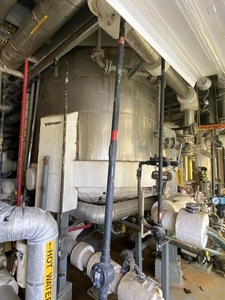

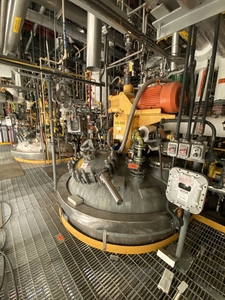

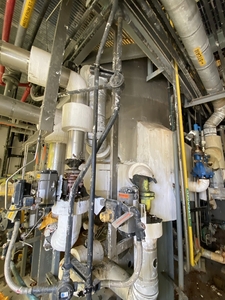

Glasslined Pfaudler RS Batch-Type Agitated Reactor - IPP# 241028

Type: Reactor

Subtype: Batch-Type Agitated

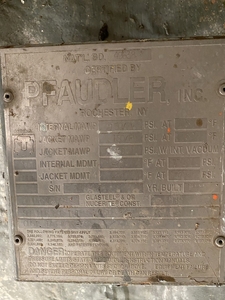

Manufacturer: Pfaudler

Model: RS

Condition: Used

Material: Glasslined

Capacity (Design): 7,571 L (2,000 gallons)

Internal Pressure: 10.3 bar (150 psi)

conventional jacket with welded 2:1 elliptical heads Body with graduation lines Shell=1 & 1/8", Heads=1.125", jacket=0.75" Two PTFE dip tubes and Alloy spray balls for CIP

Internal Full Vacuum: Yes. Internal Temperature: 232.2 °C (450 °F). Jacket Pressure: 10.3 bar (150 psi). Jacket Temperature: 232.2 °C (450 °F). Orientation: Vertical. Agitation: Yes. Diameter: 1,981 mm (78 in). Straight Side Length: 2,032 mm (80 in). CIP: Yes. Support Type: Legs.

Type: Reactor

Subtype: Batch-Type Agitated

Manufacturer: Pfaudler

Model: RS

Condition: Used

Material: Glasslined

Capacity (Design): 3,785 L (1,000 gallons)

Internal Pressure: 10.3 bar (150 psi)

Conventional jacket with welded 2:1 elliptical heads. Shell=1", heads =1", jacket =5/8". . Mixing by a Cryo-Lock 29" CW CBT hub, with calibration lines. PTFE Dip tube, Alloy dip pipe and CIP spray balls. 18" manway with sight glass assembly, pro ring and man way assist.

Internal Full Vacuum: Yes. Internal Temperature: 232.2 °C (450 °F). Jacket Pressure: 10.3 bar (150 psi). Jacket Temperature: 232.2 °C (450 °F). Jacket Material of Construction: Carbon Steel. Orientation: Vertical. Agitation: Yes. Diameter: 1,524 mm (60 in). Straight Side Length: 1,727 mm (68 in). CIP: Yes. Support Type: Legs.

Type: Reactor

Subtype: Batch-Type Agitated

Manufacturer: Pfaudler

Model: RS

Condition: Used

Material: Glasslined

Capacity (Design): 11,356 L (3,000 gallons)

Internal Pressure: 10.3 bar (150 psi)

Conventional jacket with welded 2:1 elliptical heads heads= 1.313", jacket = 0.75" Glass lined thermowell PTFE dip tube with calibration lines on body and mixer

Internal Full Vacuum: Yes. Internal Temperature: 232.2 °C (450 °F). Jacket Pressure: 10.3 bar (150 psi). Jacket Temperature: 232.2 °C (450 °F). Jacket Material of Construction: Glasslined. Orientation: Vertical. Agitation: Yes. Diameter: 2,438 mm (96 in). Straight Side Length: 1,854 mm (73 in). Support Type: Lugs.

Type: Reactor

Subtype: Batch-Type Agitated

Manufacturer: Pfaudler

Model: RS

Condition: Used

Material: Glasslined

Capacity (Design): 11,356 L (3,000 gallons)

Internal Pressure: 10.3 bar (150 psi)

Conventional jacket, welded 2:1 elliptical heads. Shell=0.75", heads= 1.313", jacket = 0.75" Pfaudler 7055 SRW with a 20 HP motor and a 18:1 ratio, with a dry seal. Cryo-Lock mixer 41" CBT hub CW with calibration lines. Two PTFE dip tube, with calibration lines on body and mixer. 24" manway with pro ring, and sight glass assembly and man way assist

Internal Full Vacuum: Yes. Internal Temperature: 232.2 °C (450 °F). Jacket Pressure: 10.3 bar (150 psi). Jacket Temperature: 232.2 °C (450 °F). Orientation: Vertical. Diameter: 2,438 mm (96 in). Straight Side Length: 1,854 mm (73 in). Support Type: Lugs.
