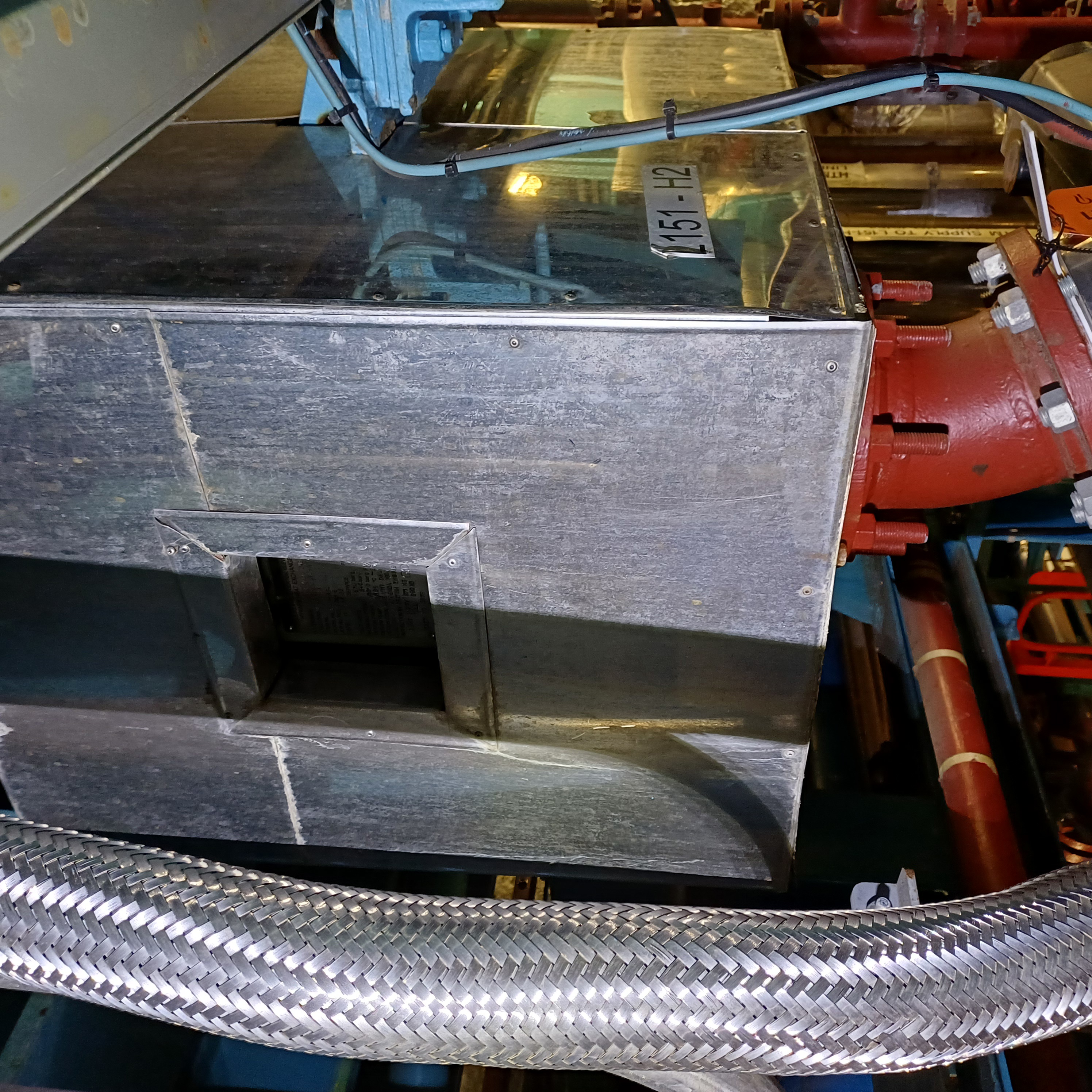

Graphite block Heat Exchanger - IPP# 242503

Type: Heat Exchanger

Subtype: Block

Manufacturer: Ralph Coidan LTD.

Model: CBS-H30-MK2

Condition: Used

Material: Graphite

Heat Transfer Surface Area: 2.6 m² (28.4 ft²)

Orientation: Horizontal

• design pressure process side: 4 barg + full vacuum @ -29/185 degrees C,
• service side 10 barg + full vacuum @ -29/185 degrees C,
• design code ASME VIII DIV 1 1989 & ADDENDA 1990

Shell Pressure: 10 bar (145 psi). Shell Temperature: 185 °C (365 °F). Shell Material: Carbon Steel. Vacuum: Yes. Head Material: Graphite. Process Pressure: 4 bar (58 psi). Pack Material: Graphite. Process Temperature: 185 °C (365 °F).

Type: Heat Exchanger

Subtype: Block

Manufacturer: Ralph Coidan LTD.

Model: BD20

Condition: Used

Material: Graphite

Heat Transfer Surface Area: 1.86 m² (20 ft²)

Shell Pressure: 5.2 bar (75.4 psi)

Shell Temperature: 200 °C (392 °F). Vacuum: Yes. Process Pressure: 5.2 bar (75.4 psi). Process Temperature: 200 °C (392 °F).

Type: Heat Exchanger

Subtype: Block

Manufacturer: Ralph Coidan LTD.

Condition: Used

Material: Graphite

Nozzle Schedule: openings 2-150mm, 2-100mm

Type: Heat Exchanger

Subtype: Block

Manufacturer: Ralph Coidan LTD.

Model: CYH-H55

Condition: Used

Material: Graphite

Heat Transfer Surface Area: 10 m² (107.6 ft²)

Orientation: Horizontal

Hykarb carbon cubic block cross flow heat Exchanger design pressure process side 7.8 barg @ 0/160 degrees C service side 15 barg @ 0/160 degrees C operating pressure process side 5.2 barg + full vacuum @ -0.185 degrees C service side 10 barg @ 2.417 degrees C 24 pass on process side, 10 pass on service side, unit made from (4) carbon HP2/20 block elements, 536mm block length

Shell Pressure: 10 bar (145 psi). Shell Temperature: 160 °C (320 °F). Nozzle Schedule: openings: process side 2- 50mm, service side 2-50mm. Process Pressure: 5.2 bar (75.4 psi). Process Temperature: 160 °C (320 °F).
