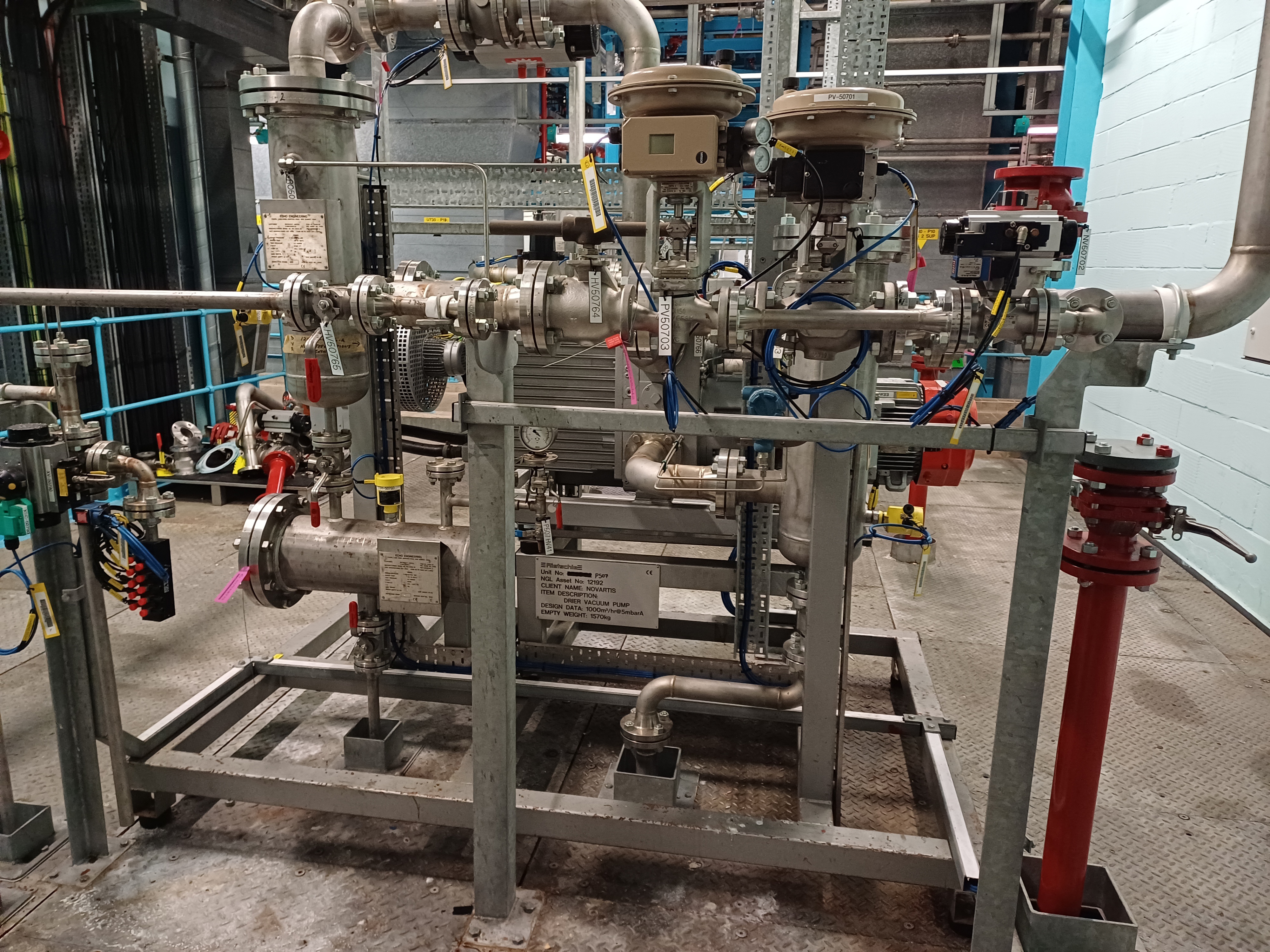

Name: Rietschie VWZ 252 (24) OOP 101910-2400 Pump-Vacuum
Brand: Rietschie
SKU: 242587

Overview

Type:

Pump-Vacuum

Manufacturer:

Rietschie

Model:

VWZ 252 (24) OOP 101910-2400

Condition:

Used

Material:

Stainless Steel 316

Capacity

Air Flow:

1,000 m3/h (589 CFM)

Other Specifications

Discharge Pressure:

0.005 bar (0.07 psi)

Inlet Diameter:

100 mm (3.9 in)

Outlet Diameter:

75 mm (3 in)

Temperature:

125 °C (257 °F)

Cooling or Seal Water:

Yes

Dimensions

Orientation:

Horizontal

Additional Info:

temperature 80/125 degrees C,
pump driven by 11/12.5 kW, 3/50-60/690-400/660-300/415-440 volt, 1470/1466/1473/1766 rpm EExde IIB T4 B5 ATEX motor,
water cooled,

unit includes

(1) 316L stainless steel vertical pressure pre-separator tank, manufactured by Echo Engineering, RIE/3809/3B, design pressure 3 barg + full vacuum @ -25/100 degrees C, 1 x bolt flat top, 1 x weld dished bottom, 219mm diameter x 755mm long,

(1) 316L stainless steel horizontal pressure condensate tank, manufactured by Echo Engineering, RIE/3809/C, design pressure 3 barg + full vacuum @ -25/100 degrees C, 1 x bolt flat end, 1 x weld dished end, 219mm diameter x 645mm long,

(1) 316L stainless steel vertical pressure knock out tank, manufactured by Echo Engineering, RIE/3809/2B, design pressure 7 barg + full vacuum @ -25/135 degrees C, 1 x bolt flat top, 1 x weld dished bottom, 219mm diameter x 790mm long,

stainless Steel Rietschle VWZ-252 (24) Pump-Vacuum

Type: Pump-Vacuum

Manufacturer: Rietschie

Model: VWZ-252 (24)

Condition: Used

Material: Stainless Steel 316

Air Flow: 250 m3/h (147.1 CFM)

Discharge Pressure: 0.01 bar (0.15 psi)

250/300 m3/hr rotary vane vacuum pump skid package,
ATEX compliant,
working pressure 1013 mbara,
temperature 80-125 degrees C,
1450 rpm,
shaft power 8kw,
pump driven by 11/12.5 kW, 3/50-60/690-400/660-380/415-440 volt, 1470/1466/1473/1766 rpm ATEX IP55 EExde IIB T4 B5 motor,
water cooled with radiator and fan, pre-separator, waste oil/solvent collection vessel

Orientation: Horizontal. Inlet Diameter: 75 mm (3 in). Outlet Diameter: 50 mm (1.97 in). Temperature: 125 °C (257 °F). Cooling or Seal Water: Yes.

Rietschie VWZ 252 (80) Pump-Vacuum

Type: Pump-Vacuum

Manufacturer: Rietschie

Model: VWZ 252 (80)

Condition: Used

Material: Stainless Steel 316

Air Flow: 1,000 m3/h (589 CFM)

Discharge Pressure: 0.005 bar (0.07 psi)

temperature 80/125 degrees C,
pump driven by 11/12.5 kW, 3/50-60/690-400/660-300/415-440 volt, 1470/1466/1473/1766 rpm EExde IIB T4 B5 ATEX motor,

unit includes

(1) 316L stainless steel vertical pressure pre-separator tank, manufactured by Echo Engineering, RIE/3809/3A, design pressure 3 barg + full vacuum @ -25/100 degrees C, 1 x bolt flat top, 1 x weld dished bottom, 219mm diameter x 755mm long,

(1) 316L stainless steel horizontal pressure condensate tank, manufactured by Echo Engineering, RIE/3809/1A, design pressure 3 barg + full vacuum @ -25/100 degrees C, 1 x bolt flat end, 1 x weld dished end, 219mm diameter x 645mm long,

(1) 316L stainless steel vertical pressure knock out tank, manufactured by Echo Engineering, RIE/3809/2A, design pressure 7 barg + full vacuum @ -25/135 degrees C, 1 x bolt flat top, 1 x weld dished bottom, 219mm diameter x 790mm long,

Orientation: Horizontal. Inlet Diameter: 100 mm (3.9 in). Outlet Diameter: 75 mm (3 in). Temperature: 125 °C (257 °F). Cooling or Seal Water: Yes.
