Nash SC2SS Vacuum pump, with vapor recovery system Test # 90Y002 The system includes the following equipment; a vacuum pump, two heat exchangers, a separating tank, and seal pots. The direct drive vacuum pump, is manufactured by Nash, size SC2SS, Pos. 4 ,Vac, rated 200 cfm @ 5-20" Hg. The vapor exchanger is a 30 sq. ft., all 316 SS, horizontal heat exchanger manufactured by Industrial Process Equipment corp., Model # 2ST8-60, Serial # 105-641A National Board # 988 It’s shell and tubes are rated for 150/FV The condensate chiller is a 10 sq.ft., 316SS tube bundle, 316SS heads, with CS shell, horizontal heat exchanger and is also manufactured by Industrial Process Equipment Corporation. Serial # 1056413, and National Board # 989, Rated for 150/FV psi in the shell and tubes. The dual seal pot arrangement, with Nitrogen purge is provided by Duramettalic, Canada/Condex Heat Transfer Corp. Serial # 91-3-4146 & 4179, and rated for 400 psi at 400 degrees F. Both have level sight glasses and N2 purge line with regulator and Liquid make up valves. The units 316 SS separator, is manufactured by Jenco, Serial # 91-1327, National Board # 525, and rated for 30/FV at 350 psi. The separator tank also has a liquid level sight glass. The vapor inlet line is 4" flanged, and separator outlet is 1”. Automatic valves for liquid flow control are provided by Fisher and El-O-Matic, and the vapor contact piping is 316 SS. System includes all DP cells, RTD temperature probes, and pressure gauges. Designed to be used in a hazardous atmosphere, skid has a 60 amp Square D breaker, and explosion proof switches and controls.

SIHI vacuum skid consisting of (1) 140m3/hour carbon steel liquid ring vacuum pump 3 bar (1) 4 liter carbon steel separator vessel, pressure -1/3 barg @ 120 degrees C 273mm diameter x 1020mm total height, (1) 9.9 square meter carbon steel condenser, pressure tube side 6 barg @ 250 degrees C, shell -1/3 barg @ 250 degrees C,

System with Knock out pot and heat exchanger. 25 Gallon 304 SS, receiver by J D. Cousins, rated for FV 75 psi at 350 degrees F. 30 Gallon condensate receiver, by TMT, Carbon steel, vertical, 12.75" x 38". 69 Sq.Ft. Hastelloy tube, tube sheet and head, CS shell, vertical heat exchanger shell rated for 100 psi at 300 degrees F, tubes rated for FV/100 psi at 300 degrees F.

• vacuum pump skid with booster pump,
• water cooled,
• 1072/1295 m3/hr booster pump manufactured by Rietschle, type VWP 1000 (02) 101956-0200, 43mbar max pressure, 4kW, 3000 rpm,
• (1) radiator,
• (1) 63liter stainless steel pre-separator tank,
• (1) 15 liter stainless steel condensate collection tank,

Part number: BN117 4 Additional equipment: vacuum receiver SIHI stock number 900256, mechanical seals on shaft with vacuum receiver

mechanical seals on shaft (2) 1.5" inlets, (2) 1.5" outlets Direct coupled to a 10 HP Motor.

mechanical seals on shaft, (2) 1.5" inlets, (2) 1.5" outlets Direct coupled to a 10 HP Motor.

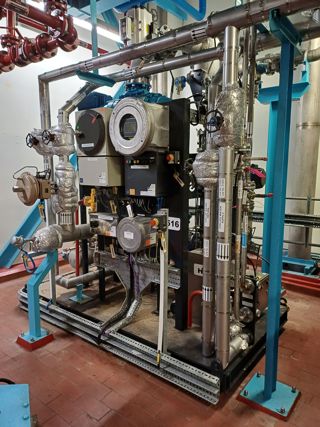

Sihi Dry vacuum pump skid with a Roots booster pump Manufactured by Sterling Fluid systems SIHI dry H400/2000 roots input 400 volt, IP55 protection pressure 10mbar @ 0/40 degrees C, protection Ex II IG/2G IIB3/IIC T3 skid includes (1) 400m3/hr dry running SIHI vacuum pump, (1) booster pump, driven by 4kW, 3/50-60/400 volt EExde II CT4 motor, (1) stainless steel welded plate heat exchanger, manufactured by Vahterus, serial #32587, design pressure plate side 1/12 bar @ 50/250 degrees C, shell side 1/12 bar @ 50/250 degrees C, (1) 25liter stainless steel horizontal condensate vessel, manufactured by HS Apparatetechnik, serial #048/11620/1, design pressure 6 bar @ 100 degrees C,

SIHI vacuum skid carbon steel liquid ring vacuum pump 33 mbar 380/660 volt (1) 60 liter carbon steel separator vessel, pressure 3 barg @ 120 degrees C (1) carbon steel condenser, 170mm diameter x 2130mm long, no nameplate

7.7 x 10-4 Torr Two Stage Oil seal Size: DA132MB-D Rotary Vane Mechanical Vacuum Pump 495 lbs

Pressure: 200 mbar With SIHI two stage water seal vacuum pump Typ: SIHI, LPHE 45316 driven by 3.0kW 3/50/380V, 1440 RPM motor. Mounted on unitized base.

liquid ring design with a total recirculation system type 309-302, SIHI Drawing number SV1677. System includes a 4" diameter x 30" long, and a gas/liquid seperator/service liquid tank, CS 20" diameter x 45" straight side, rated 16psi @ -20 to 200 degrees f.

• This is a complete system with two knock out pots, two vacuum pumps, two seal pots and two heat exchangers, all mounted on a CS framework.
• Vacuum pumps rated for 120 mmbar ABS
• VS2550 A & B -Seal liquid Tanks, CS construction 70 gallon vertical, rated for 125 psi at 300 degrees F. 24" diameter x 60" straight side with welded dish heads.
• VS2550 C & D Seal Liquid surge drum, 316 SS 11 gallon vertical. Rated for FV 30 psi at 300 degrees F. 14" diameter x 26" straight side with welded dish heads.
• HX 2550 A & B Parallel mounted plate and frame heat exchangers. (seal cooling)19 Sq. Ft., CS Frame 316 SS plates, hot and cold side rated for FV/125 psi at 150 degrees F. Duty 48,000 btu's.

• APOVAC liquid ring vacuum pump skid,
• suction pressure -1 barg,
• max allowable pressure 4 barg,
• ATEX Ex II 2G T4,
• design code: PED 97/23/EG, CE Zone 1,

system includes:

(1) 260m3/hr 316 stainless steel liquid ring vacuum pump, manufactured by NSB Gas Processing, type PMZF 2510, driven by 7.5/8.6kw 3/50-60/690-400/660-380/415-440 volt 1447/1439/1454/1739 rpm IP55, ATEX EEx de IIB T4 motor,

(1) 80 liter 316 stainless steel liquid ring tank, manufactured by Messer Schweisstechnik Ag, design pressure 4 bar @ 175 degrees C (190 liter), weld flat top, weld dished bottom, (1) 3.2 square meter 316 stainless steel tube head and shell vertical heat exchanger, design pressure tube side: 4 bar @ 175 degrees C, shell 10 bar @ 175 degrees C, (54) 25mm diameter x 1.5 x 848mm long 316 stainless steel tubes, single pass tube side,

(1) 316 stainless steel bonnet head, 273mm diameter 316 stainless steel shell, all parts mounted on a carbon steel skid

• oil lubricated rotary vane vacuum pump,
• Ex II 3G IIB T3 X inside, Ex II 2GD IIB 135 deg C (T4) X classification,
• 0.1 hPa (mbar),
• 1500 rpm max,
• m= 250kg,
• driven by 7.5kW, 3/50/690/400/415 volt, 1463/1467 rpm Ex de IIB T4 Gb/Ex tb IIIC T125C Db ATEX motor

1 mbar

• Additional pump: 350 m3/Hr @ 33 to 0 mbar, SIHI 316 Stainless Steel liquid ring vacuum pump
• Additional motor: 15 Kw Loher E-Motor, Type DNGW 160LB-04A, 500 Volt, 3 phase, 50 Cycle, 1450 U/min, ExProof CT4
• Additional booster: SIHI Sterling CS Vacuum booster, rated 4000 m3/Hr, 11KW, type WNMY4000, Pump Number D729520106, driven by a 11 Kw Loher E-motor, type DNGW-160LB-04A, 500 volt, 50 cycle, 2930 U/min
• Separator tank: 1.730mm diameter x 2.940 mm long, 110 liter Stainless steel, rated 0,5 bar @ 100 degrees C
• Package dimensions: 2.940 mm long x 1.730 mm wide with separator x 3.315 height over all
• Package weight: 5.200 Kg (including carbon steel frame)

SIHI vacuum skid consisting of (1) 110m3/hour carbon steel liquid ring vacuum pump 30/1100 mbar (1) 6 liter carbon steel separator vessel, pressure -1/3 barg @ 120 degrees C, 273mm diameter x 1.2m high, (1) 2.85 square meter carbon steel condenser, pressure tube side 6 barg @ 120 degrees C, shell -1/3 barg @ 120 degrees C

vacuum pump system 2 stage liquid ring vacuum pump, 33 mbar@2 bar, type LPHA 55320 serial # BN BFK 42 4, pump#D-005187901, openings: 4 x DN 50 PN16 e-motor type DNGW-160LB-04A, motor#3306781, 500V/50Hz/22,8A/15kW/1450 U/min, ex proof (CT4); (1) 14.000 m³/h SIHI c/steel roots vacuum pump with water cooling, type WNMY 14000, serial#A2 XOA OBO, pump# D-72-945-0106, CE confirm, (1)down openig connecting tube: approx: 300 mm diameter,(1) top opening: DN 400 PN10, no motor (1) 4.000 m³ SIHI c/steel roots vacuum pump with water cooling, type WNMY4000 A2 XOA OBO, pump#62 125 0006, CE confirm,,(1)down opening: DN 250 PN16 (1)top opening: DN 250x273 PN10, driven by LOHER e-motor type DNGW-160MB-02C, motor#3272776, 500V/50Hz/16,4A/11kW/2920 U/min, ex proof (CT4); (1) 110 liter s/steel separator @ 0,5 bar@100° C, s/steel (316), mfd by STERLING SAT,

• 3600 RPM
• Busch R550 oil, 1 quart.

• 3600 RPM
• Busch R550 oil, 1 quart.

Torr: 0.5 Type: Oil seal vacuum pump Additional features: Base, control panel, oil accumulator tank.

system included (2) approx 500 m³/h 316 stainless steel single stage liquid ring vacuum pumps, first pump, type SIHI LPHA-50115 / BN 135 42 0, Motor: ex proof (G3), second pump, type SIHI LPH-50115, serial # D-2879337, driven by 10.0 kW, 3/50Hz/500 V/1460 rpm, mfd LOHER electrical motor, ex proof (G3), (1) 4.2 square meter 316 stainless steel (1.4571) shell and tube heat exchanger, serail # 7032/224, manufactured by GESSNER GmbH Germany, rated shell side -1/7 bar @ 250 degrees C, volume 43 liter, rated tube side -1/7 bar @ 250 degrees C, volume 34 liter. (1) 260 liter s/steel reciever, mfd by WERK OFFENBACH, serial # 282 rated -1/6 bar @ 250 degrees C .

3-stage vac pump/jet system 1st stage: Stokes CS rotary vac pump, Mdl 310-41, SN 87533. W/4" suction and discharge opening. Powered by 2 HP, 3/50/60/208/230/460 volt, 2870/3480 rpm direct coupled motor. 2nd stage: Hick and Hargreaves CS vac jet, Order #CA13305. Nozzle throat dia 5.2mm. 3rd stage: Hicks water ring vac pump. SN H9126, Type SHR2200. 1470 rpm. 2" suction and discharge openings. W/solenoid operated inlet water piping and Burgess Manning water separator on discharge. Powered by 20 HP, 3/60/230/460 volt, 1760 rpm direct coupled TEFC motor.

Batch Number: 15012

vacuum pump system system included (1) 316 stainless steel double stage liquid ring vacuum pump ex proof (G3), (1) 8.5 square meter 321 stainless steel (1.4541) shell and tube heat exchanger, serail # 7033/71, mfd by GESSNER GmbH, Germany, rated shell side -1/6.2 bar @ 350 degrees C, volume 89 liter, rated tube side -1/6.2 bar @ 350 degrees C, volume 56 liter. (2) s/steel reciever.
