Showing 25 of 46 matching Pusher Centrifuges.

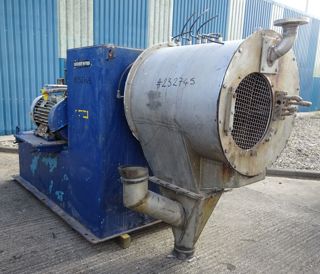

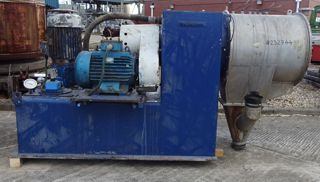

500/410mm
two stage pusher centrifuge
5.5 ton/hour solids throughput,
residual moisture 3% by weight,
wash medium is pure condensate @ 50 degrees C,
pusher driven by 22kw (30hp), 3/50/400/690 volt 2945 rpm IP55 (equivalant to EX class 1 Div 11) motor, basket sieves with 65 slots, slots outer 0.15mm, inner 0.18mm, approximately 86 to 60 strokes per minute, rotary labyrinth seal, feed pipe, wash pipes with nozzles for each basket, bottom solids discharge
500/410mm diameter,
two stage pusher centrifuge
5.5 ton/hour solids throughput,
residual moisture 3% by weight,
wash medium is pure condensate @ 50 degrees C
pusher driven by 22kw (30hp), 3/50/400/690 volt 2945 rpm IP55 (equivalant to EX class 1 Div 11) motor, basket sieves with 65 slots, slots outer 0.15mm, inner 0.18mm, approximately 86 to 60 strokes per minute, rotary labyrinth seal, feed pipe, wash pipes with nozzles for each basket, bottom solids discharge

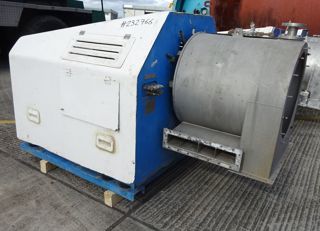

Duplex/317/316 stainless steel two stage pusher continuous centrifugeTwo stage pusher continuous centrifuge
5.5 ton/hour troughput of solids
10/130 degrees C
cake thickness of outer basket 40mm (max)
inner basket 40mm,
force @ max speed 490/570 G,
nominal volumne 15.5 dm3, inner basket screen slot width 0.2mm,
outerbasket screen 0.2mm, outer and inner baskets are Duplex stainless steel
pusher mechanism belt driven by a 7.5 kW (10hp), 3/50/400/690 volt, 1445 rpm IP55, EFF 1
pusher stroke 40mm, stoke number (frequency) 60 rpm, pusher force 35 kN,
solids side discharge, centrifuge main fields of application: fertilisers, plastics, explosives foodstuff, fodder, processing of salts, wherever high product quality, high throughputs, low residual moisture, efficient washing of the solids and long residence times are required along with continuous operation
316 stainless steel
5.5 ton/hour troughput of solids
130 degrees C (max)
inner diameter of outer basket 412mm,
inside diameter of inner basket 356mm
cake thickness of outer basket 41mm (max),
inner basket 40mm
centrifugal force @ max speed 490/570 G
nominal volumne 15.4 dm3, inner basket screen slot width 0.2mm, outerbasket screen 0.2mm, outer and inner baskets are Duplex stainless steel (1.4470), slot screens are 317 stainless steel (1.4439), pusher plate is 316 stainless steel (1.4404), housing is 316 stainless steel (1.4404),
pusher mechanism belt driven by a 7.5 kW, 3/50/380 volt, 1430 rpm IP55 CE motor,
pusher stroke 40mm, stoke number (frequency) 60 rpm, pusher force 35 kN, solids side discharge,
centrifuge main fields of application: fertilisers, plastics, explosives, foodstuff, fodder, processing of salts, wherever high product quality, high throughputs, low residual moisture, efficient washing of the solids and long residence times are required along with continuous operation
Basket belt driven by 70 HP (55 KW), 3/50/415 volt, 1460 rpm flameproof motor. Push mechanism direct driven by 15 HP, 3/50/415 volt, 960 rpm non-flameproof motor.
Unit with hinged front door w/17" sight glass.
Openings: 1-4" feed pipe, 10" x 40" btm discharge, 1-4", 2-1/2". Filtrate 13" x 18".
Baseplate mounted. (*)
non-flameproof motor
Openings: 1-376mm feed pipe,
Basket belt driven by 24 HP, 3/50/400 volt, 1440 rpm non-flameproof motor
1300mm x 431mm discharge,
Openings: 1-376mm feed pipe, 1300mm x 431mm discharge, 2-355mm inspection doors on front cover.

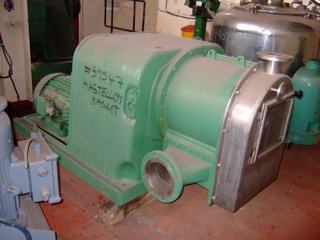

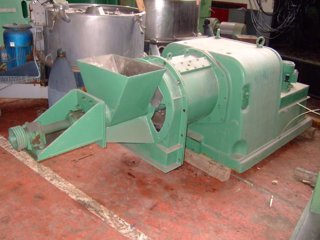

Hastelloy C
2-stage pusher centrifuge
400mm inside diameter 1st stage;
330mm inside diameter 2nd stage
Rubber lined casing
Basket belt driven by 25 HP, 3/50/415 volt, 2900 rpm non-flameproof motor
1-152mm feed,
1-152mm filtrate,
100mm x 500mm solids
Screw conveyor feed

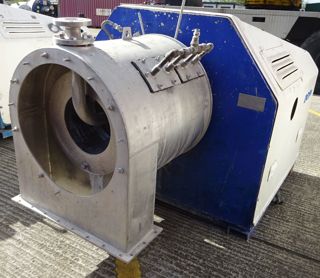

2 stage
pusher centrifuge
can only be used as a SZ 21 because the 2nd drum is missing
with 1.4571 stainless steel housing,
belt driven by (2) electrical motors
first motor: 4kW, manufactured by Schorch,
type KA9132S-BA014-Z,
serial number 1913167,
3~/50Hz/380-660V/1415rpm, ExNIIT3,
second motor: 5,5kW, manufactured by Schorch,
type KA9112M-BA014-Z,
serial number 1913157,
3~/50Hz/380-660V/1440rpm, ExNIIT3.
H1000-K continuous
horizontal worm screen Centrifuge
operating speed 1121 rpm
1m inside diameter 316Ti (1.4581) stainless steel basket
885mm middle diameter,
670mm basket interior height,
20.7mm wall thickness,
316Ti (1.4571/1.4581) stainless steel worm screw,
316Ti (1.4571) stainless steel sieve plate/element,
316Ti (1.4571) stainless steel housing
continuous horizontal worm screen Centrifuge
operating speed 1121 rpm,
1m inside diameter 316Ti (1.4581) stainless steel basket, 885mm middle diameter
20.7mm wall thickness,
316Ti (1.4571/1.4581) stainless steel worm screw,
316Ti (1.4571) stainless steel sieve plate/element,
316Ti (1.4571) stainless steel housing
Order # M-81852
2-stage pusher centrifuge
B #357-62
400mm inside diameter
1st stage; 330mm inside diameter 2nd stage
Rubber lined casing
316 stainless steel front cover
Basket belt driven by 30 HP (22 KW), 3/50/415 volt, 1450 RPM
1-152mm feed, 1-152mm filtrate, 100mm x 500mm solids
with hinged 300mm x 250mm sight glass, solids.

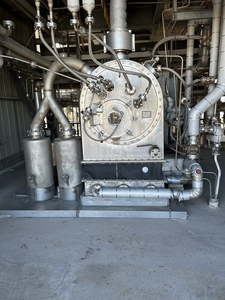

1000 mm
product contact

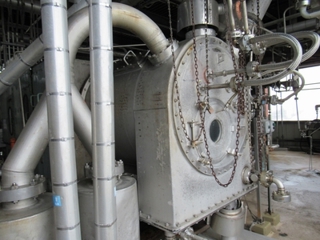

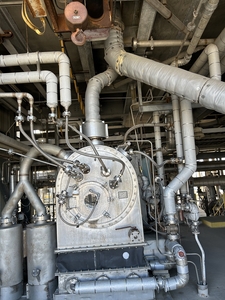

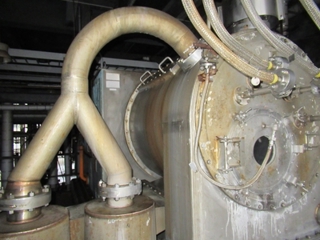

two stage pusher centrifuge
Plant # 5101-0320-32
Basket diameter is 1032 mm, x 315 mm x 315 mm. (estimated inner basket of 932 mm)
Main Drive Horsepower is 125, Rpm is 1800
With two stage washing
Originally designed for maximum feed of 98,000 lbs./hr. of slurry, with 44,100 lbs./hr. of solids and 53,900 lbs./hr. of liquids. At 45 % wt. solids. Exit cake moisture of 6.0 wt.% or less. Vapor tight housing to +27.7” water and -13.8 “ water (vacuum)
Book weight 8,900 kg. (19,621 lbs.)
1000 mm
product contact
two stage pusher centrifuge
Basket diameter is 1032 mm, x 315 mm x 315 mm. (estimated inner basket of 932 mm)
With two stage washing
Originally designed for maximum feed of 98,000 lbs./hr. of slurry, with 44,100 lbs./hr. of solids and 53,900 lbs./hr. of liquids. At 45 % wt. solids. Exit cake moisture of 6.0 wt.% or less. Vapor tight housing to +27.7” water and -13.8 “ water (vacuum)
Book weight 8,900 kg. (19,621 lbs.)
1000 mm
product contact
two stage pusher centrifuge
Plant # 5101-0320-31
Basket diameter is 1032 mm, x 315 mm x 315 mm (estimated inner basket of 932 mm)
Main Drive Horsepower is 125, Rpm is 1800
With two stage washing
Originally designed for maximum feed of 98,000 lbs./hr. of slurry, with 44,100 lbs./hr. of solids and 53,900 lbs./hr. of liquids. At 45 % wt. solids. Exit cake moisture of 6.0 wt.% or less. Vapor tight housing to +27.7” water and -13.8 “ water (vacuum)
Book weight 8,900 kg. (19,621 lbs.)

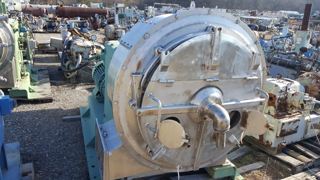

27" single stage pusher type centrifuge
Racetrack discharge
20 HP 3/60/550 volt
Approximately slot width .012" Handbrake
Multi Stage Pusher Centrifuge
1000 mmproduct contact two stage pusher centrifuge Plant # 5101-0620-31Basket diameter is 1032 mm, x 315 mm x 315 mm. (estimated inner basket of 932 mm)Main Drive Horsepower is 125, Rpm is 1800With two stage washing Originally designed for maximum feed of 98,000 lbs./hr. of slurry, with 44,100 lbs./hr. of solids and 53,900 lbs./hr. of liquids. At 45 % wt. solids. Exit cake moisture of 6.0 wt.% or less. Vapor tight housing to +27.7” water and -13.8 “ water (vacuum)Book weight 8,900 kg. (19,621 lbs.)
pusher centrifuge parts
Screens for basket and shaft
1000 mm
product contact
two stage pusher centrifuge
Plant # 5101-0620-32
Basket diameter is 1032 mm, x 315 mm x 315 mm. (estimated inner basket of 932 mm)
With two stage washing
Originally designed for maximum feed of 98,000 lbs./hr. of slurry, with 44,100 lbs./hr. of solids and 53,900 lbs./hr. of liquids. At 45 % wt. solids. Exit cake moisture of 6.0 wt.% or less. Vapor tight housing to +27.7” water and -13.8 “ water (vacuum)
Book weight 8,900 kg. (19,621 lbs.)
1000 mm
product contact
two stage pusher centrifuge
Basket diameter is 1032 mm, x 315 mm x 315 mm. (estimated inner basket of 932 mm)
With two stage washing
Originally designed for maximum feed of 98,000 lbs./hr. of slurry, with 44,100 lbs./hr. of solids and 53,900 lbs./hr. of liquids. At 45 % wt. solids. Exit cake moisture of 6.0 wt.% or less. Vapor tight housing to +27.7” water and -13.8 “ water (vacuum)
Book weight 8,900 kg. (19,621 lbs.)
Bird/Escher Wyss
2-stage pusher centrifuge
mfr #1828,
V #358471/503,
B #0358028.
Slot width both stages .010".
Basket dia 2nd stage 28 1/2" (720mm)
3/60/230/460 volt TEFC drive motor.
single stage
19 HP (14 KW), 3/50/500 volts pump motor.
Handbrake
Stroke length 0-70mm (2 3/4")
stroke frequency 30-80 per min
Buna seals
First stage .127 mm slot, .70 sq meter (7.5 sq ft) screen surface area. Second stage .102 mm slots, .96 sq meter (10.3 sq ft) screen surface area.
single stage
19 HP (14 KW), 3/50/500 volts pump motor
Handbrake
When your operation demands continuous, high-capacity dewatering of coarse solids, pusher centrifuges deliver efficient and robust performance for industrial-scale processes. With over 47 years of process equipment expertise, IPP provides immediate access to high-quality used pusher centrifuges sourced from 20 complete plant sites and included in our inventory of over 15,000 ready-to-ship pieces of equipment. Choosing used pusher centrifuges from IPP allows companies to reduce investment costs, speed up project delivery, and maintain reliable production operations.
Pusher centrifuges are continuous filtering centrifuges that efficiently separate and dewater large volumes of solids from liquids. They use a reciprocating pushing mechanism to advance the solids through a perforated basket, allowing for high throughputs and effective washing of the product cake.
Pusher centrifuges are built to handle abrasive, corrosive, and sanitary processes:
Learn more about continuous centrifuge technologies at Chemical Processing.
Search the IPP inventory or contact IPP’s equipment experts to find a high-performance pusher centrifuge for your bulk separation needs. With ready-to-ship inventory, IPP helps companies improve throughput, meet production goals, and lower equipment investment costs.
