Pressure: 200 mbar
With SIHI two stage water seal vacuum pump
Typ: SIHI, LPHE 45316
driven by 3.0kW 3/50/380V, 1440 RPM motor. Mounted on unitized base.
Type: Pump-Vacuum

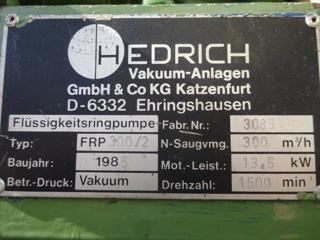

Manufacturer: Hedrich
Model: FRP-300/2
Condition: Used
Air Flow: 300 m3/h (177 CFM)
Orientation: Horizontal

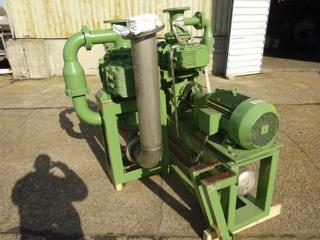

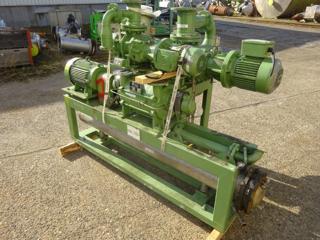

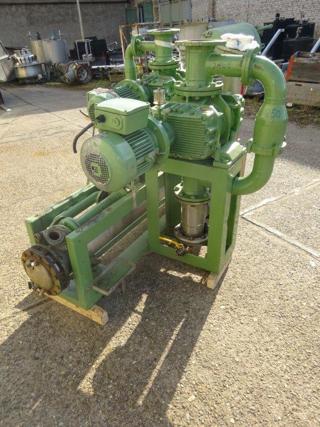

vacuum skid with booster pump
consisting of (1) 300 m3/hr Hedrich 2-stage vacuum pump
(2) Hedrich type R0-5001 booster pump, fabrik #3205

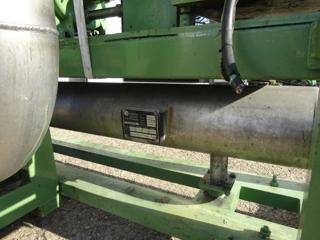

(1) 6.6 square meter 316Ti (1.4571) stainless steel tube and shell horizontal heat exchanger, manufactured by Hedrich, pressure tubeside 10 bar @ 110 degrees C, shell side 10 bar @ 110 degress C, (1) approx 15 liter stainless steel vertical pressure tank, manufactured by Hedrich, weld dished top and bottom,
Type: Pump-Vacuum
Manufacturer: Nash
Model: CL
Condition: Used
Material: Carbon Steel
Air Flow: 1,699 m3/h (1,000 CFM)
Discharge Pressure: 0.812 bar (11.8 psi)
24" hg
Size: 1002
Test number: 7903116
Life Line T AC motor. Model TBDP
Motor style: 6808122G31
Motor rating: 72 amps
Orientation: Horizontal. Inlet Diameter: 203 mm (8 in). Outlet Diameter: 102 mm (4 in).
Type: Pump-Vacuum
Manufacturer: Leybold-Heraeus
Model: RUVAC WA 2001
Condition: Used
Material: Carbon Steel
Air Flow: 2,050 m3/h (1,207 CFM)
Inlet Diameter: 150 mm (5.91 in)
Outlet Diameter: 150 mm (5.91 in).
Type: Pump-Vacuum
Manufacturer: Leybold-Heraeus
Model: RUVAC WA 2000
Condition: Used
Material: Carbon Steel
Orientation: Horizontal
Inlet Diameter: 150 mm (5.91 in)
Outlet Diameter: 150 mm (5.91 in).
