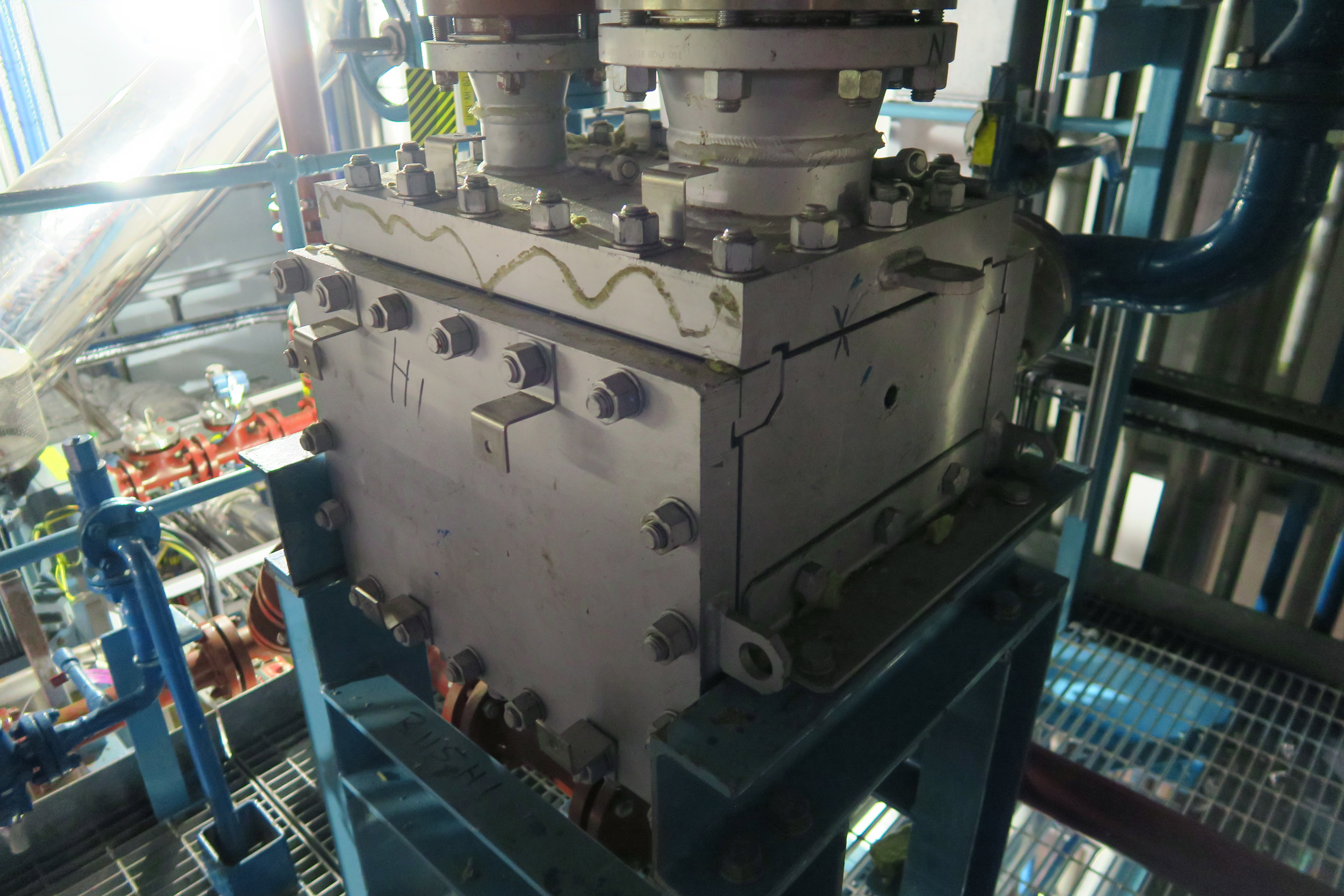

Hastelloy - C22 Alfa Laval CP30-C-80PLs Welded Plate Heat Exchanger - IPP# 242635

Type: Heat Exchanger

Subtype: Welded Plate

Manufacturer: Alfa Laval

Model: CP30-C-80PLs

Condition: Used

Material: Hastelloy - C22

Heat Transfer Surface Area: 9 m² (96.9 ft²)

Process Pressure: 6 bar (87 psi)

• Compabloc welded plate heat,
• design pressure process side 6 barg + full vacuum @ -29/185 degrees C (36.6 liter),
• service side 8 barg + full vacuum @ -29/185 degrees C (33.6 liter),
• 2 pass process side, 4 pass service side,
• (80) Hastelloy C22 welded plates,
• openings process side: 1-150mm, 1-75mm, 1-50mm, service side: 2-75mm,
• mounted on lugs,
• design code: ADM 2000 (PED) CAT III, CE0038,

Process Temperature: 185 °C (365 °F).

Type: Heat Exchanger

Subtype: Welded Plate

Manufacturer: Alfa Laval

Model: CP30-C-80PLs

Condition: Used

Material: Hastelloy - C22

Heat Transfer Surface Area: 8.6 m² (92.6 ft²)

Process Pressure: 6 bar (87 psi)

• Compabloc welded plate heat exchanger
• process side Hastelloy C22, service side 316L (1.4404) stainless steel
• design pressure process side: 6 barg + full vacuum @ 0/185 degrees C (34.6 liter),
• service side: 8 barg + full vacuum @ 0/185 degrees C (33.6 liter)
• 1+1-pass process side, 4-pass service side
• (80) Hastelloy C22 welded plates
• openings process side: 1-150mm, 1-80mm, 1-50mm, service side: 2-80mm
• mounted on lugs
• design code: AD-Merkblatt Ed.2000

Process Temperature: 185 °C (365 °F).

Type: Heat Exchanger

Subtype: Welded Plate

Manufacturer: Alfa Laval

Model: CP30-C-80PLs

Condition: Used

Material: Stainless Steel 316L

Heat Transfer Surface Area: 9 m² (96.9 ft²)

Process Pressure: 6 bar (87 psi)

• design pressure side A: -1/6 barg @ -29/185 degrees C (32 liter),
• side B: -1/8 barg @ -29/185 degrees C (32 liter),
• 316L stainless steel welded plates,
• 2-pass side A, 4-pass side B,
• openings side A 1-150mm, 1-75mm, 1-50mm, side B 2-75mm,
• Mounted on lugs,
• design code: ADM 2000 (PED), CAT III, fluid group 1, CE0038,

Process Temperature: 185 °C (365 °F).

Type: Heat Exchanger

Subtype: Welded Plate

Manufacturer: Alfa Laval

Model: CPF15-H-90Pls

Condition: Used

Material: Hastelloy - C22

Heat Transfer Surface Area: 2.1 m² (22.6 ft²)

Process Pressure: 6 bar (87 psi)

• Compabloc welded plate heat exchanger,
• design pressure side A: 6 barg + full vacuum @ -29/185 degrees C (10.3 liter),
• side B: 8 barg + full vacuum @ -29/185 degrees C (8.9 liter),
• design code: PED II module D1,

Process Temperature: 185 °C (365 °F).
