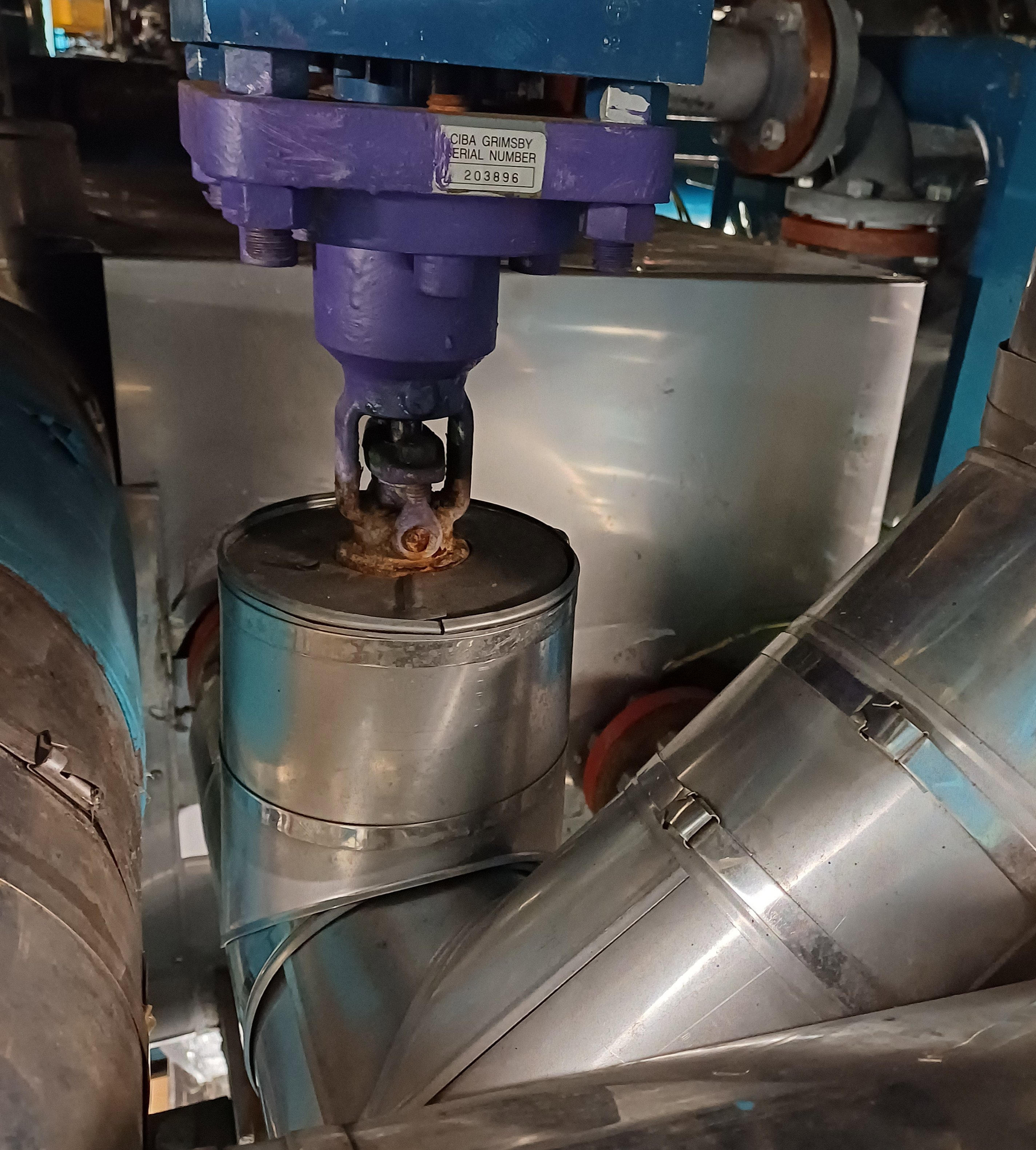

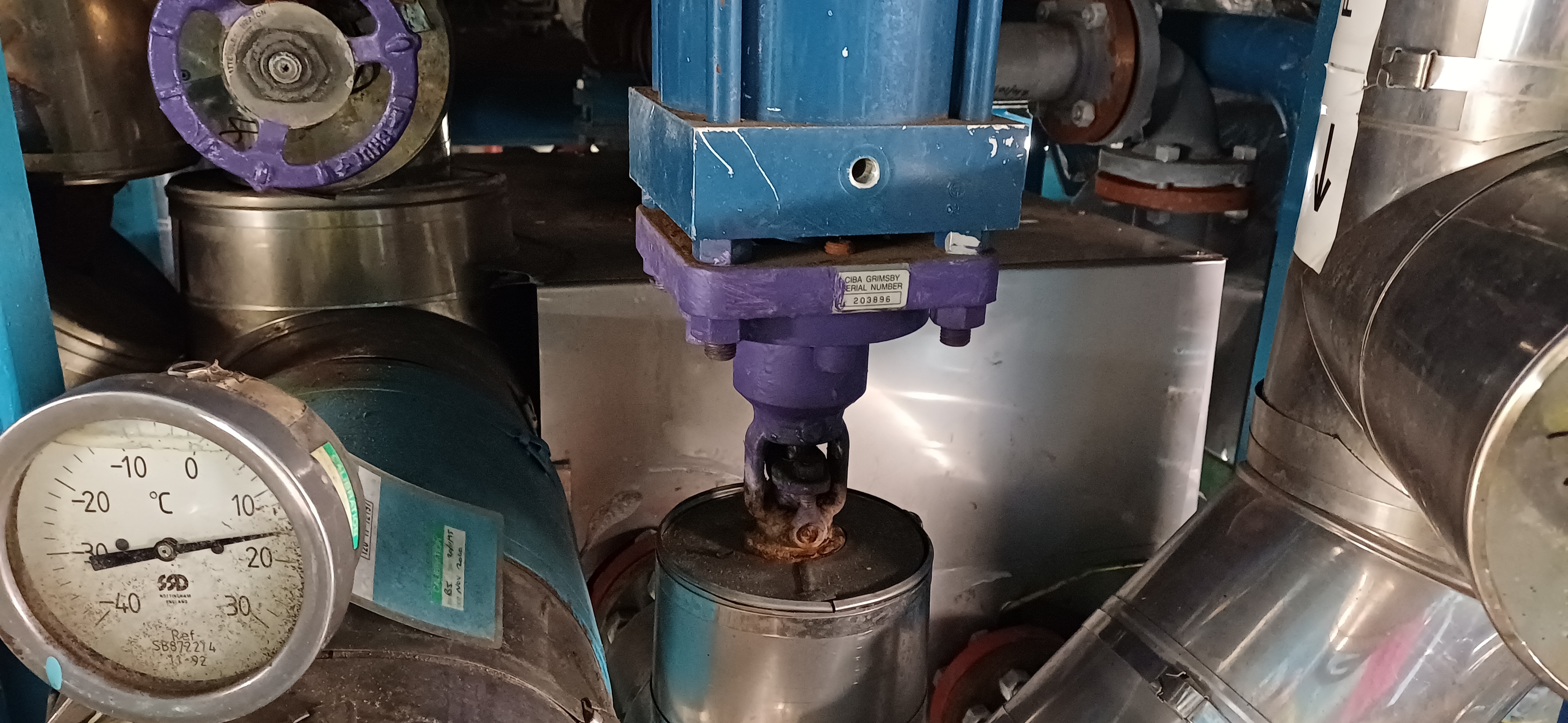

Name: Ralph Coidan BD 40S PTFE Impregnated Graphite Block Heat Exchanger
Brand: Ralph Coidan LTD.
SKU: 242647

Graphite Ralph Coidan BD 40S Block Heat Exchanger

Type: Heat Exchanger

Subtype: Block

Manufacturer: Ralph Coidan LTD.

Model: BD 40S

Condition: Used

Material: Graphite

Heat Transfer Surface Area: 3.5 m² (37.7 ft²)

Orientation: Horizontal

Hykarb carbon
design pressure process side: 6 barg + full vacuum@ -29/185 degrees C,
service side 8 barg + full vacuum @ -29/185 degrees C,
26 liter volume
design code: ASME VIII DIV 1, PED CAT: II gas group 1

Shell Pressure: 8 bar (116 psi). Shell Temperature: 185 °C (365 °F). Shell Material: Carbon Steel. Vacuum: Yes. Head Material: Graphite. Process Pressure: 6 bar (87 psi). Pack Material: Graphite. Process Temperature: 185 °C (365 °F). Service Side Capacity: 26 L (6.9 gallons). Process Side Capacity: 26 L (6.9 gallons).

Graphite Ralph Coidan BD 40S Block Heat Exchanger

Type: Heat Exchanger

Subtype: Block

Manufacturer: Ralph Coidan LTD.

Model: BD 40S

Condition: Used

Material: Graphite

Heat Transfer Surface Area: 3.5 m² (37.7 ft²)

Orientation: Horizontal

carbon cubic Hykarb
Design pressure process side 6 barg + full vacuum @ -29/185 degrees C,
service side 8 barg + full vacuum @ -29/50 degrees C
design code: ASME VIII DIV I 1989 & addenda 1990 PED CAT II GAS GROUP 2

Shell Pressure: 8 bar (116 psi). Shell Temperature: 50 °C (122 °F). Shell Material: Graphite. Vacuum: Yes. Process Pressure: 6 bar (87 psi). Pack Material: Graphite. Process Temperature: 185 °C (365 °F).

Ralph Coidan BD 40S PTFE impregnated Graphite Block Heat Exchanger

Type: Heat Exchanger

Subtype: Block

Manufacturer: Ralph Coidan LTD.

Model: BD 40S

Condition: Used

Material: Graphite

Heat Transfer Surface Area: 3.4 m² (36.4 ft²)

Orientation: Horizontal

design pressure process side: 6 barg + full vacuum@ -29/185 degrees C,
service side 8 barg + full vacuum @ -29/185 degrees C,
16.322kW total duty,
design code ASME VIII DIV 1 1989 & addenda 1990
PED CAT: II Gas group 1
CE0040

Shell Pressure: 8 bar (116 psi). Shell Temperature: 185 °C (365 °F). Shell Material: Graphite. Vacuum: Yes. Head Material: Graphite. Nozzle Schedule: process side: 1-100mm, 1-80mm, service side: 2-50mm. Process Pressure: 6 bar (87 psi). Pack Material: Graphite. Process Temperature: 185 °C (365 °F). Service Side Passes: 8. Process Side Passes: 1. Service Side Capacity: 26 L (6.9 gallons). Process Side Capacity: 26 L (6.9 gallons).
