Polypropylene Max Gschwend AG Scrubber - IPP# 242725

  • Polypropylene Max Gschwend AG Scrubber - IPP# 242725 Polypropylene Max Gschwend AG Scrubber - IPP# 242725
  • Polypropylene Max Gschwend AG Scrubber - IPP# 242725 Polypropylene Max Gschwend AG Scrubber - IPP# 242725
  • Polypropylene Max Gschwend AG Scrubber - IPP# 242725 Polypropylene Max Gschwend AG Scrubber - IPP# 242725
  • Polypropylene Max Gschwend AG Scrubber - IPP# 242725 Polypropylene Max Gschwend AG Scrubber - IPP# 242725
  • Polypropylene Max Gschwend AG Scrubber - IPP# 242725 Polypropylene Max Gschwend AG Scrubber - IPP# 242725
  • Polypropylene Max Gschwend AG Scrubber - IPP# 242725
  • Polypropylene Max Gschwend AG Scrubber - IPP# 242725
  • Polypropylene Max Gschwend AG Scrubber - IPP# 242725
  • Polypropylene Max Gschwend AG Scrubber - IPP# 242725
  • Polypropylene Max Gschwend AG Scrubber - IPP# 242725
Overview
Scrubber
Max Gschwend AG
Used
Polypropylene
Capacity
20 m3/h (11.8 CFM)
Dimensions
8,700 mm (343.3 in)
630 m (2,050 ft)
Other Specifications
0.15 bar (2.2 psi)
170 °C (338 °F)
Yes
Hedgehog
1,650 L (58.6 ft3)
  • polypropylene scrubber system,
  • gas flow 500m3/hr,
  • IF gas leakage 1500m3/hr,
  • flow rate 2-20m3/hr,
  • max pressure drop across packing 25mbar, across scrubber 37mbar,
  • volume 3100 liter,

(1) 630mm diameter x 7700mm total height Polypropylene column, design pressure internal -70/150 mbar @ 36/170 degrees C, 2-packed sections, 1=2.8m high (0.8 m3), 1=3.2m high (0.86 m3), Hedgehog IGEL 43 packing type, distribution plates, spray nozzle, droplet separator,

(1) Polypropylene sump tank, 1330mm long x 750mm wide x 1m high, flat top and bottom,

(1) Polypropylene venturi scrubber, manufactured by GEA Wiegand,

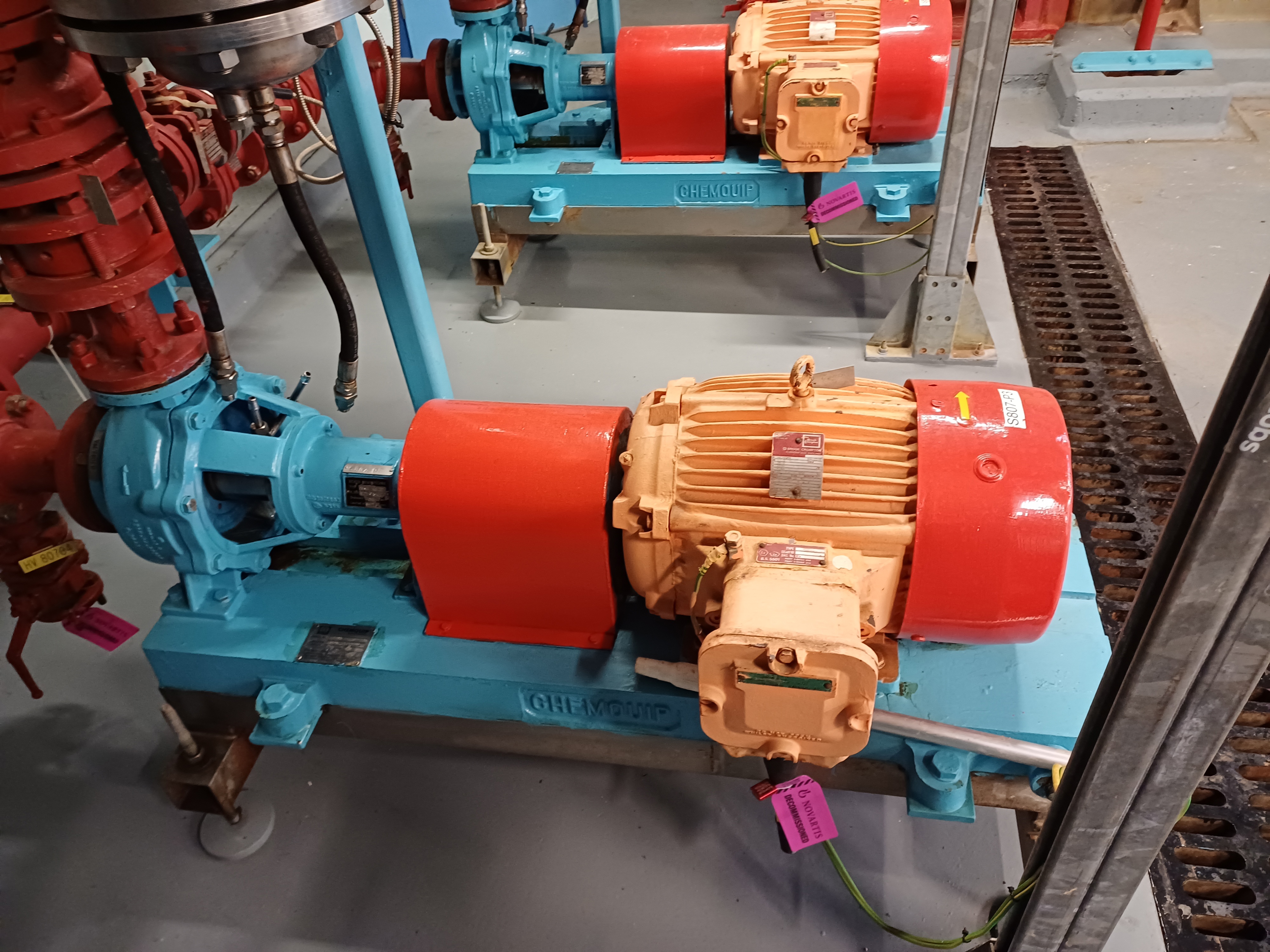

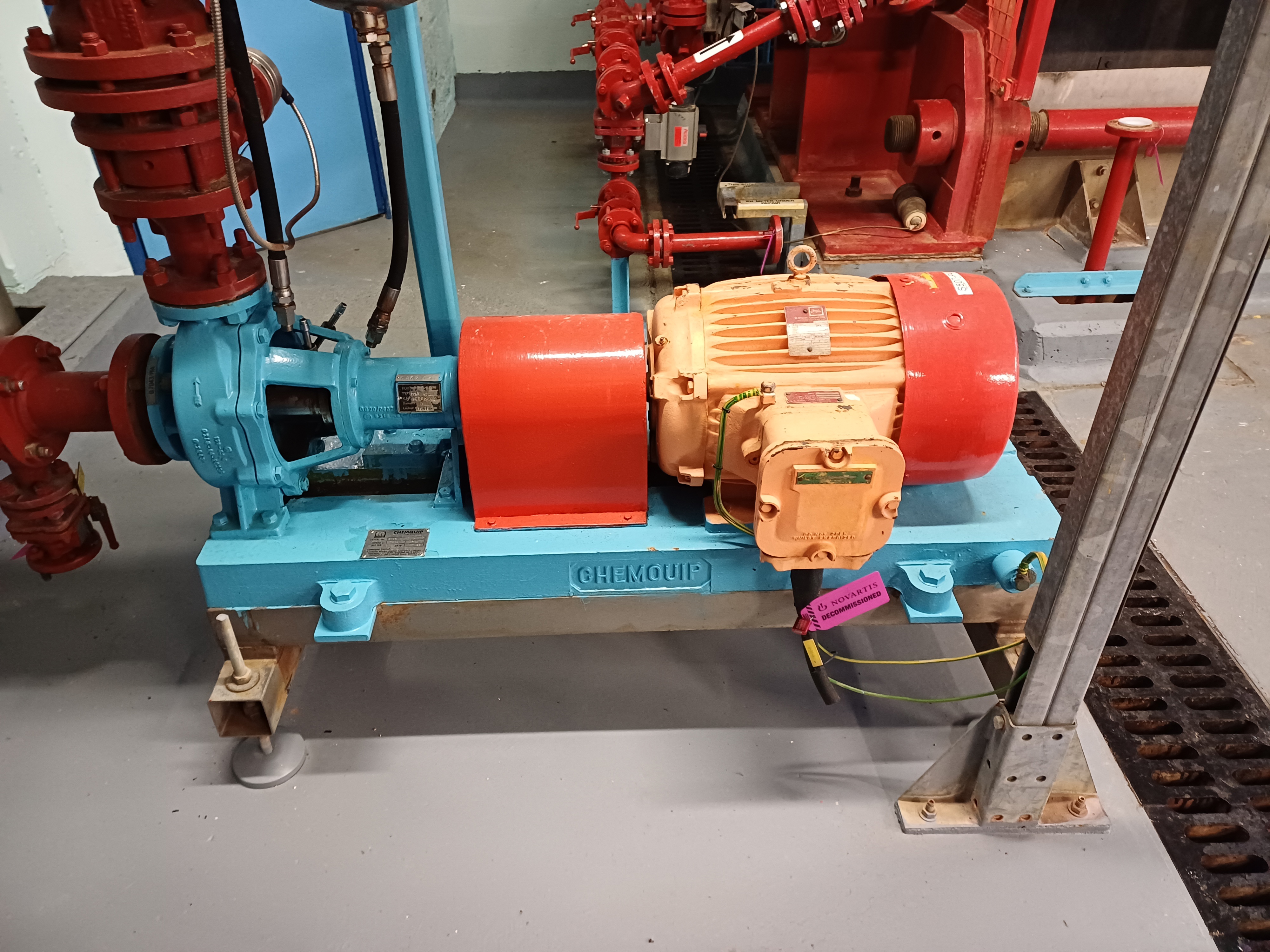

(2) 20m3/hr @ 50m head PFA lined centrifugal pump, manufactured by Richter Chemie-Technik, type PCK/F 40-200, serial #927054/2/1 & 927054/2/2, 2900 rpm, 192mm diameter impellor, mechanical seal, driven by 11kW, 3/50/415 volt 2940 rpm EEx de IIB T4 motor, mounted on a baseplate,

(1) 1.74 square meter 316 stainless steel plate heat exchanger, manufactured by APV Baker Ltd, type SR2613, serial #SR2613 10/2, design pressure both sides 6/8 barg @ 80 degrees C, (12) 316 stainless steel plates, carbon steel pressure plates and frame, design code BS5500 CAT 2 1991,
