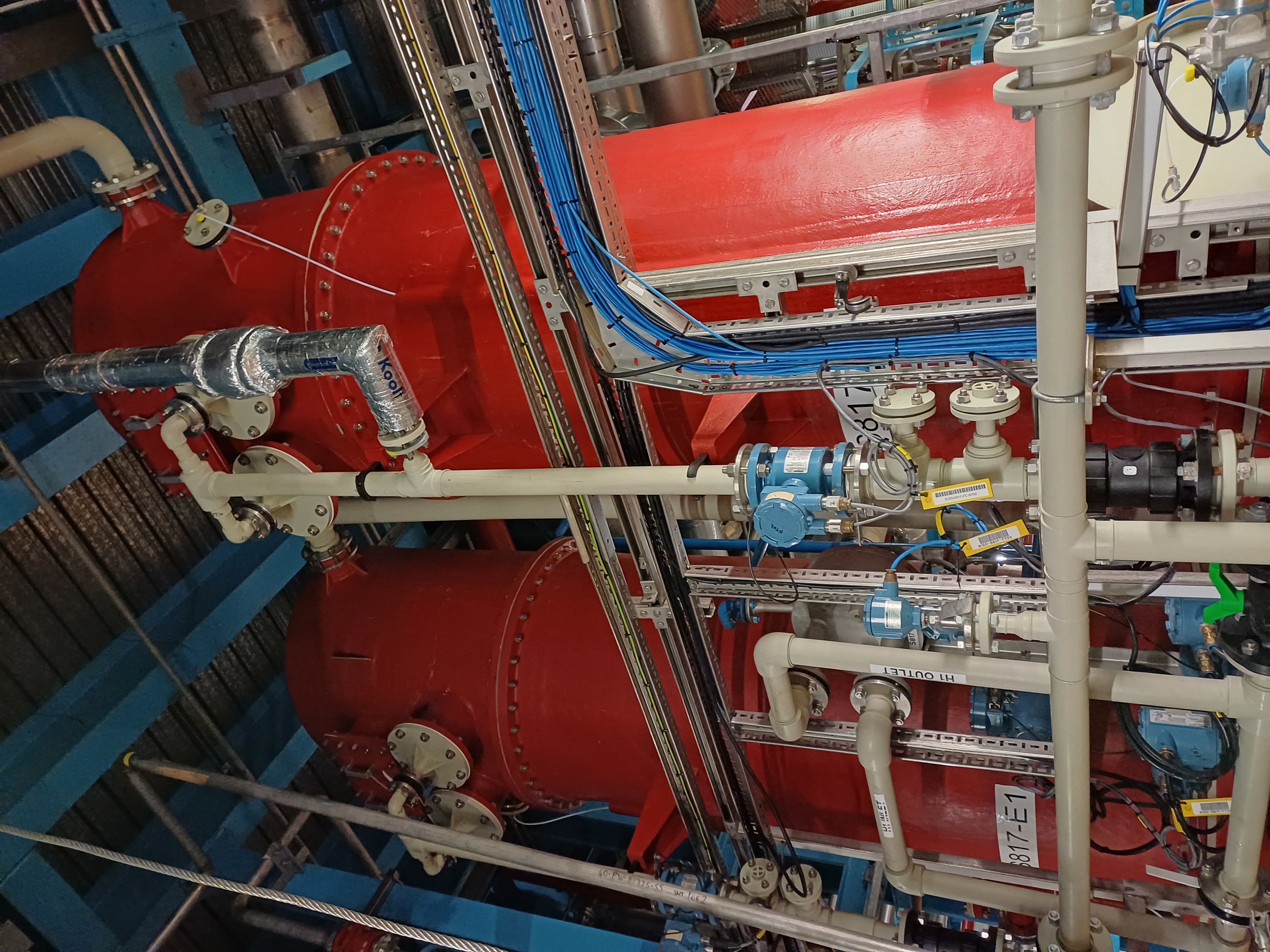

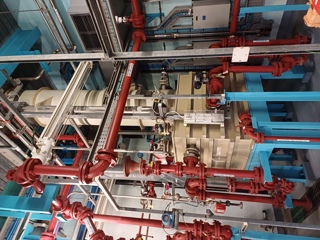

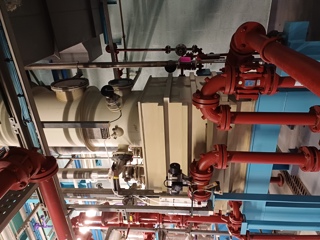

Fiberglass Azide twin column 2-stage Scrubber system - IPP# 242731

  • Fiberglass Azide twin column 2-stage Scrubber system - IPP# 242731 Fiberglass Azide twin column 2-stage Scrubber system - IPP# 242731
  • Fiberglass Azide twin column 2-stage Scrubber system - IPP# 242731 Fiberglass Azide twin column 2-stage Scrubber system - IPP# 242731
  • Fiberglass Azide twin column 2-stage Scrubber system - IPP# 242731 Fiberglass Azide twin column 2-stage Scrubber system - IPP# 242731
  • Fiberglass Azide twin column 2-stage Scrubber system - IPP# 242731 Fiberglass Azide twin column 2-stage Scrubber system - IPP# 242731
  • Fiberglass Azide twin column 2-stage Scrubber system - IPP# 242731 Fiberglass Azide twin column 2-stage Scrubber system - IPP# 242731
  • Fiberglass Azide twin column 2-stage Scrubber system - IPP# 242731 Fiberglass Azide twin column 2-stage Scrubber system - IPP# 242731
  • Fiberglass Azide twin column 2-stage Scrubber system - IPP# 242731 Fiberglass Azide twin column 2-stage Scrubber system - IPP# 242731
  • Fiberglass Azide twin column 2-stage Scrubber system - IPP# 242731
  • Fiberglass Azide twin column 2-stage Scrubber system - IPP# 242731
  • Fiberglass Azide twin column 2-stage Scrubber system - IPP# 242731
  • Fiberglass Azide twin column 2-stage Scrubber system - IPP# 242731
  • Fiberglass Azide twin column 2-stage Scrubber system - IPP# 242731
  • Fiberglass Azide twin column 2-stage Scrubber system - IPP# 242731
  • Fiberglass Azide twin column 2-stage Scrubber system - IPP# 242731
Overview
Scrubber
Plasticon
Used
Polypropylene
Capacity
138.1 m3/h (81.3 CFM)
Other Specifications
0.1 bar (1.45 psi)
50 °C (122 °F)
Yes
Lanpack
1,650 L (58.3 ft3)
Yes

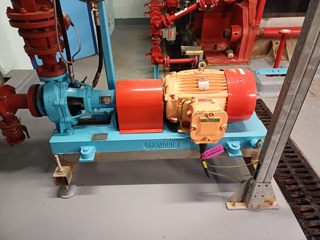

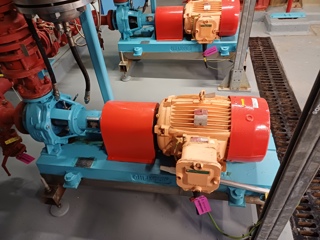

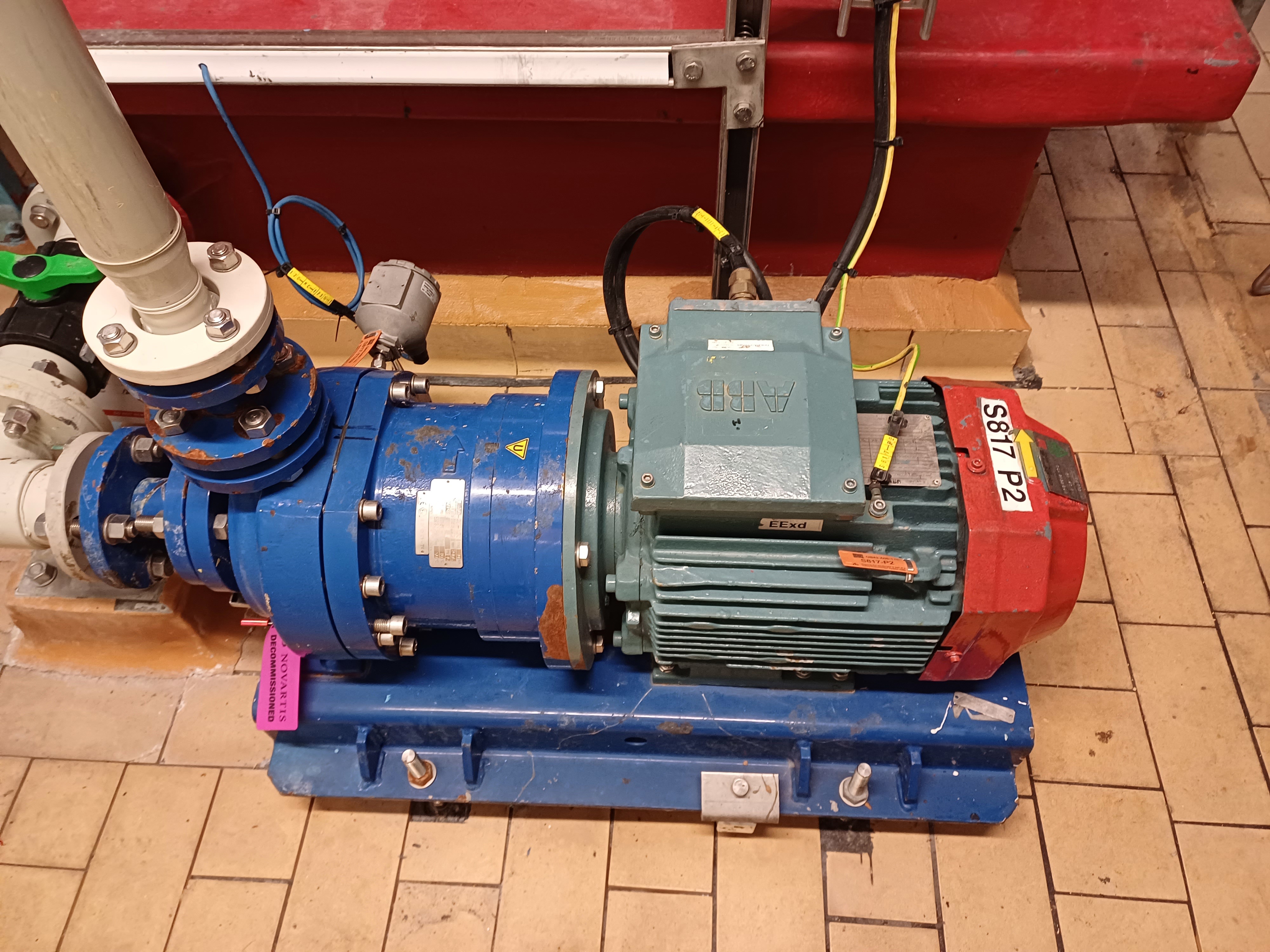

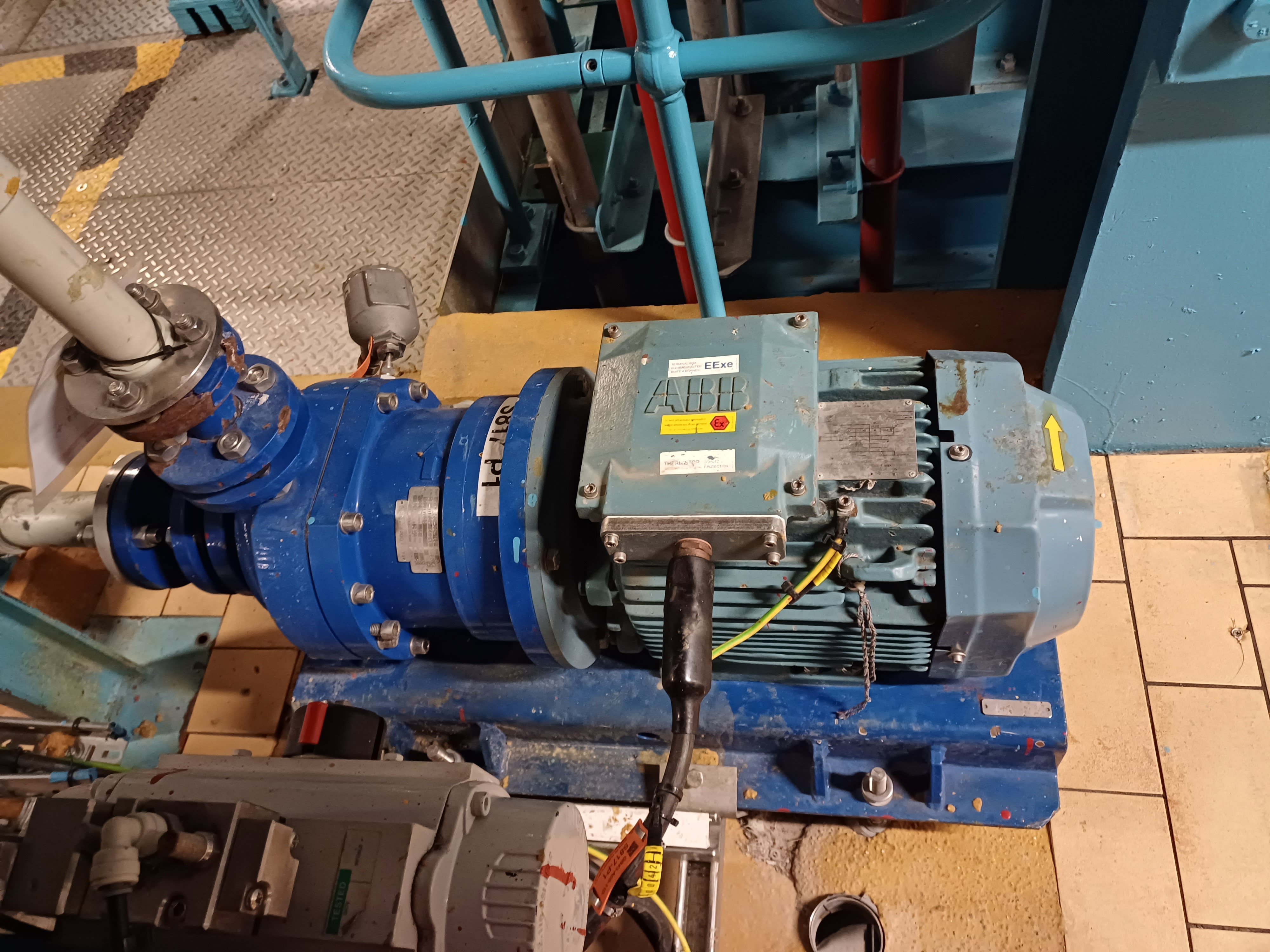

2 x 20m3/hr @ 30m head PFA lined centrifugal pump, manufactured by CP Pumpen Ag, type MKPL 50-32-160, serial #06-01729/55296 & 06-01729/55297, 161mm diameter impellor, 2930 rpm, 10/50 degrees C, driven by 7.5kW, 3/50/415 volt 2919 rpm EEx de IIB T4 ATEX motor, mounted on a baseplate,
  • built to reduce the total NOX to 200mg/m3 of total gas flow as NO2 at fan discharge
  • inlet gas flow 138.1 m3/hr
  • inlet temperature (10 - 25 degrees C) say design normal = 20 degrees C
  • liquor acidification composition 36% CO2 64% N2
  • Azide destruction composition 18% NO2 and 82% N2
  • Nitrate destruction composition 36% NO2 and 64% N2
  • an additional 180m3/hr gas flow into stage 2 tower during purging
  • an additional 66m3/hr minimum of oxidation air is added at stage 1 tower inlet
  • design code BS4994: 1987 CAT 1
  • 10780 liter capacity,
  • (2) 1m diameter x 3477m total height Polypropylene lined packed columns, manufactured by Hat International Ltd, design pressure -0.1 barg @ 50 degrees C, bolt flat top, internal spray nozzles, packing is 2 x 1.65m3 of Lanpac 3.5", 2.1m packing height

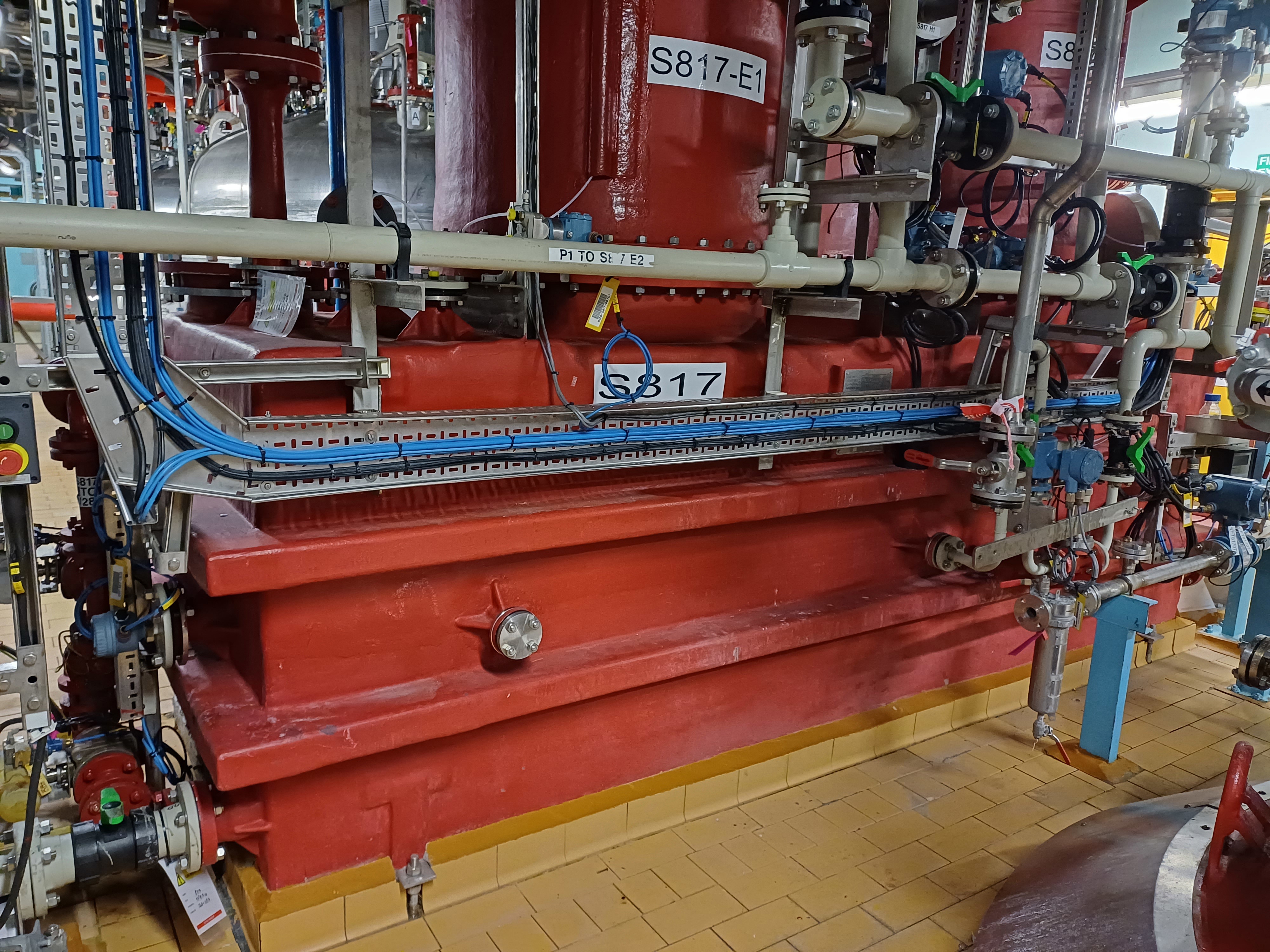

  • (1) Polypropylene lined rectangular holding tank, approx 3.8m long x 1.2m wide x 1.2m high, flat top and bottom,
  • (1) 1000 liter Epoxy vinyl Ester resin vertical caustic dosing tank, bolt dished top, weld flat bottom,

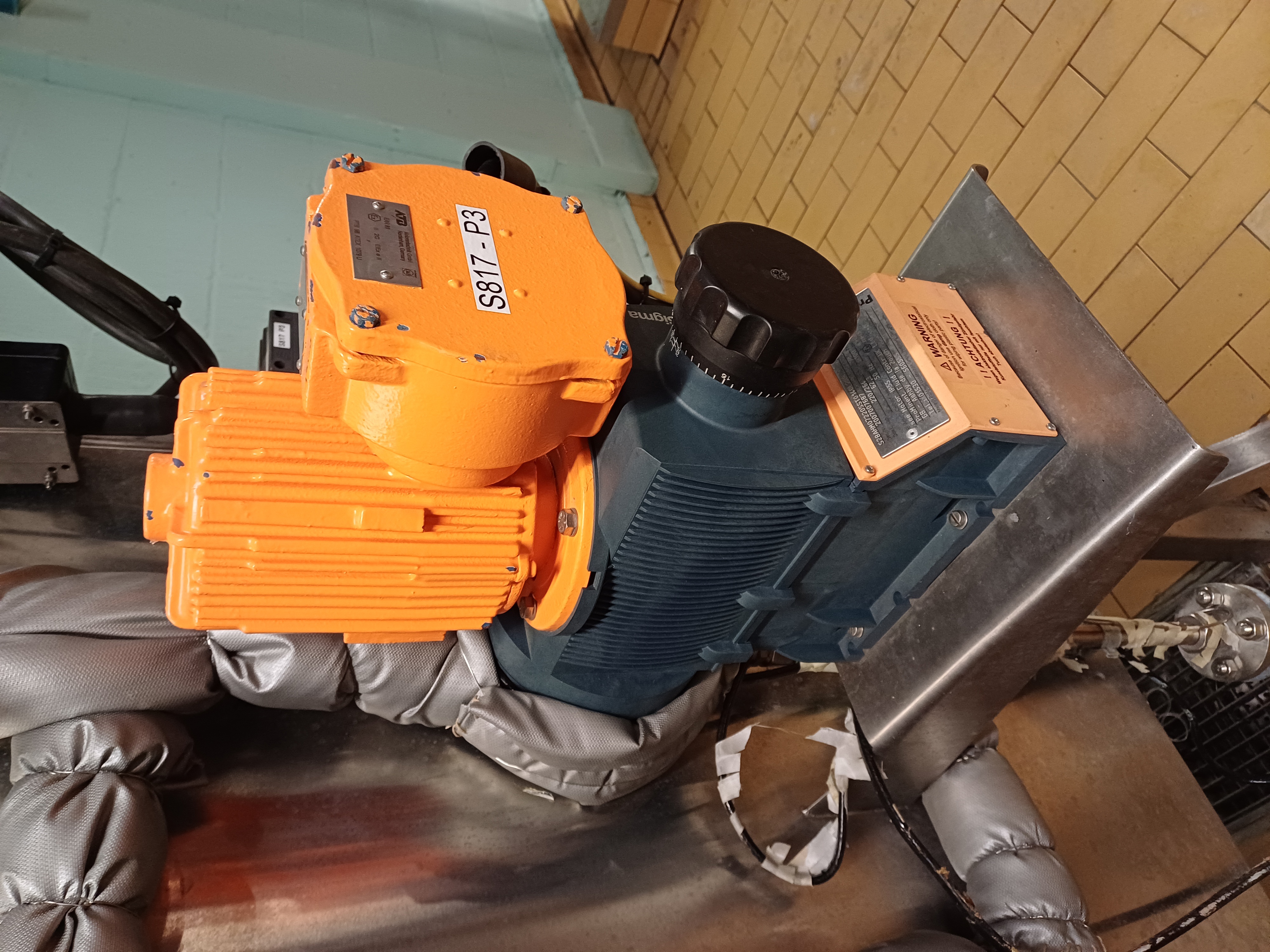

  • (1) 220/264liter capacity stainless steel dosing pump, manufactured by ProMinent Fluid Control UK Ltd, serial #2007007687, 7 bar pressure, Ex II 2GD IIC T4 x, driven by approx 0.75kW motor,

Similar Equipment

Polypropylene Max Gschwend AG Scrubber

Type: Scrubber

Manufacturer: Max Gschwend AG

Condition: Used

Material: Polypropylene

Air Flow Rate: 20 m3/h (11.8 CFM)

Height: 8,700 mm (343.3 in)

  • polypropylene scrubber system,
  • gas flow 500m3/hr,
  • IF gas leakage 1500m3/hr,
  • flow rate 2-20m3/hr,
  • max pressure drop across packing 25mbar, across scrubber 37mbar,
  • volume 3100 liter,

(1) 630mm diameter x 7700mm total height Polypropylene column, design pressure internal -70/150 mbar @ 36/170 degrees C, 2-packed sections, 1=2.8m high (0.8 m3), 1=3.2m high (0.86 m3), Hedgehog IGEL 43 packing type, distribution plates, spray nozzle, droplet separator,

(1) Polypropylene sump tank, 1330mm long x 750mm wide x 1m high, flat top and bottom,

(1) Polypropylene venturi scrubber, manufactured by GEA Wiegand,

(2) 20m3/hr @ 50m head PFA lined centrifugal pump, manufactured by Richter Chemie-Technik, type PCK/F 40-200, serial #927054/2/1 & 927054/2/2, 2900 rpm, 192mm diameter impellor, mechanical seal, driven by 11kW, 3/50/415 volt 2940 rpm EEx de IIB T4 motor, mounted on a baseplate,

(1) 1.74 square meter 316 stainless steel plate heat exchanger, manufactured by APV Baker Ltd, type SR2613, serial #SR2613 10/2, design pressure both sides 6/8 barg @ 80 degrees C, (12) 316 stainless steel plates, carbon steel pressure plates and frame, design code BS5500 CAT 2 1991,

Width: 630 m (2,050 ft). Pressure: 0.15 bar (2.2 psi). Temperature: 170 °C (338 °F). Packing: Yes. Packing Type: Hedgehog. Packing Amount: 1,650 L (58.6 ft3).
